Descrizione e collegamenti – ABUS FUBE50060 Secvest 2WAY Wireless Key Switch User Manual
Page 62
62
6. Descrizione e collegamenti
1
Apertura per il fissaggio a parete
2
Ingresso cavo
3
Supporto scheda
4
Viti di fissaggio per la scheda
5
Semicilindro
6
Vite di fissaggio
7
Supporto batteria
8
Morsettiera per collegamento a 12 Volt
9
Interruttore antisabotaggio a parete
10 interruttore antisabotaggio a soffitto
11 tasto sinistro
12 tasto destro
13 LED verde sinistro
14 LED rosso destro
15 Tasto programmazione
16 Indicatore LED a 7 segmenti

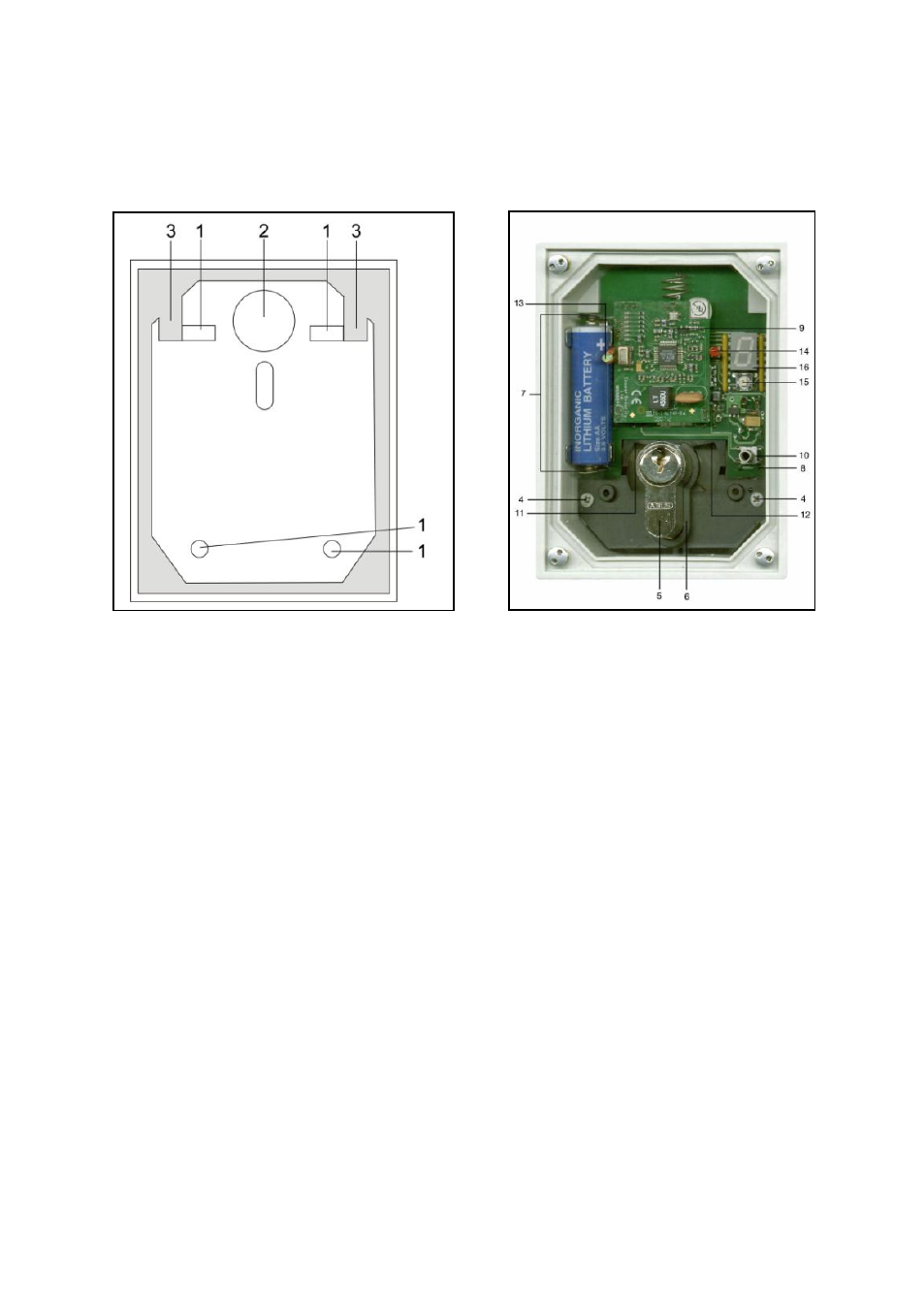

Fig.1 Alloggiamento senza scheda Fig.2 alloggiamento aperto (con scheda)
