Page 6
6
6. Beschreibung und Anschlüsse
1
Durchbruch für Wandbefestigung
2
Kabeleinführung
3
Platinenhalter
4
Befestigungsschraube für Platine
5
Halbzylinder
6
Stulpschraube
7
Batteriehalter
8
Klemmleiste für 12 Volt Anschluss (Platinenrückseite)
9
Wandsabotageschalter (Platinenrückseite)
10 Deckelsabotageschalter
11 linke Taste
12 rechte Taste
13 linke grüne LED
14 rechte rote LED
15 Programmiertaste
16 7-Segment LED-Anzeige

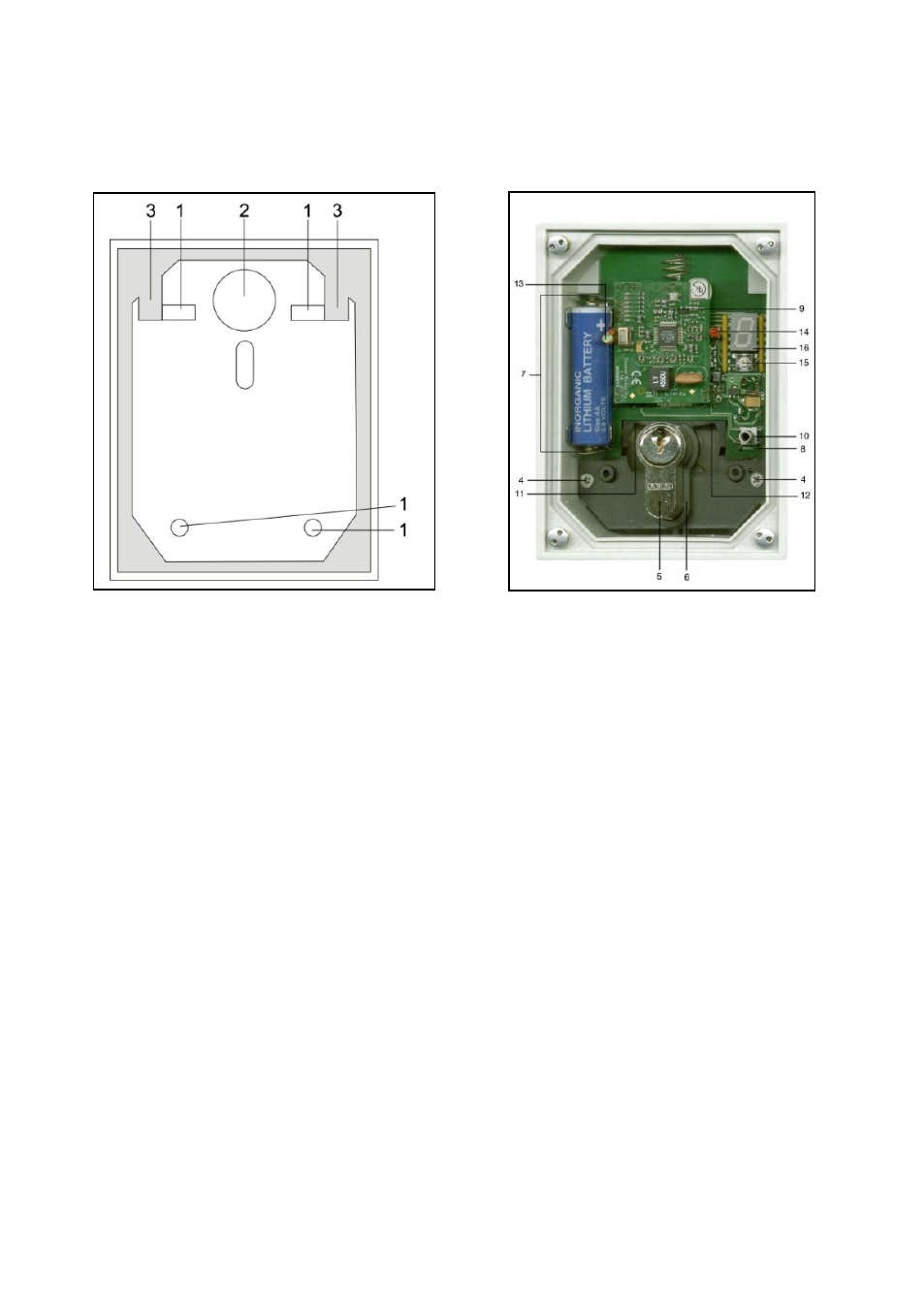

Abb.1 Gehäuse ohne Platine Abb.2 Gehäuse offen mit Platine
