ABUS AZ4230 Terxon LX 8-zone Wired Extension User Manual
Page 3
3
3.

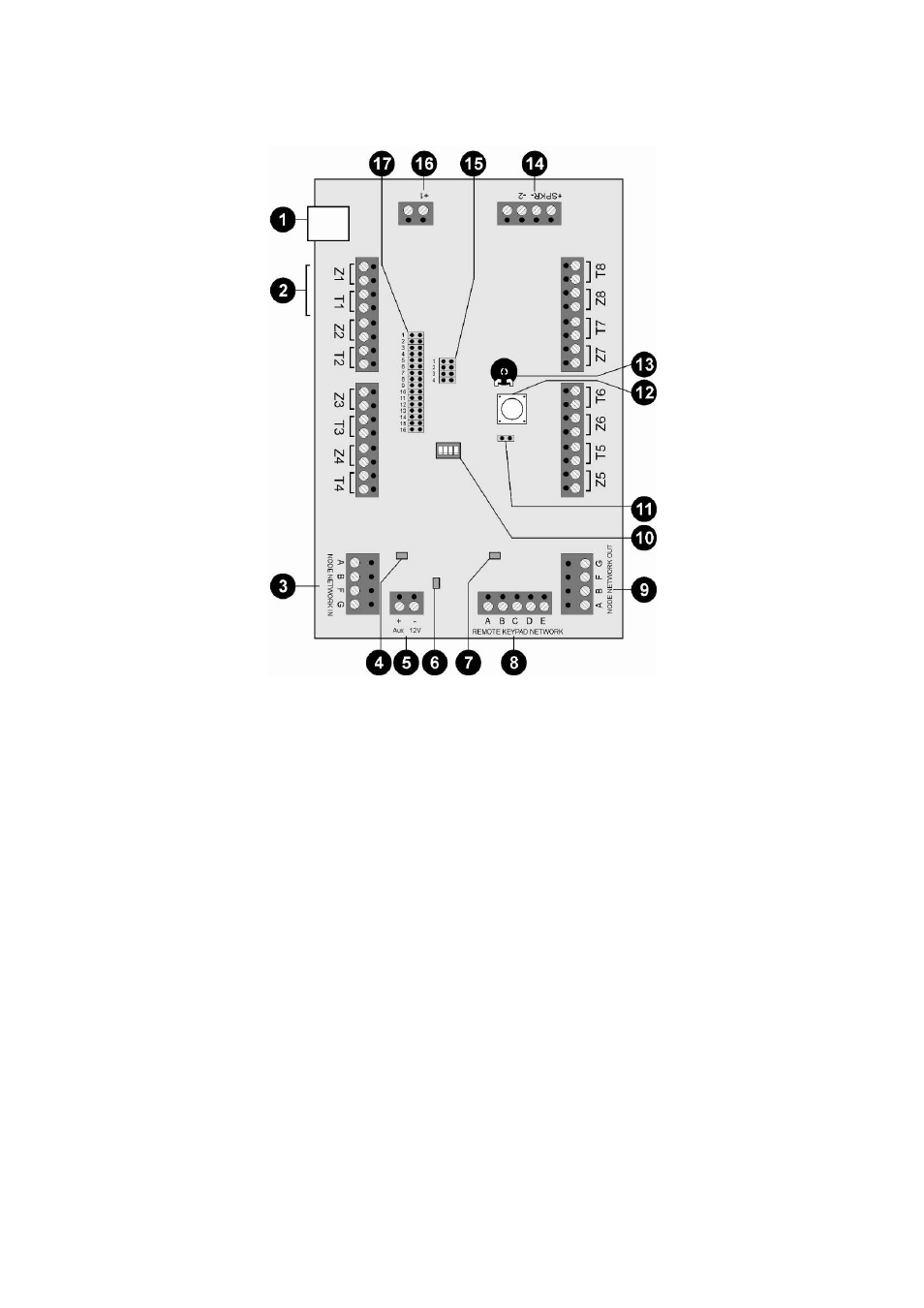

Komponenten und Verdrahtung
1.) Nicht verwendet
2.) Zonenverdrahtung
Jede Zone kann unterschiedlich verdrahtet werden (siehe
unten). Die Kontakte der Melder sind üblicherweise NC
(normal geschlossen); falls Sie das Verhalten NO (normal
offen) wünschen, müssen Sie die Zonen invertieren.
Hinweis: Falls die Spannungsversorgung des Melders über
die Erweiterung laufen soll, sind zwei zusätzliche Leitungen
für die Verbindungen zu den Anschlüssen A (+12 V DC)
und B (0V) notwendig.
