ABUS AZ4230 Terxon LX 8-zone Wired Extension User Manual
Page 28
28

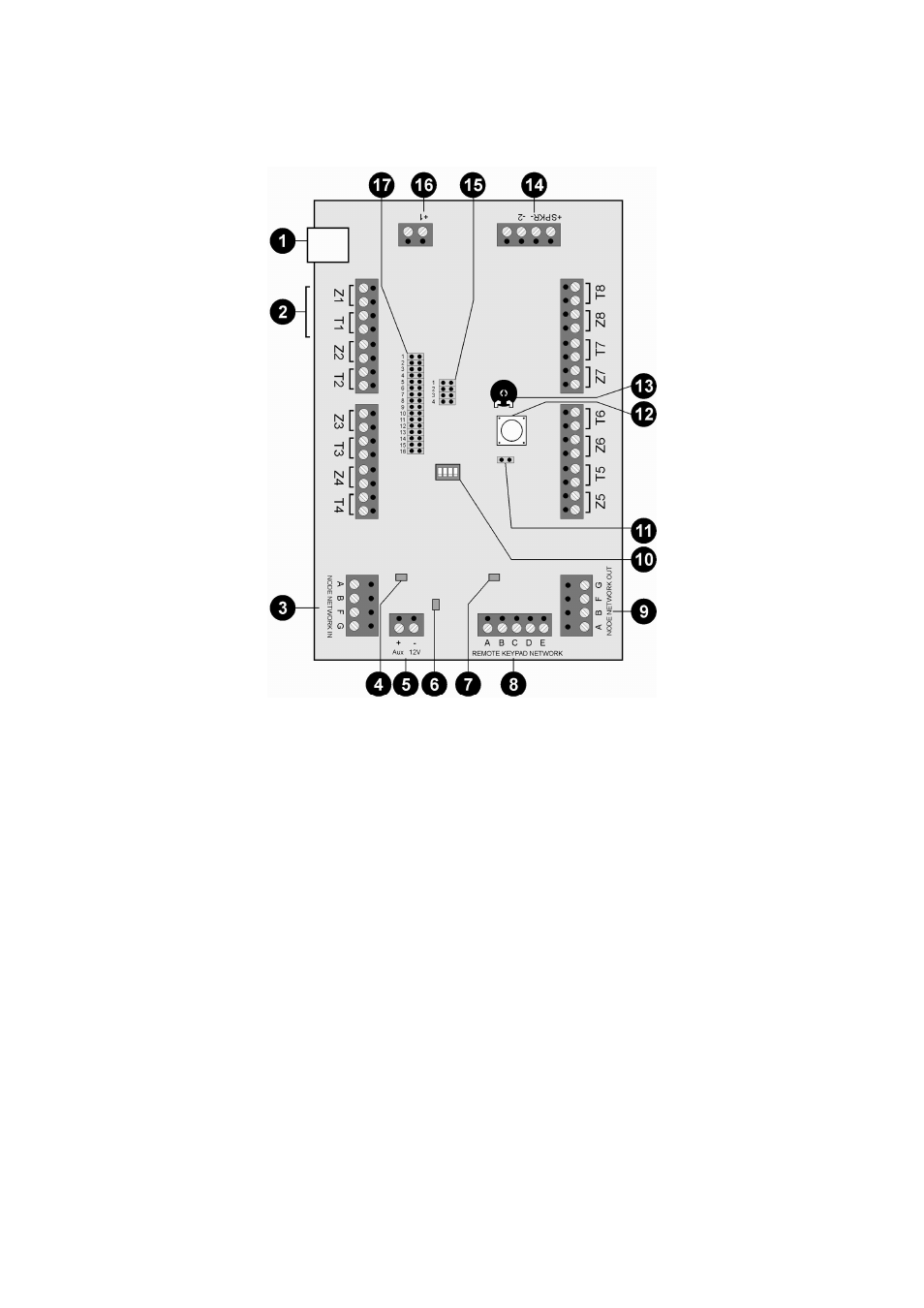

3.
Descrizione dei componenti e della
programmazione
1.) Non utilizzato
2.) Cablaggio zone
Ciascuna zona può essere cablata in modo diverso (vedere
sotto). I contatti dei rilevatori sono normalmente di tipo NC
(normalmente chiuso); se si desidera avere NO
(normalmente aperto) è necessario invertire le zone.
Nota: Se l'alimentazione della tensione del rilevatore deve
passare attraverso il modulo di ampliamento, sono
necessarie due linee supplementari per i collegamenti A
(+12V DC) e B (0V).
