ABUS AZ4230 Terxon LX 8-zone Wired Extension User Manual
Page 18
18
3.

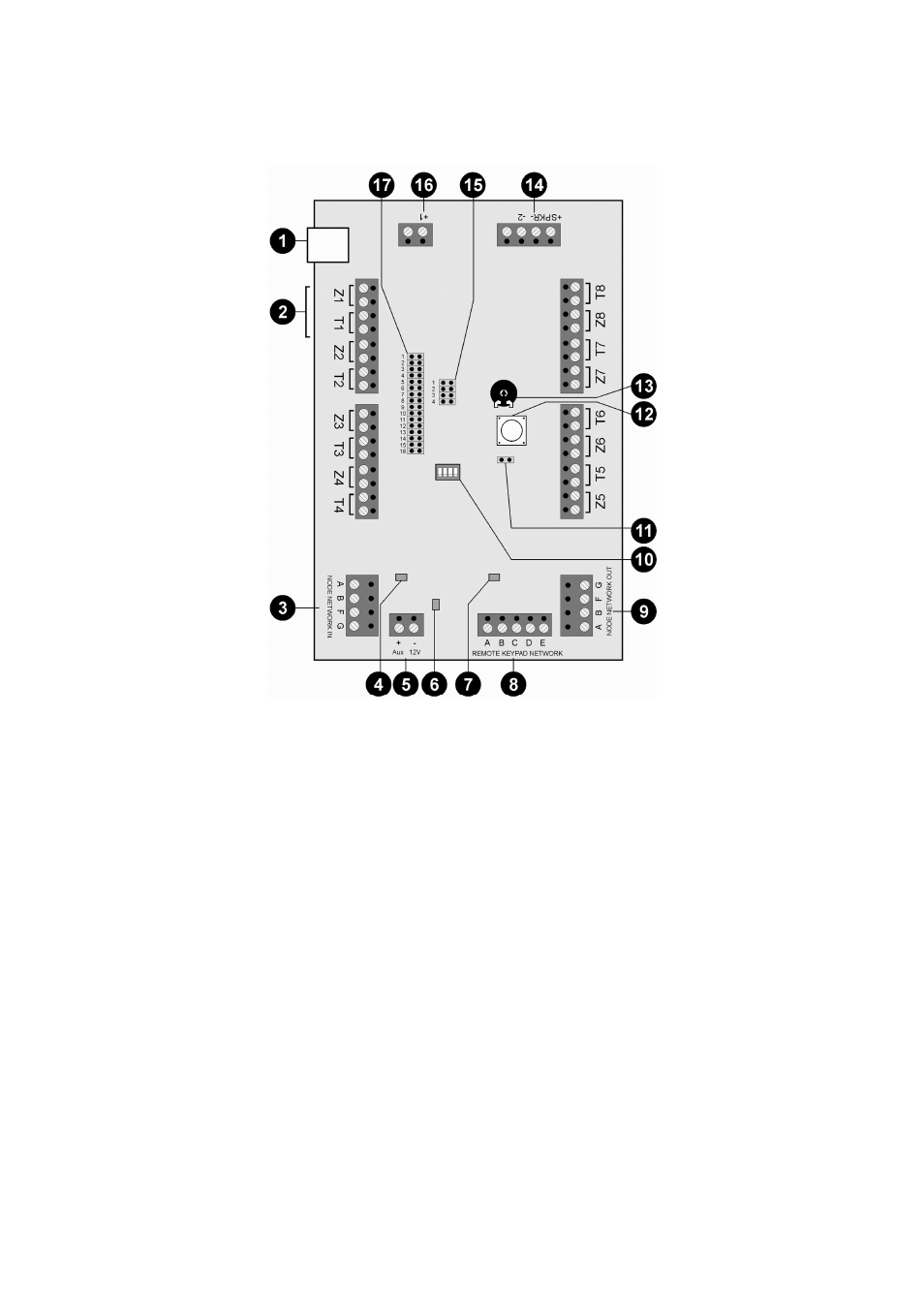

Beschrijving van de componenten en
programmering
1.) Niet in gebruik
2.) Zonebedrading
Elke zone kan verschillend worden bedraad (zie hieronder).
De contacten van de melders zijn normaal gesproken NC
(normaal gesloten); als u de instelling NO (normaal open)
wilt, moet u de overeenkomstige zones omkeren.
Opmerking: Als de spanningsvoeding van de melder via
het bedieningselement moet lopen, zijn er twee extra
leidingen voor de verbindingen naar de aansluitingen A
(+12 V DC) en B (0V) nodig.
