ABUS AZ4230 Terxon LX 8-zone Wired Extension User Manual
Page 23
23

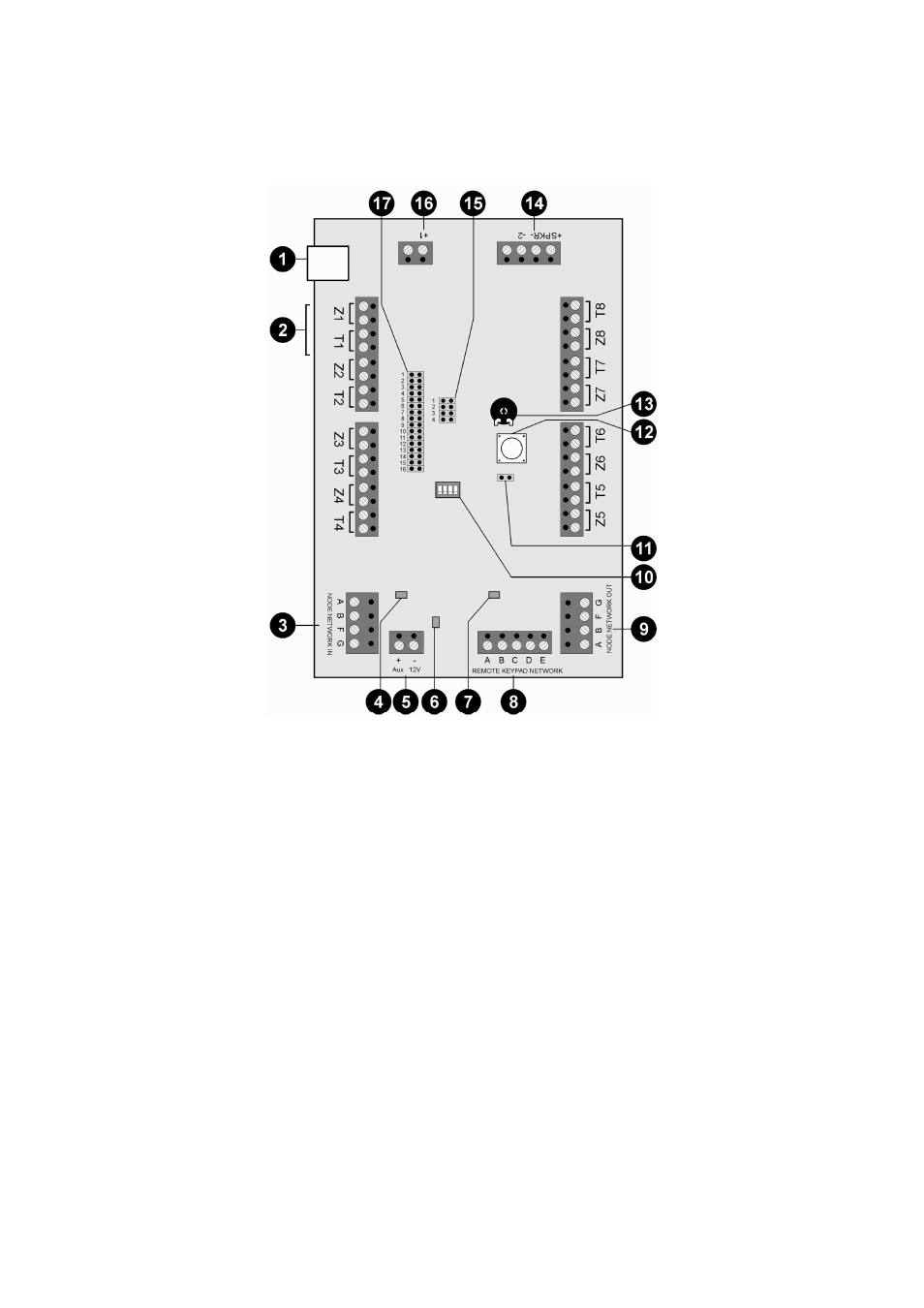

3.
Beskrivelse af komponenterne og
programmeringen
1.) Ikke anvendt
2.) Ledningsføring for de enkelte zoner
Ledningsføringen for hver zone kan udføres forskelligt (se
nedenfor). Meldernes kontakter er sædvanligvist NC
(normalt sluttet); hvis du ønsker adfærden NO (normalt
brudt), skal du invertere zonerne.
Bemærk: Hvis melderens spændingsforsyning skal køre
over udvidelsen, er det nødvendigt med to ekstra ledninger
for forbindelserne til tilslutningerne A (+12 V DC) og B (0 V).
