8
Setup and Operation
The console will need to be setup for proper alarm
operation.

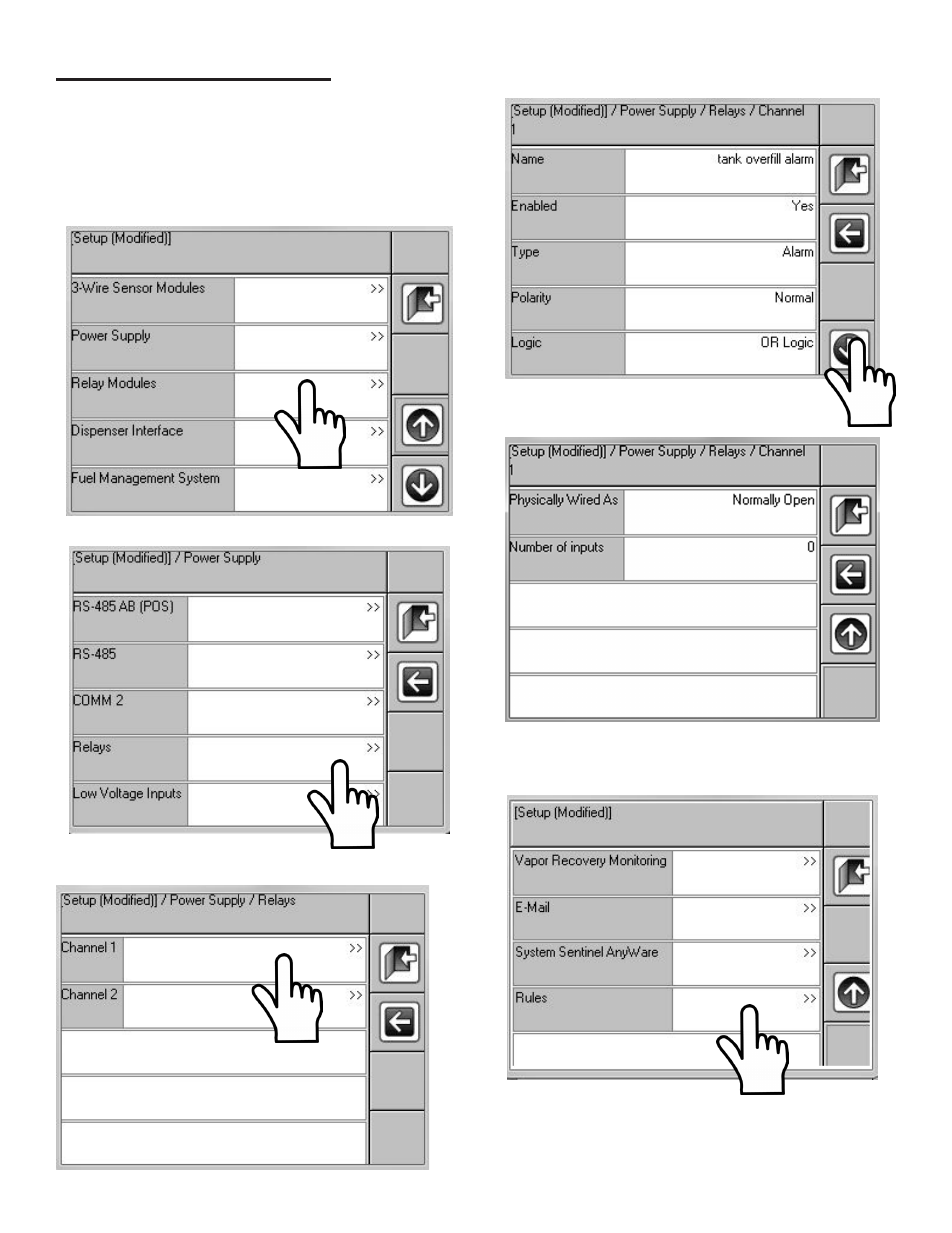

The steps below show setup via the console touch-screen.
The steps would be the same if logged onto the console
via computer.
Access Setup / Power Supply Module
Select Relays
Select the channel that the TS-RK is
wired to. Refer to the wiring schematics.
The screens below show Channel 1 set up to alarm on a
tank overfill alarm.
Setting up Alarm Rules
Navigate back to the setup screen and select rules.
