6
Getting Started
Connect the internet and then the power wire from the
power adapter to the power connection socket.
There is no turn on / off button. As soon as you connect
TS-EPS to the power line, the device will be on. During
the reboot process, the lights of the LEDs (STATUS,
ETHERNET and SERIAL PORT 1) of the TS-EPS change
to show green when connected. If the TS-EPS does not
show the STATUS as green after 1 minute, contact FFS
Technical support (800-984-6266).
Setup Communication Parameters
By using the Port Server Utilities®, find the TS-EPS
connected to internet:

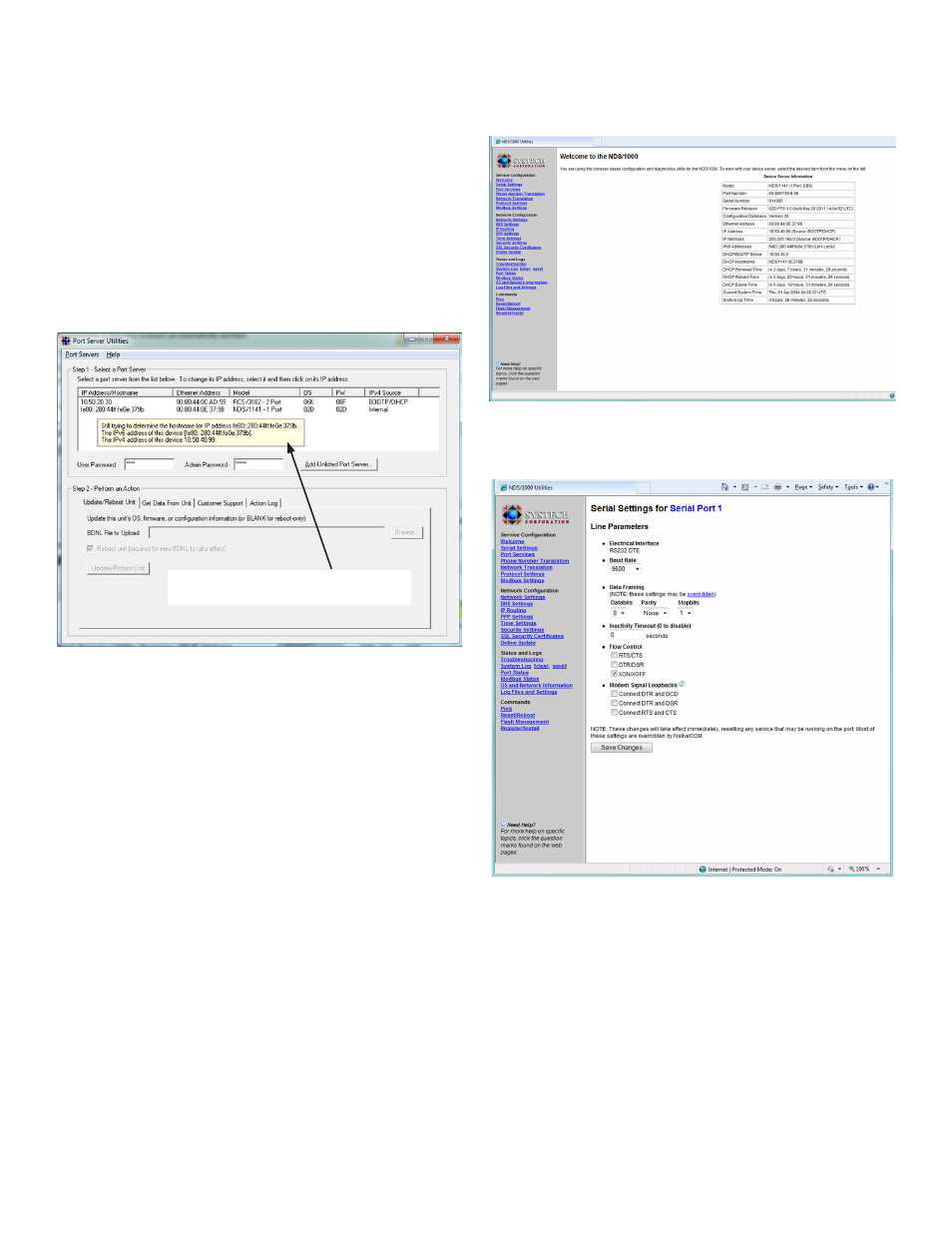

Figure 6: Port Server Utility Screen: iPV4 and iPV6 Values
Ask your internet provider to reserve an IP address to your
TS-EPS. If no address is reserved for the TS-EPS, TS-
EPS will obtain one that is available from the DHCP server.
By using the IP address assigned from your service
provider or using the one that TS-EPS obtained, launch a
browser and enter this IP address as a URL. You should
see a welcome screen that describes the unit.
Figure 7: TS-EPS System Welcome Screen
Click on Serial Settings on the side bar to bring up the
following screen.
Figure 8: Serial Setting Screen
Here, you can set the communication parameters for your
serial communication to the tank gauge.
Hover the mouse pointer in the window to
bring up the IPv6 and IPv4 message box.
