INCON equipment is designed to be
installed in association with volatile
hydrocarbon liquids such as gasoline
and diesel fuel.
Installing or working on this equipment means
working in an environment in which these highly
flammable liquids may be present. Working in such
a hazardous environment presents a risk of severe
injury or death if these instructions and standard
industry practices are not followed. Read and follow
all instructions thoroughly before installing or working
on this, or any other related, equipment.
Note: The TSP-DMS is for connection to INCON
T5 series consoles only.
The Discriminating Magnetostrictive Sensor TSP-DMS
is designed to detect water or fuel in a sump or a tank’s
interstitial space, and give notification through the fuel
management console.
The sensor also has anti-tamper capability that will
give notification through the console if it is lifted from its
installed position.
Magnetostrictive Sensor Installation
The TSP-DMS comes supplied with a model 283-0205
Unistrut 2" pipe clamp assembly. If the sump has a Unistrut
already installed, mount the 2" clamp to the Unistrut and
slide the DMS sensor so the wire is at the top, and the
bottom is tight against the bottom of the sump.
Note: Be SURE to remove the factory-installed tie
wrap before installation.

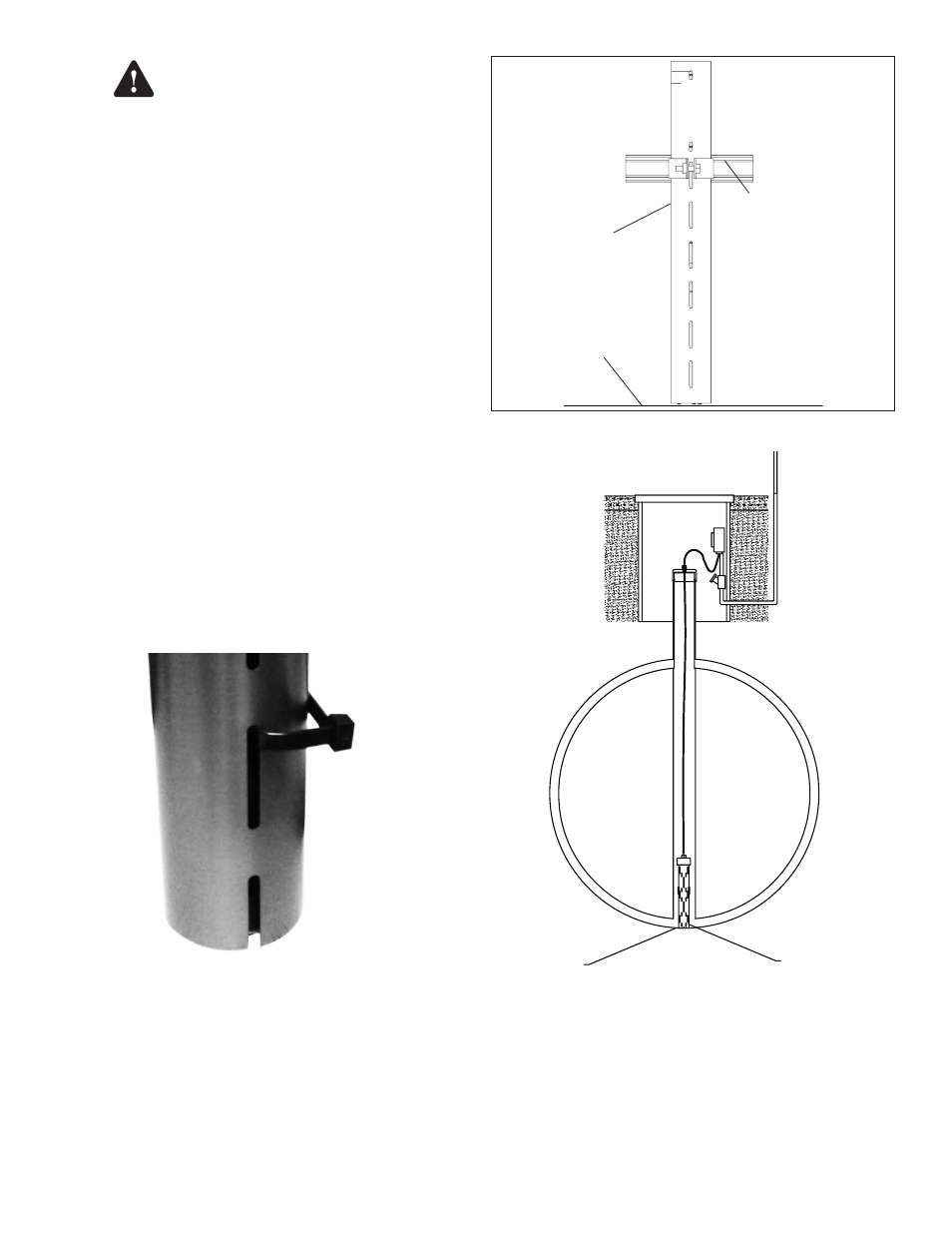

Figure 1: Tie Wrap to remove
TSP-DMS Sump Installation
If the sensor is mounted in a sump that does not have a
Unistrut channel installed, order part number TSP-KS,
and follow installation instructions. Make sure that the
sensor is touching the bottom of the sump before and after
tightening the mounting bracket.
Figure 2. TSP-DMS Sensor Installed
TSP-DMS Tank Interstitial Installation
TSP-DMS
SENSOR
Tank
Bottom
Figure 3: Tank Interstitial Installation
Inspect the Tank Interstitial riser and confirm the diameter
is 3" or larger. To make sure the Sensor is installed at the
Bottom of the interstitial shaft you will need to make a mark
on the sensor wire.
Unistrut Channel
from kit TSP-KS
TSP-DMS
Sump Bottom
Warning
