SW HDMI LC • Remote Communication and Control 14
Error Responses
If the switcher is unable to execute a command it receives because the command is invalid
or contains invalid parameters, the switcher returns an error response to the host. Error
response codes and their descriptions are as follows:
E01 – Invalid input channel number (out of range)
E06 – Invalid input selection during auto-input switching
E10 – Invalid command
E13 – Invalid parameter (out of range)
Using the Command/response Table
The command/response table on the following pages lists valid ASCII and hexadecimal
command codes, the responses from the switcher to the host, and a description of the
command function or the results of executing the command.
The ASCII to HEX conversion table below is for use with the command/response table.
ASCII to Hex Conversion Table
•
Space

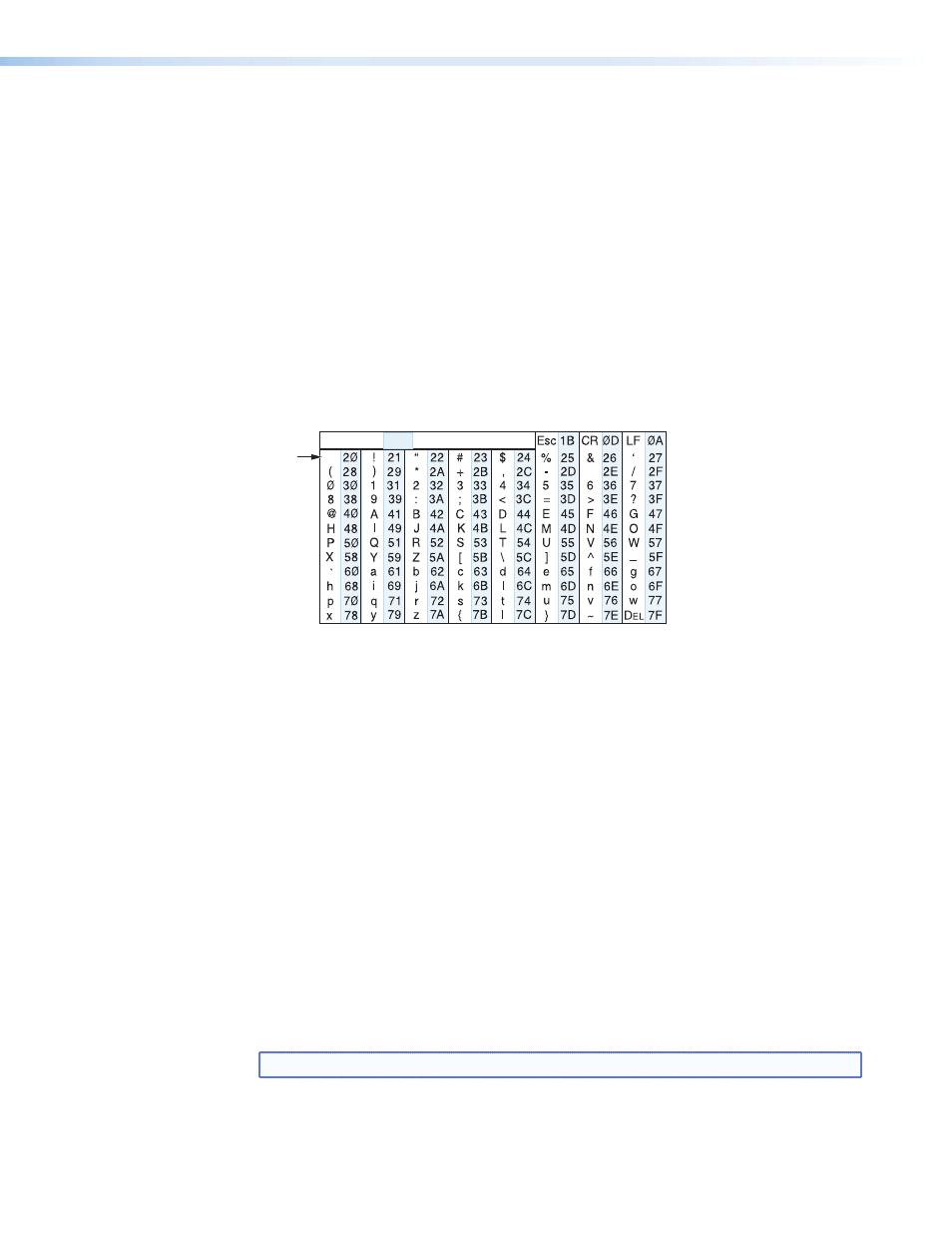

Figure 12. ASCII to Hex conversion table
Symbol Definitions
]
= CR/LF (carriage return/line feed) (hex 0D 0A)
}
= Soft carriage return (no line feed)
•
= Space
E
= Escape key
X!
= Input number
0 through the maximum number of inputs on the unit
0 = deselect (mute) all inputs
X@
= On and Off, High and Low, Enable and Disable
0 = Off/low EQ level/disable
1 = On/high EQ level/enable
X#
= Signal status
0 = no signal
1 = source detected (+5 V present)
2 = signal detected (TMDS clock)
X$
= Switch mode
1 = normal switch mode
2 = auto-input switch mode
X%
= Firmware version (to the second decimal place)
NOTE: Unless otherwise indicated, commands are not case sensitive.
