SW HDMI LC • Operation 11
Using the Optional IR 102 Remote Control
The optional hand-held IR 102 Remote Control (part #70-224-10) lets you remotely
perform functions that are also available through the front panel buttons and SIS
commands.
The IR receiver port on the front panel is located to the right of the Auto Switch LED. It
receives signals from the remote control if they are sent from within a 40-degree arc to the
right or left of direct line of sight between the remote control and the switcher receiver,
and from no more than 30 feet (9 m) away. (See the illustration below.)
SW4 HDMI LC
HDMI SWITCHER
1 2 3
SIGNAL
IR 4
1 2 3 4
AUTO
SWITCH
ACTIVE
SW HDMI LC Switcher
40 40
30’
Maximum
IR 102 Remote Control
Channel
IR 102
0
1 2 3 4
5 6 7 8
9 +10
Universal Remote

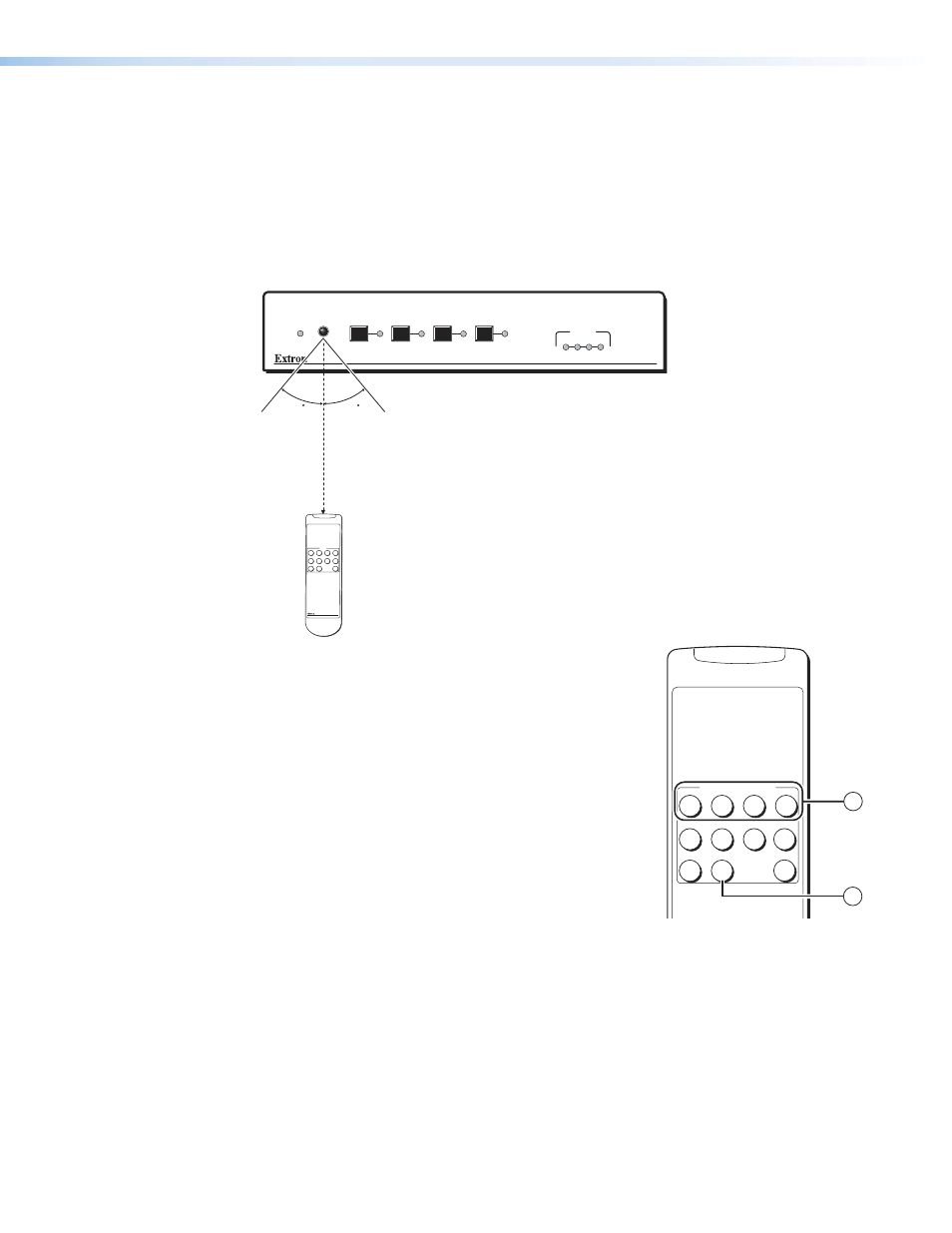

Figure 10. Area for Remote Signal Reception
Remote control buttons
On the IR 102 remote control, buttons 1 and 2 or 1 through
4 (depending on your model) select inputs. Button 0 mutes
(deselects) all inputs.
a Input Selection buttons — Press one of these buttons
(1 through 4) to select an input.
b Input Mute button (0) — Press this button to deselect
all inputs, effectively muting the output.
Locking IR remote access
The SW HDMI LC can be set to lock out users from using the IR 102 Remote Control to
control the switcher. Remote access can be enabled and disabled via SIS commands (see
“
Front panel IR receiver disable ” in the Command/response table for SIS commands in
the “ Remote Communication and Control ” section). When remote access is set to Off,
all switcher controls remain available through the SW HDMI LC front panel.
