2-3 CrossPoint 450 Plus and MAV Plus Switchers • Installation
Mounting instructions
The matrix switcher BMEs are rack-mountable, 6U (sync and video BMEs) or 7U
(audio BMEs) high metal enclosures with 19-inch rack ears. If desired, rack mount
the switcher BME as follows:
1 . Insert the switcher BME into the rack, aligning the holes in the mounting
bracket with those in the rack.
2 . Secure the switcher BME to the rack using the supplied bolts.
Rear Panel Cabling and Features

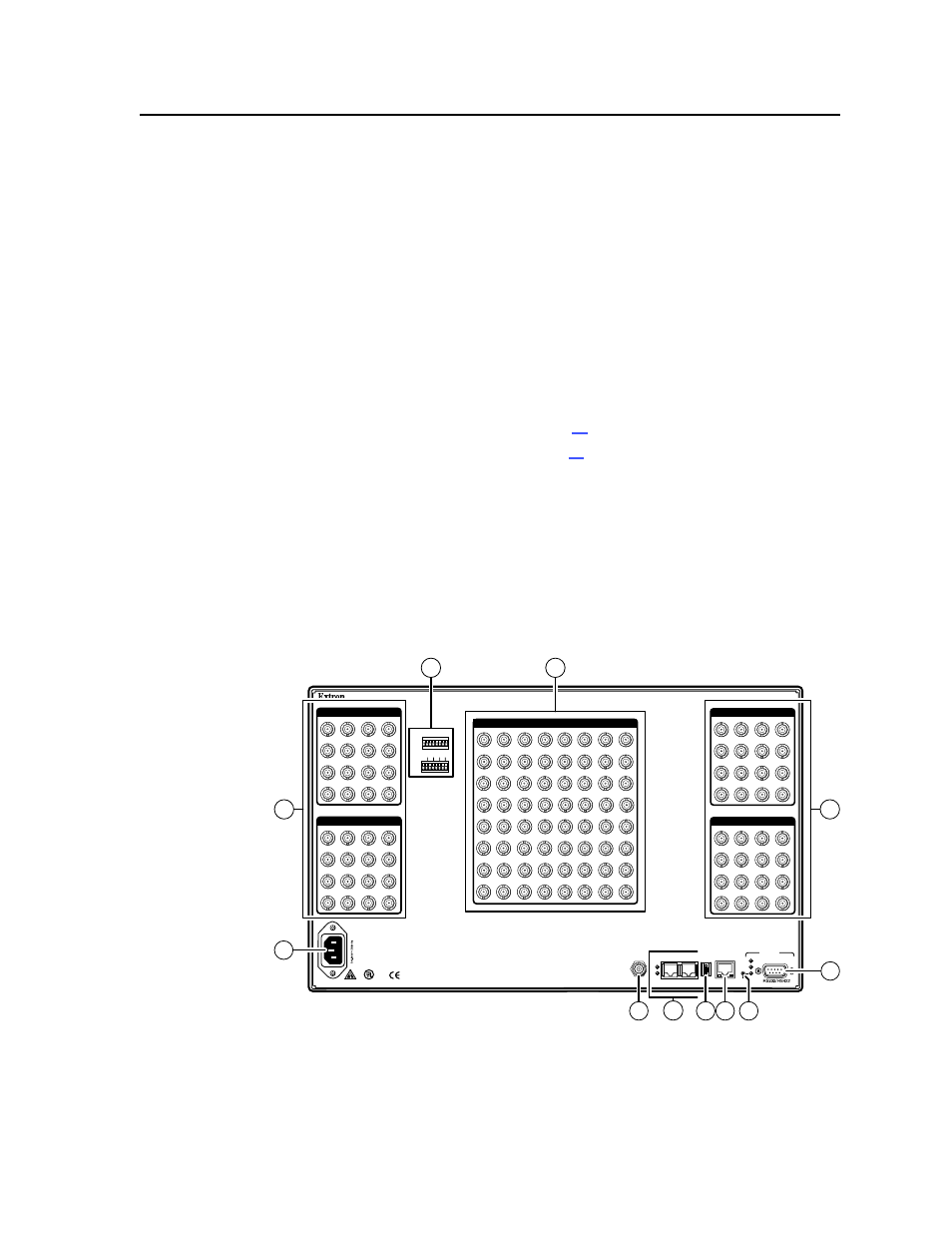

All connectors for all switcher BMEs are on the rear panel. Figure 2-1 shows a
CrossPoint 450 Plus 6464 Sync BME, which has a feature set similar to all of the
features of all of the video and sync switcher BMEs with the following exceptions:
• The Sync Termination DIP switches ( c ) are found on the sync BME only.
• The External Sync BNC connection ( k ) is found on the MAV Plus and
CrossPoint 450 Plus video BMEs only.
Figure 2-2 shows a MAV Plus 6464 stereo audio BME .
C Use electrostatic discharge precautions (be electrically grounded)
when making connections. Electrostatic discharge (ESD) can damage
equipment, even if you cannot feel, see, or hear it.
C Remove system power before making all connections.
N The 3248, 3264, 4832, 4848, 4864, 6432, 6448 matrix sizes are housed in the
same size enclosure, but have fewer input and output connectors to accommodate
their smaller matrix sizes.
