Ethernet, Cabling and rj-45 connector wiring, Ethernet -10 – Extron Electronics MAV Plus series Large Scale User Guide User Manual

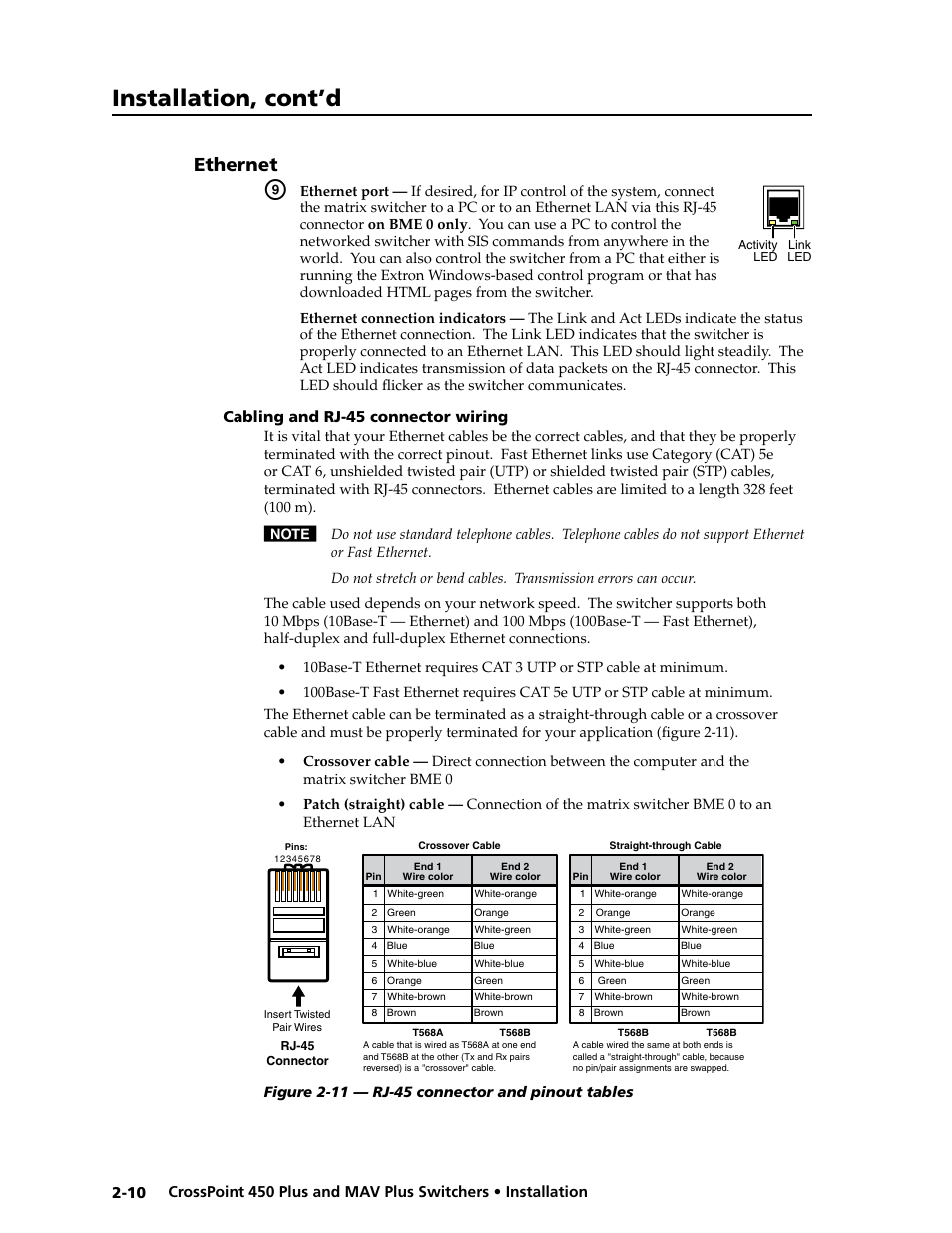

Page 28: Cabling.and.rj-45.connector.wiring -10, Installation, cont’d
