Extron Electronics SCP 104 Series User Guide User Manual
Page 17

1
ON
23
4
J1
J4
J6
SW12
SCP 226 Rotated Rear Panel
To Computer or
Control System
RS-232 Port
9-pin HD
Connector
Ground
Receive
Transmit
Tx
3
Transmit (Tx)
Receive (Rx) 2
Ground (G) 5
Rx
G

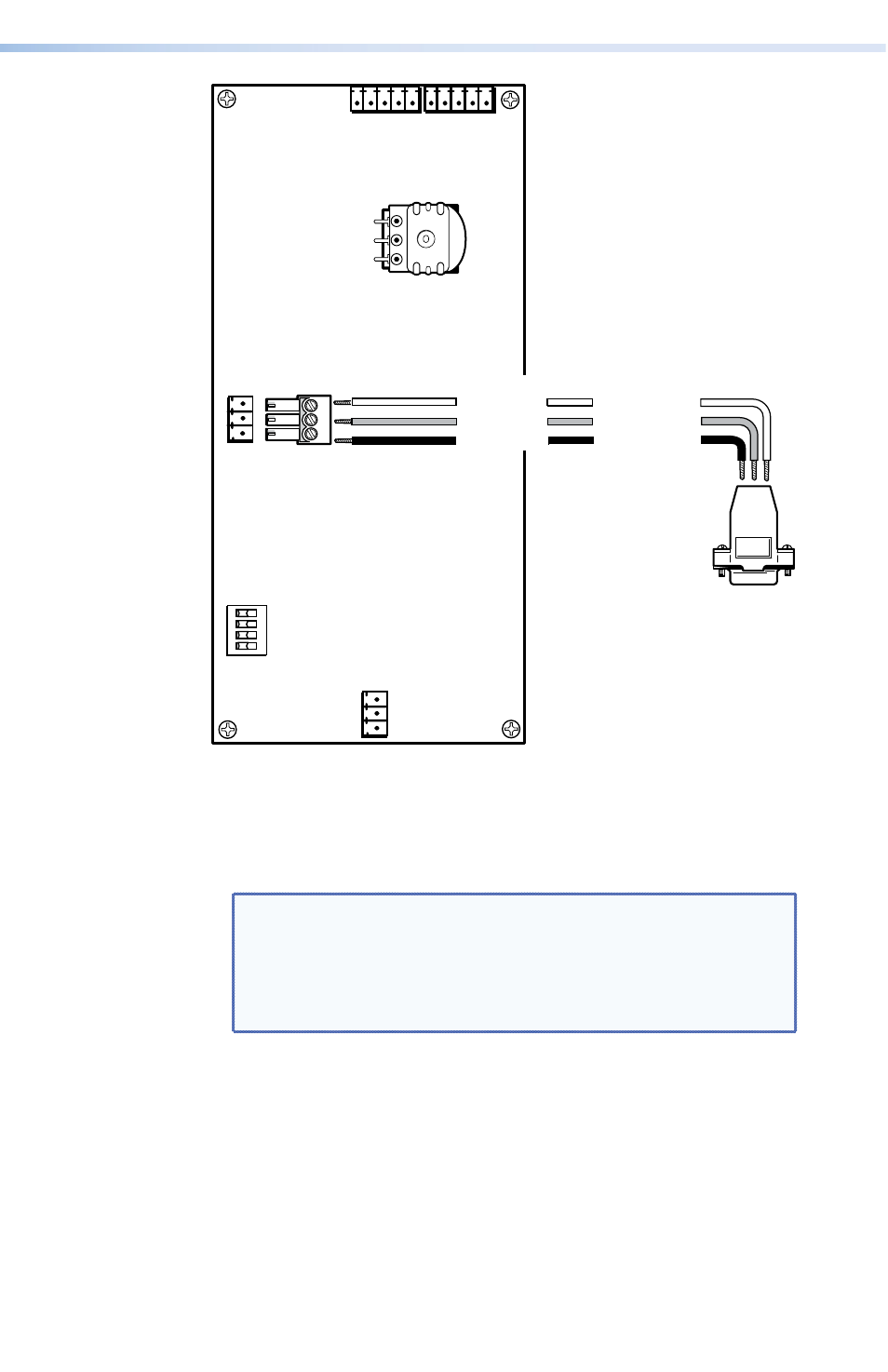

Figure 7.
Connecting a Host to the SCP 226
2.
Plug the 3-pole connector into the RS-232 port on the SCP
rear panel.
NOTES:
•
DIP switch #1 must be set to On (up) for the
SCP to be able to communicate with the
computer or terminal emulator.
•
Do not connect anything to this port if an MLC or a
System 5 IP is connected to the SCP.
SCP 104 and SCP 226 • Installation and Operation
11
