PowerCage FOX SR HDMI Scaling Receiver • Remote Control
27
2.
If you have not previously updated firmware for the PowerCage FOX unit, on the Add
Device screen (see figure
20), select the
RS-232
tab.

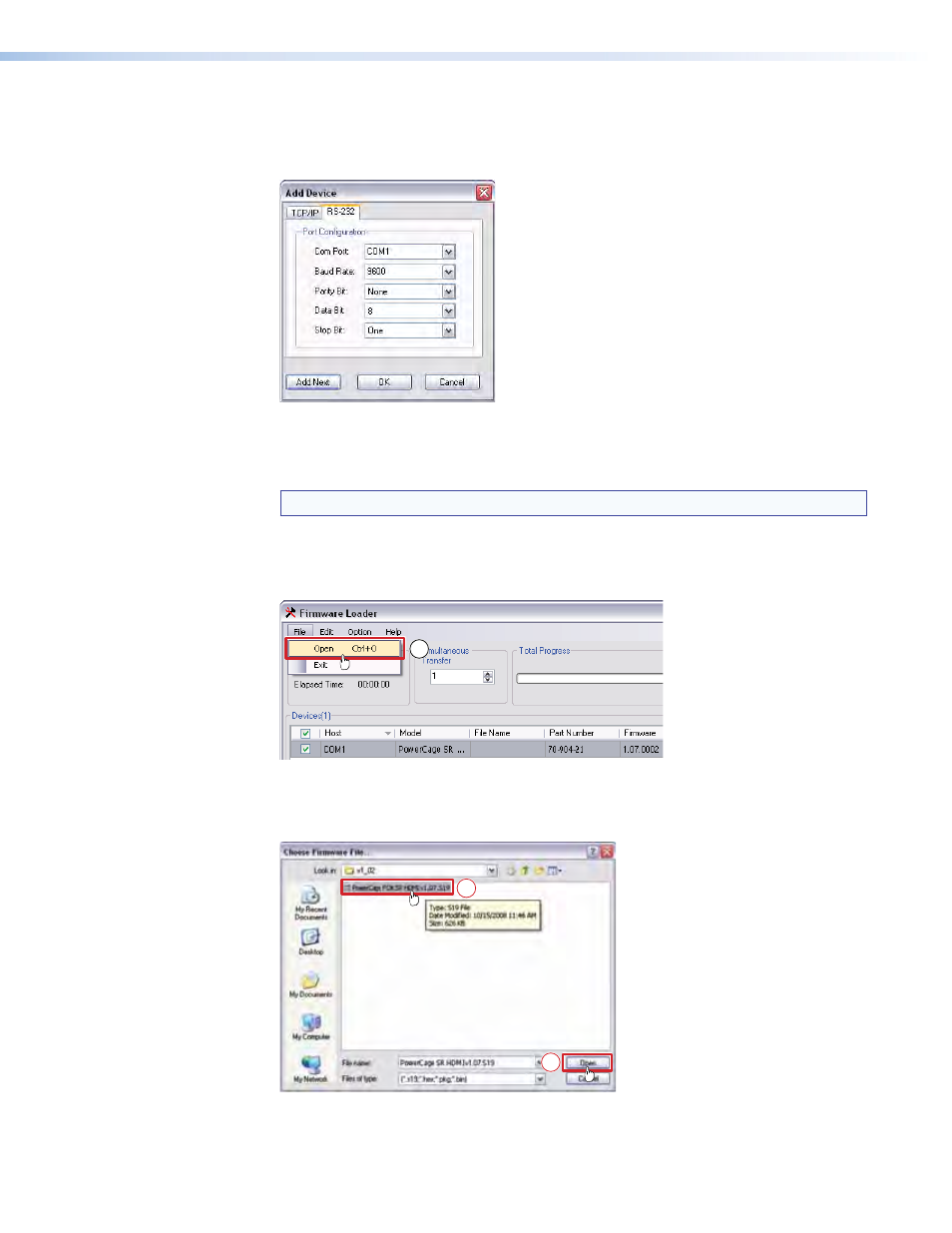

Figure 20.
Add Device Screen
If you have previously updated firmware for this model, click
Cancel
. The Firmware
Loader window appears. Proceed to step
5.
NOTE: The receiver does not have an Ethernet port. Do not select
TCP/IP
.
3.
From the drop-down menus on the RS-232 screen, select the appropriate Com port
number and baud rate (the default is 9600).
4.
Click
OK
. The Firmware Loader window appears (see figure
21).
5
Figure 21.
Extron Firmware Loader Window
5.
Select the PowerCage receiver and click
File
>
Open
. The Choose Firmware File
screen appears (see figure
22).
6
6
Figure 22.
Choose Firmware File Window
