Firmware upgrade – Extron Electronics PowerCage FOX SR HDMI User Guide User Manual
Page 31
PowerCage FOX SR HDMI Scaling Receiver • Remote Control
25
Firmware Upgrade
Firmware can be upgraded for each unit via the PowerCage front panel Configuration port
using the Extron Firmware Loader utility from the Windows-based control program.

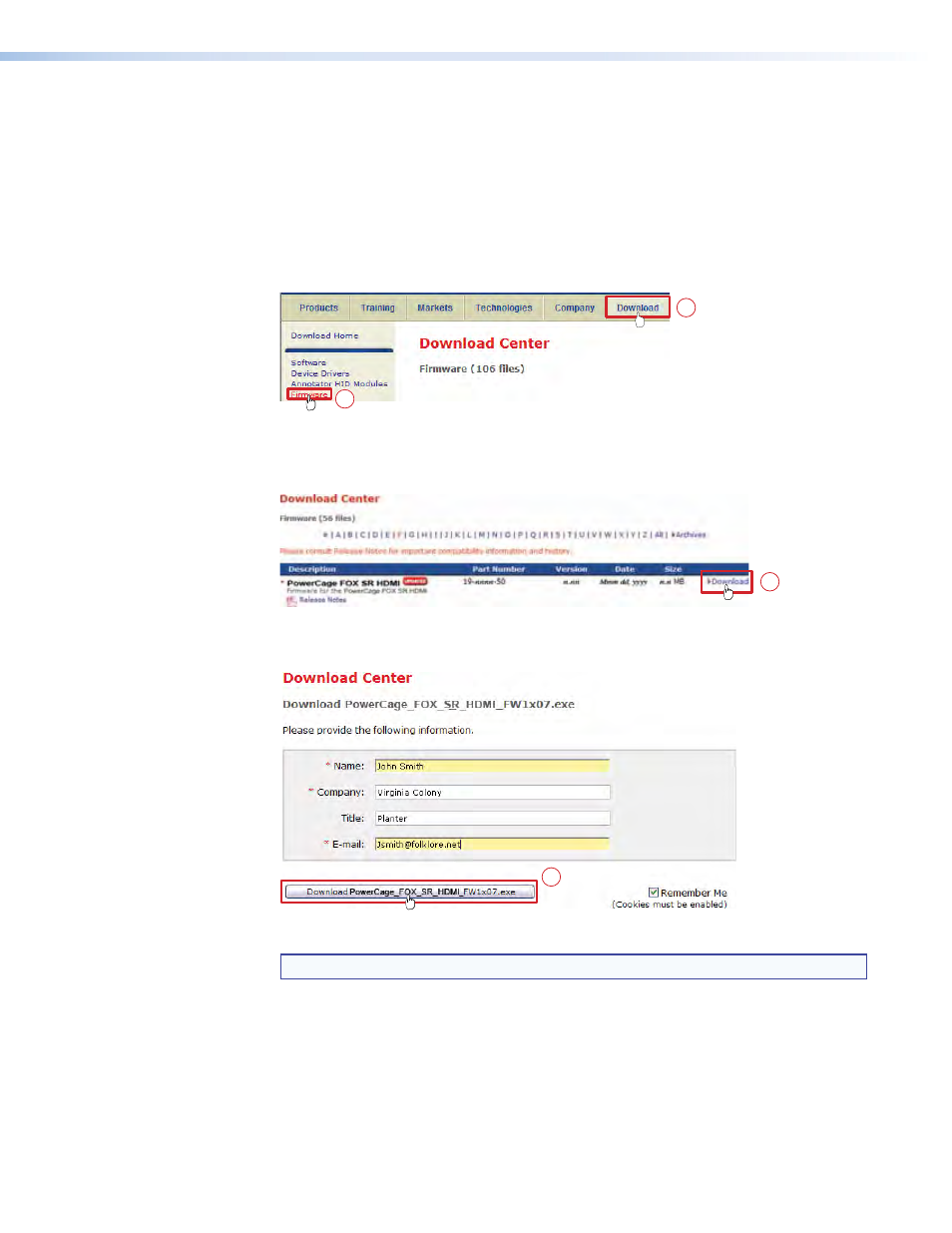

Downloading the firmware from the website
To obtain the latest version of firmware for your PowerCage FOX unit:
1.
Visit the Extron website,
www.extron.com
, click the
Download
tab, and then click the
Firmware
link on the left sidebar menu (see figure
16).
1
1
Figure 16.
Location of Firmware Upgrade Files
2.
On the Download Center screen (see figure
17), click the link for the appropriate
firmware file.
2
Figure 17.
Finding Scaling Receiver Firmware
3.
Complete the Personal Information form (see figure
18) and click the
Download
button.
3
Figure 18.
Personal Information Form
TIP: Select the
Remember
Me checkbox to avoid filling out this form in the future.
