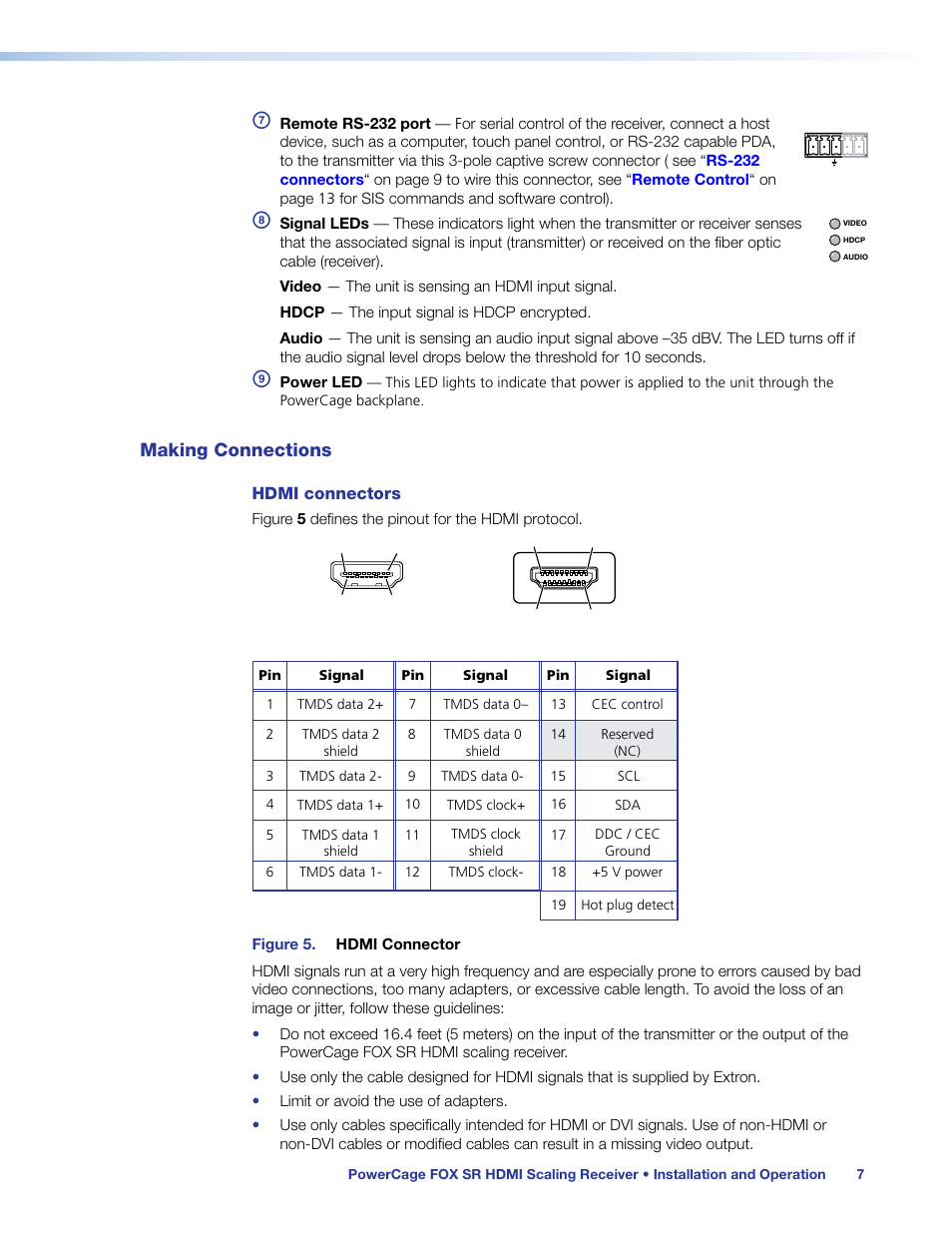

Making connections, Hdmi connectors – Extron Electronics PowerCage FOX SR HDMI User Guide User Manual
Page 13
