MTP R 15HD RSA D • Reference Information
Reference Information, cont’d
21

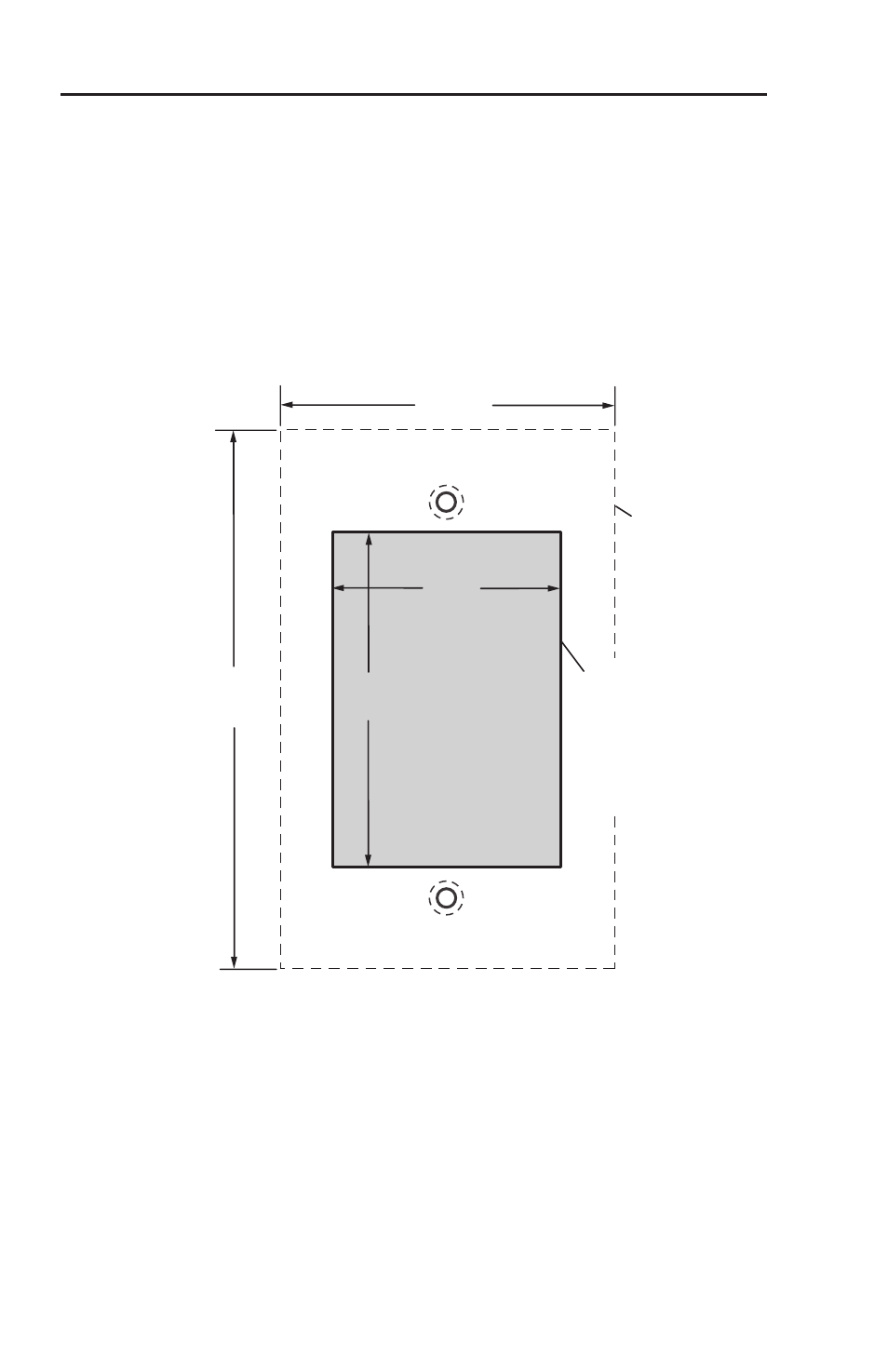

Decora Template Dimensions
If you need to create a template, use the dimensions shown in
figure 8 below.
N
The drawing is not full size or to scale. Do not scale up
or print to use as a template.
Full size templates are available online at
4.50"
(11.43 cm)
Top
Panel
SURFACE CUT-OUT
AREA FOR
FURNITURE MOUNT
2.79"
(7.09 cm)
1.9"
(4.83 cm)
2.8"
(7.1 cm)
To install a 1-gang
MTP R 15HD RSA D
directly into
furniture or a
wall, cut along
this line.
Figure 8 — 1-gang cut-out template
