Final installation, Installation and operation, cont’d, Mtp r 15hd rsa d • installation and operation – Extron Electronics MTP R 15HD RSA D User Guide User Manual
Page 11: Figure 3 — mounting the receiver, At the power outlet, reconnect the power supply
MTP R 15HD RSA D • Installation and Operation
Installation and Operation, cont’d
7
10
. Connect a video and an RS-232 and/or audio device to
the front panel. See "
connector details.
11
. Restore the power supply, and test the transmitter/receiver
system. Make any cabling adjustments before final
installation, as the cables will be inaccessible afterwards.
Final installation
After testing and making any adjustments, do the following:
1
.
At the power outlet, unplug the power supply.
2
.
Mount the receiver into the box, and attach the supplied
Decora faceplate to the unit, as shown in figure 3.
Wall opening
is flush with
edge of box.
Wall Box
Decora
Faceplate
Extron
MTP R 15HD RSA D
OUTPUT
PEAK
LEVEL
AUDIO RS-232
Tx
Rx

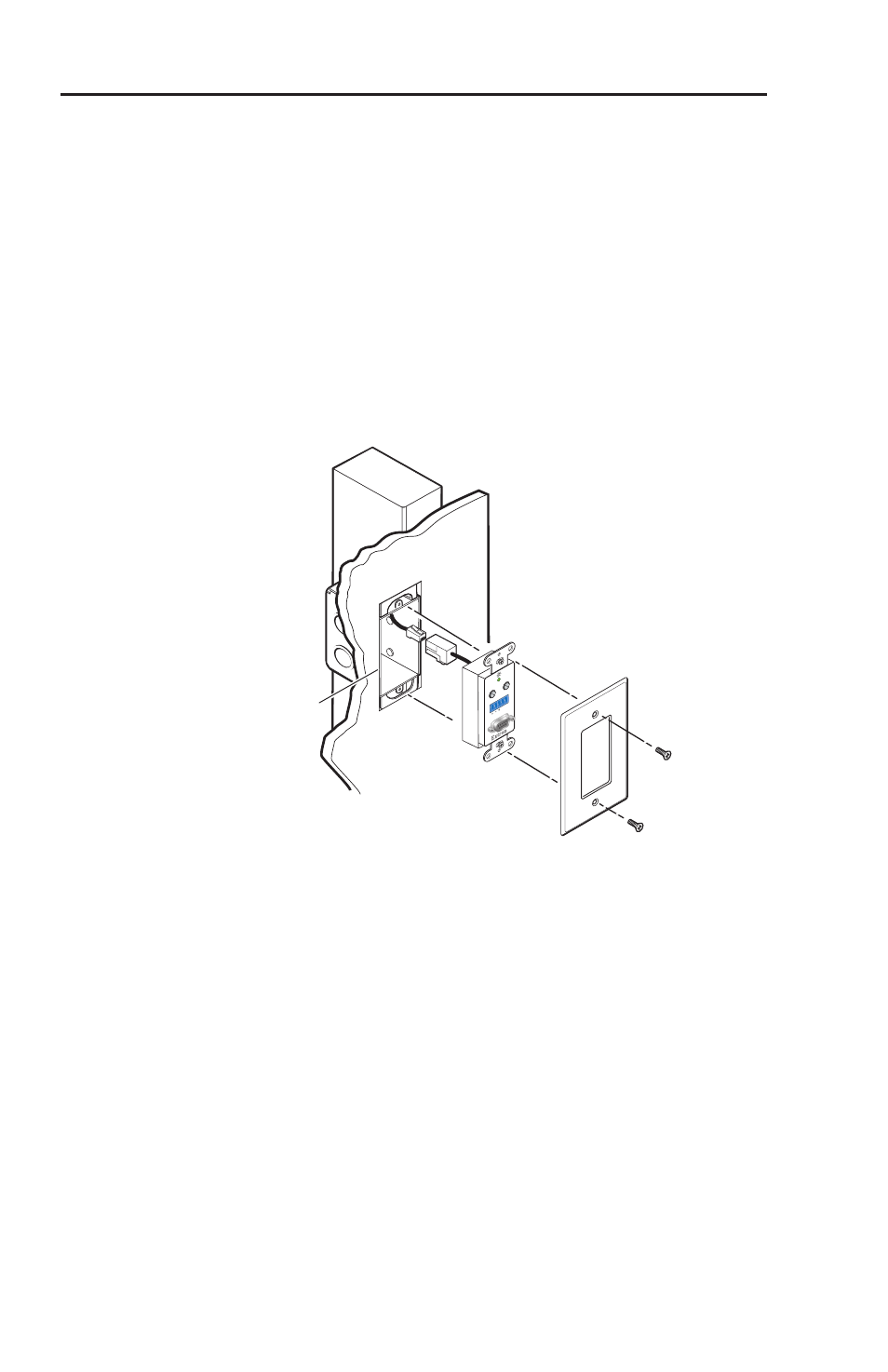

Figure 3 — Mounting the receiver
3
.
At the power outlet, reconnect the power supply.
