MTP R 15HD RSA D • Installation and Operation

Installation and Operation, cont’d

For H Sync + and V Sync +, most devices use

negative sync.

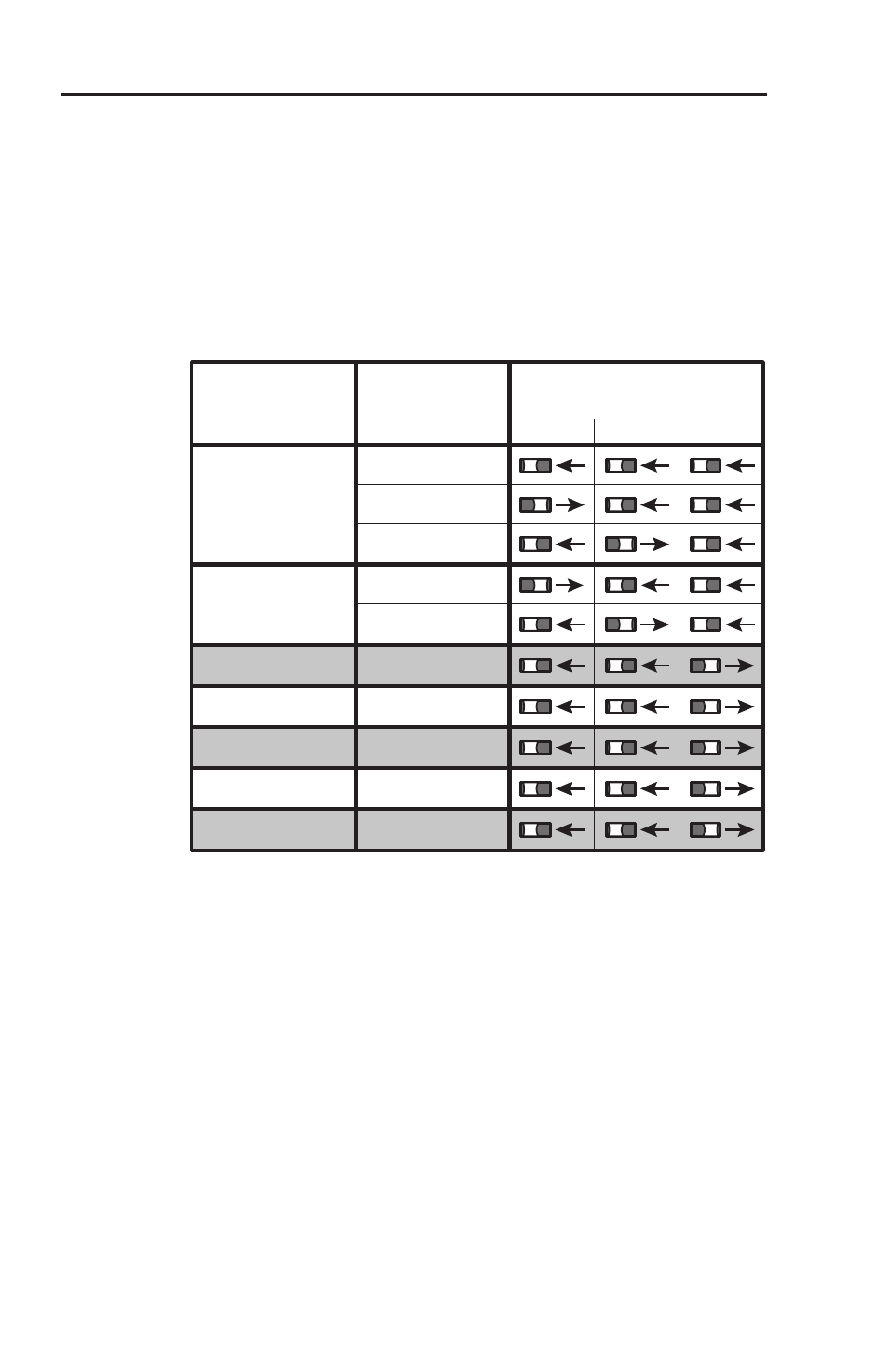

Set the Composite Sync, SOG, and Video DIP switches

as shown in the table below for the various input and

output video formats.

Composite Sync (C Sync) switch —

Set this switch on (right)

for RGBS or off (left) to output RGBHV or RGsB video. See the

table below.

Output signal

format from

the receiver

Input signal

format to the

transmitter

Receiver's DIP

switch settings

C Sync

SOG

Video

RGBHV

RGBS

RGBHV

RGsB

RGBS

RGsB

Component

S-video

Composite

RGBS

RGsB

RsGsBs

Component

S-video

Composite

Sync-on-Green (SOG) switch —

Set this switch on (right) for

RGsB video (when the input is RGBHV or RGBS). Set this

switch off (left) to output RGBHV, RsGsBs, or RGBS video.

See the table above.

Video switch —

Set this switch on (right) for RsGsBs, RGsB,

component, S-video, or composite video. Set this switch

off (left) to output RGBHV or RGBS video. See the table above.

BI-RS232 —

Set this switch on (right) to select bidirectional

communications when serial data is present on the audio/

RS-232 wire pair. Set this switch off (left) to select unidirectional

communications. The default position is off (left).

This switch is ignored if audio is present on the

audio/RS-232 wire pair.
