MTP R 15HD RSA D • Installation and Operation
Installation and Operation, cont’d
11
Making Connections
Power supply wiring

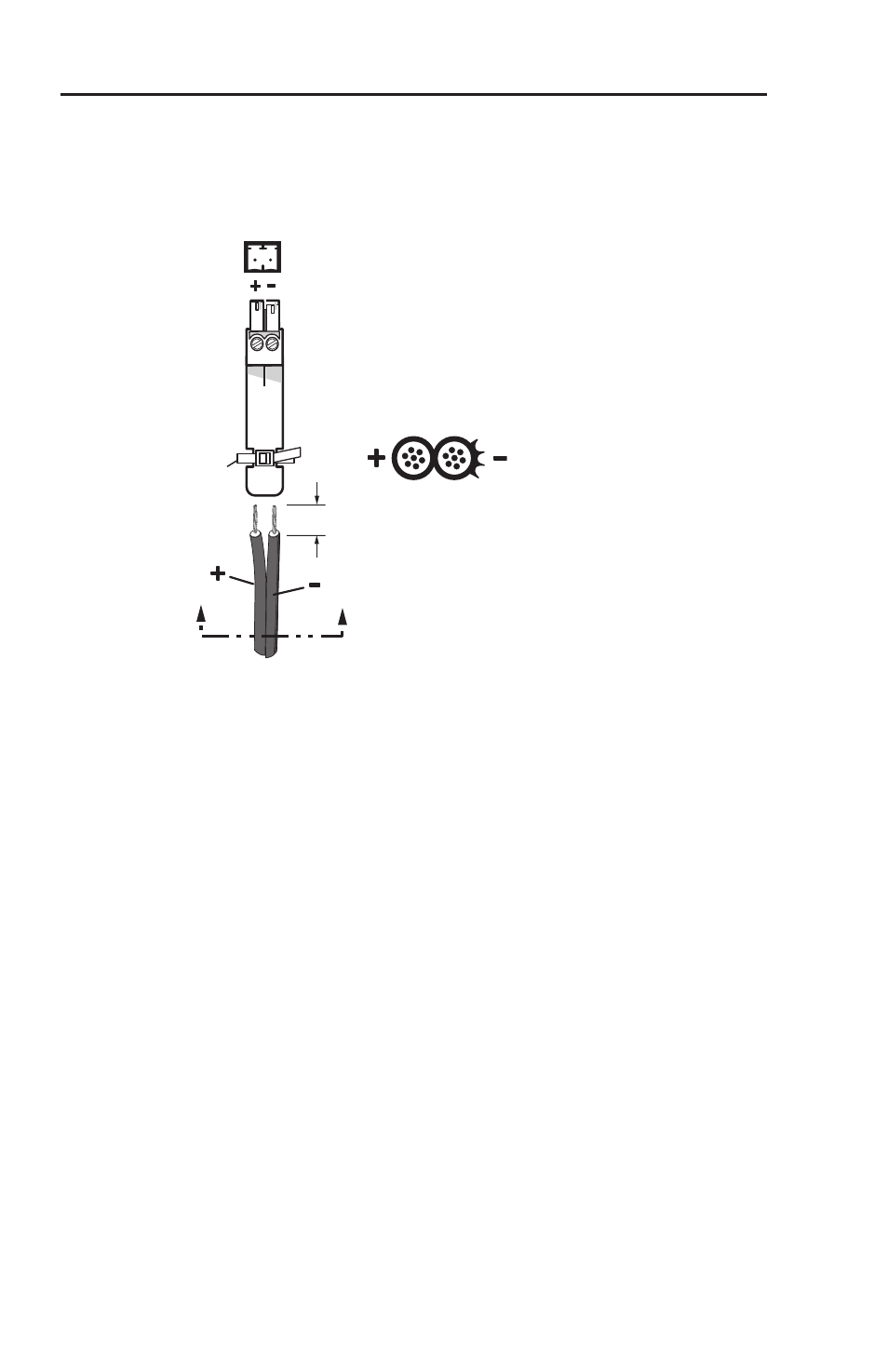

Figure 5 shows how to wire the power connector.
SECTION A–A
A A
Power Supply
Output Cord
2-Pole Captive Screw
Connector
Ridges
Smooth
Tie Wrap
3/16”
(5 mm) Max.
Figure 5 — Power connector wiring
C Power supply voltage polarity is critical. Incorrect
voltage polarity can damage the power supply and
the MTP. Identify the power cord negative lead by
the ridges on the side of the cord (figure 5).
To verify the polarity before connection, plug in the power
supply with no load and check the output with a voltmeter.
W The two power cord wires must be kept separate
while the power supply is plugged in. Remove
power before wiring.
C The length of the exposed (stripped) copper wires
is important. The ideal length is 3/16 inches
(5 mm). Longer bare wires can short together.
Shorter wires are not as secure in the direct
insertion connectors and could be pulled out.
N Do not tin the power supply leads before installing them
in the direct insertion connector. Tinned wires are not as
secure in the connectors and could be pulled out.
