MTP R 15HD RSA D • Installation and Operation 8
Connections and Settings
See figure 4 to identify the rear and front panel connections on
the receiver.
MTP 15HD RSA D Rx Rear Panel MTP 15HD RSA D Rx Front Panel
INPUT
H SYNC +
V SYNC +
C SYNC
SOG
VIDEO
Bi-RS232
H SYNC +
V SYNC +
C SYNC
SOG
VIDEO
Bi-RS232
OUTPUT
PEAKING LEVEL
AUDIO RS-232
Tx Rx
2
1
3
4
6
5
7

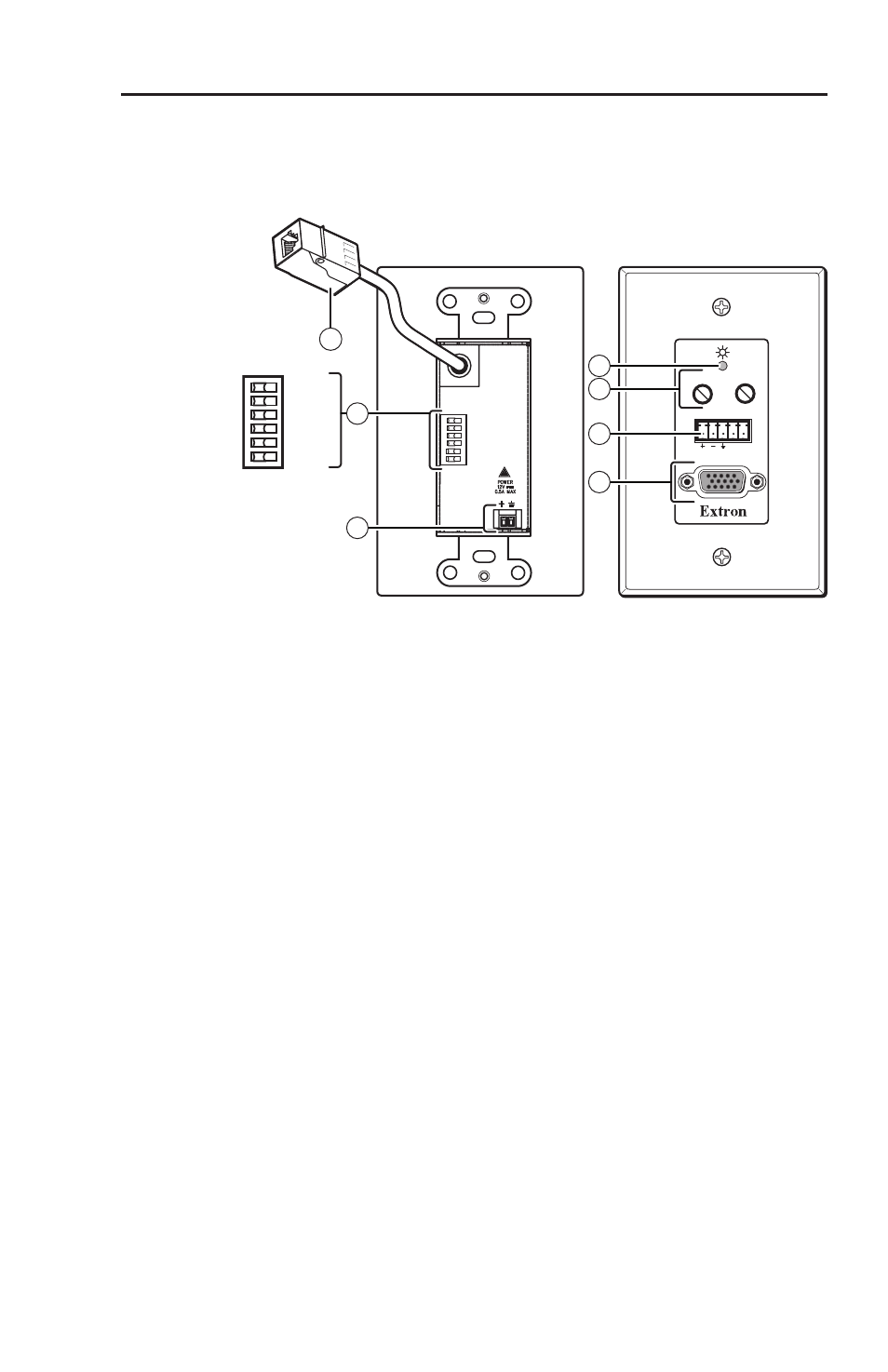

Figure 4 — Receiver’s features
Rear panel features
a
DC power connector — If applicable, plug the external 12 VDC
power supply into this 2-pole captive screw connector. See
" Power supply wiring " on page 11 to wire the connectors.
N The remote power capabilities available with certain
MTP models are not supported by this unit; the
transmitter and receiver both must be powered.
b
Input connector — Connect the TP cable from the transmitter to
this pigtail RJ-45 female connector. See " TP cable termination "
on page 12 to wire the RJ-45 connectors.
N See the table on page 2 for recommended transmission
ranges.
c
DIP switches
Horizontal Sync (H Sync +) switch — Set this switch on (right)
for positive horizontal sync (or positive composite sync if the
Composite Sync switch is also on) or off (left) for negative sync.
Vertical Sync (V Sync +) switch — Set this switch on (right) for
positive vertical sync or off (left) for negative sync.
