Extron Electronics MS9400 HD FrEND User Manual
Page 13

MS9400 HD FrEND User Guide
Chapter 2: Player Controls and Set-Up
13 Rev.
1.54
System Configuration
Use the HD FrEND in simple stand-alone configurations consisting of the player, an HD display and an audio
system, or in more complex network integrated systems.
The following diagram illustrates a generic system utilizing an HD FrEND player. Your actual system
configuration may be different but will be some variant of that shown. The Show Control Computer is only
necessary when using the HD FrEND in a network (LAN) controlled system, or locally controlled through the
RS232 port.
Refer to Chapter 5: Remote Control Protocol, for more details.

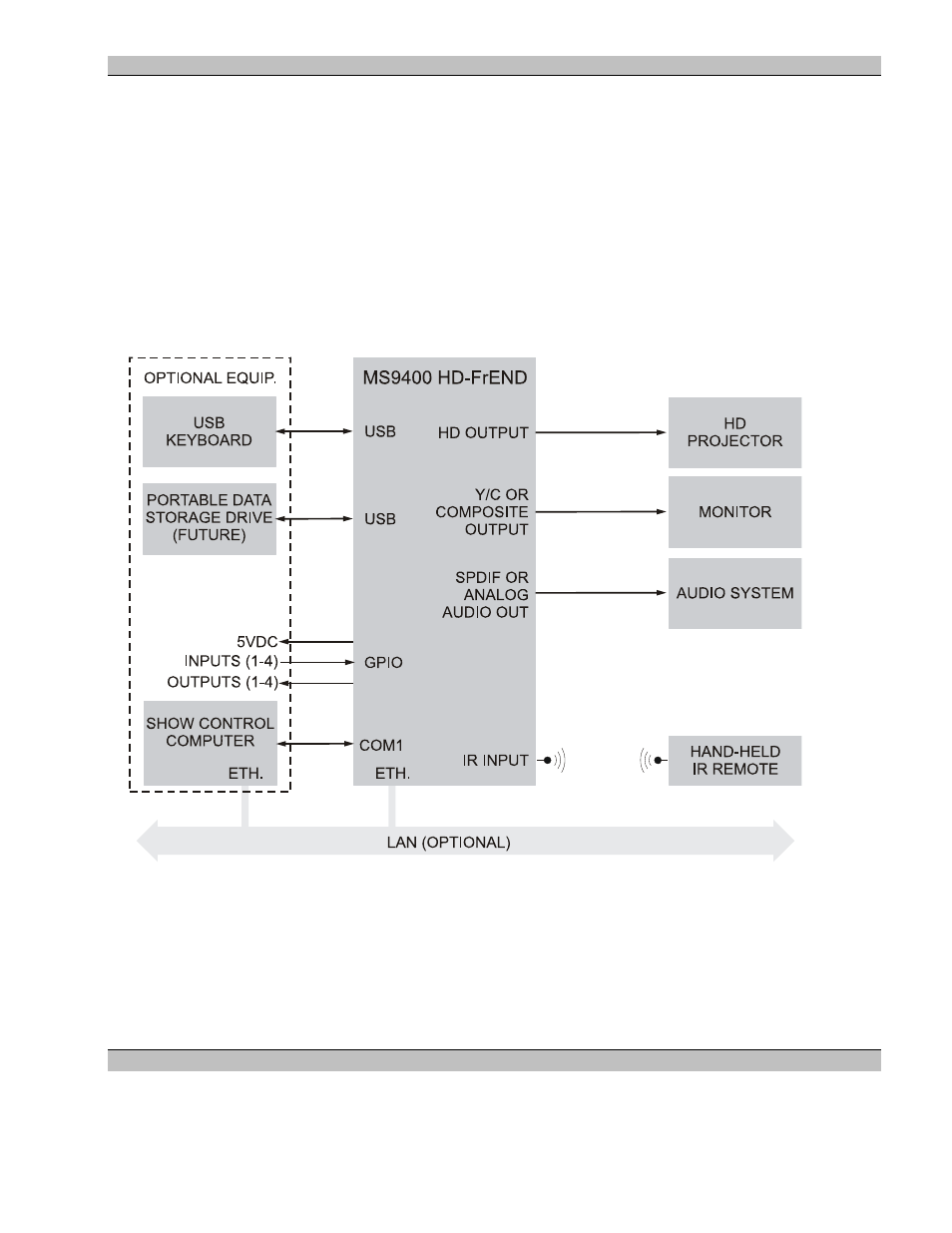

MS9400 Generic System Interface diagram:
