FOX II DP Transmitter and Receiver • Remote Control
32
Configuration > EDID Minder screen (transmitter connection only)
The EDID Minder screen (see figure 18, below) provides controls for you to tailor the EDID
that is provided to the transmitter. Select this screen by clicking the
EDID
Minder
subtab
from either the Status or Input/Output Configuration screen or
Configuration
>
EDID
Minder
from one of the Hardware screens.
NOTE: The transmitter front panel EDID Select rotary switch must be in the 1 position
for most of the EDID Minder window to be available for operation. When the switch is
in other positions, only the Input field (
e
) and the following is displayed:
1
2
3
4
5

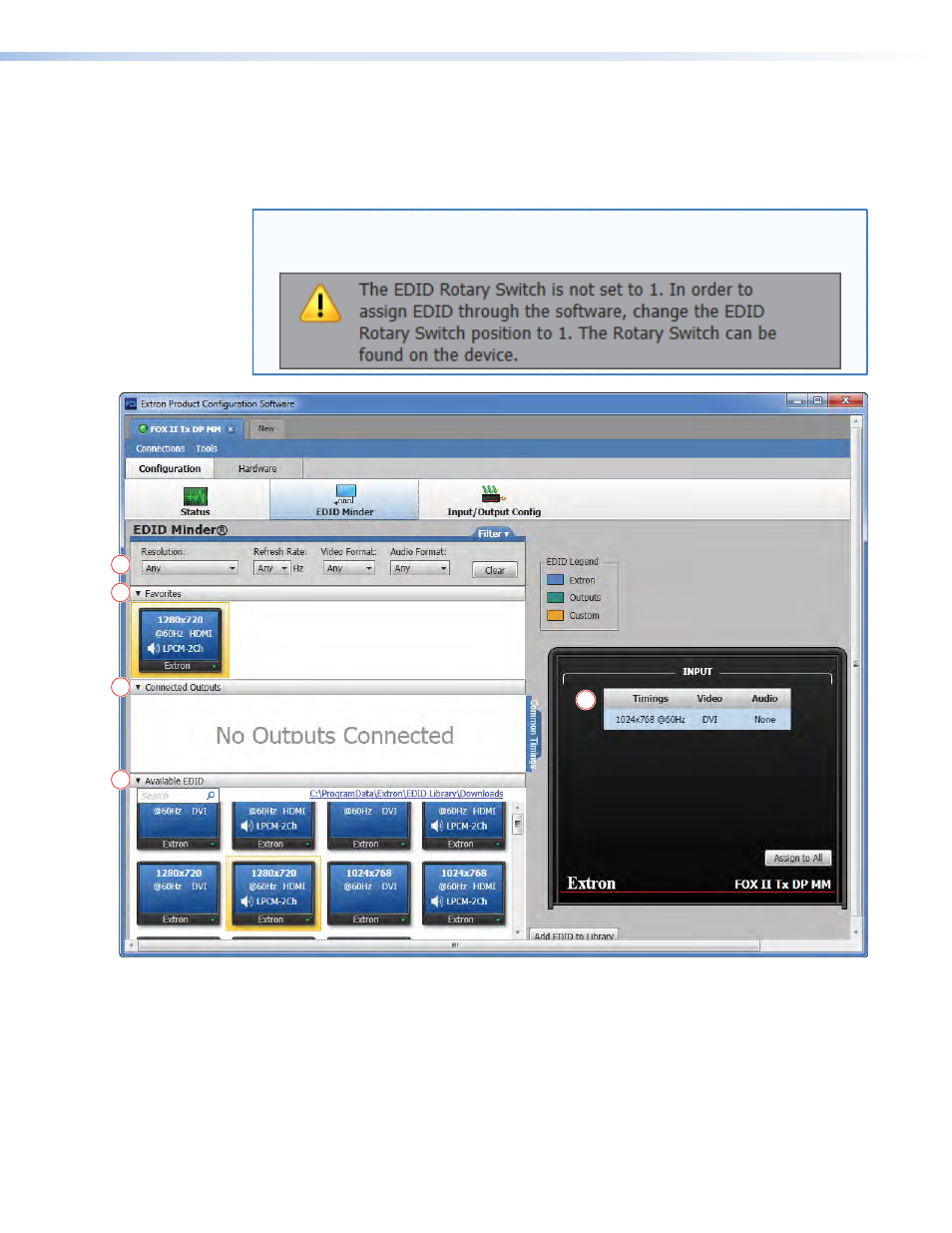

Figure 18.
EDID Minder Screen (Transmitter Connection Only)
Click an EDID box in the
Available
EDID
(
a
),
Connected
Outputs
(
b
), or
Favorites
(
c
) panels to select (highlight in yellow) the EDID identified by that box.
If desired, drag and drop an EDID box into the Favorites panel.
If desired, reduce the number of EDID boxes displayed by selecting a filter in one of four
categories (panels) (
d
):
Resolution
,
Refresh
Rate
,
Video
Format
, and
Audio
Format
.
The Input panel (
e
) displays the resolution, rate, video type, and embedded audio
format of the DisplayPort input.
