ZXLD1366

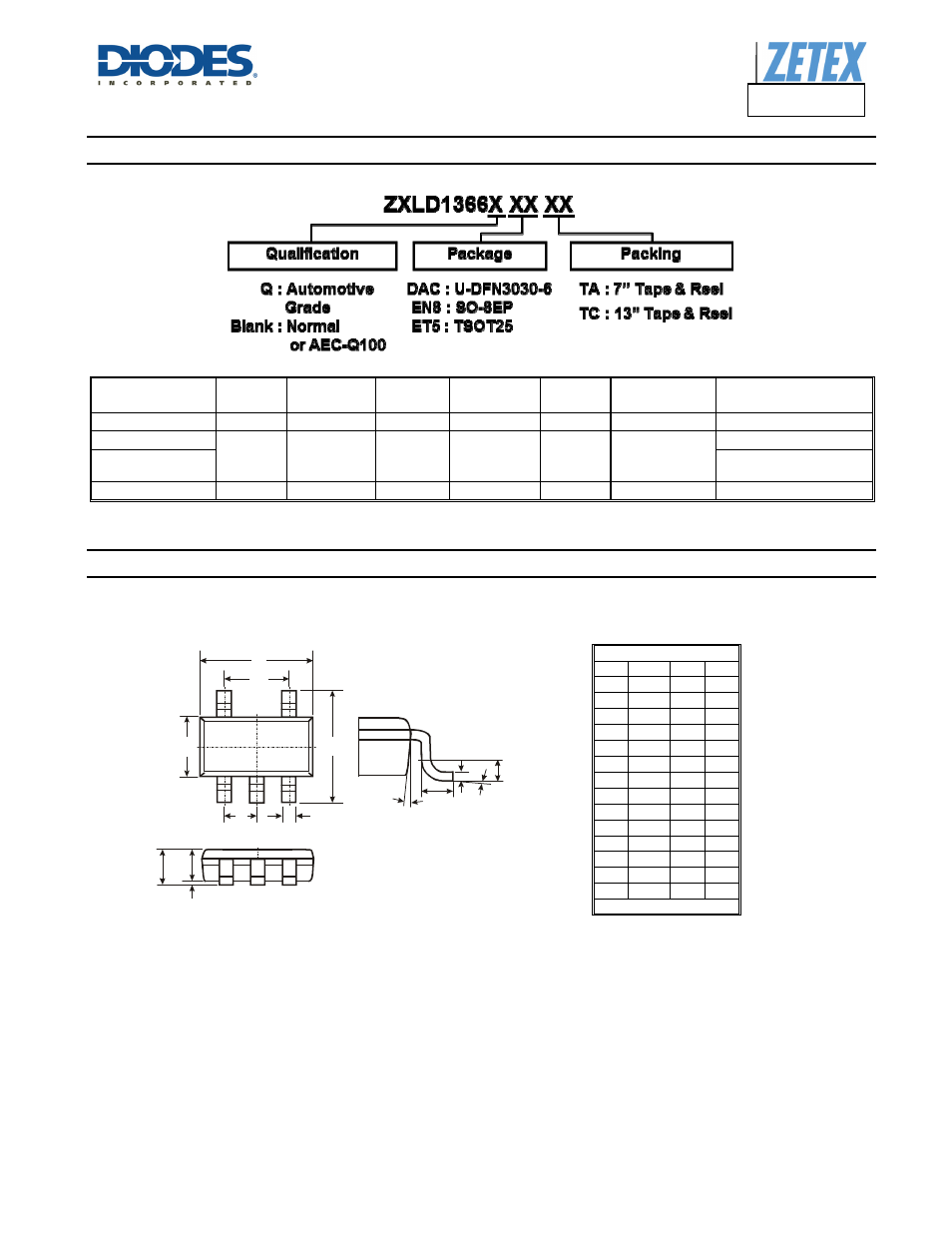

Ordering Information
Part Number
Part
Mark
Packaging
Reel Size
(inches)
Reel Width
(mm)
Quantity
Per Reel Part Number
Suffix
Qualification
ZXLD1366DACTC 1366 U-DFN3030-6 13 12 3000 TC
ZXLD1366EN8TC ZXLD
1366
YYWW
SO-8EP 13 12 2500 TC
AEC-Q100 Grade 1
ZXLD1366QEN8TC Automotive Grade
ZXLD1366ET5TA 1366 TSOT25 7 8 3000 TA AEC-Q100 Grade 1
Where YY stands for last 2 digits of year - 10, 11 and WW stands for week number.
Package Outline Dimensions
1) TSOT25
TSOT25
Dim Min Max Typ
A − 1.00 −
A1 0.01 0.10 −
A2 0.84 0.90 −
D − − 2.90
E − − 2.80
E1 − − 1.60
b 0.30 0.45 −
c 0.12 0.20 −
e − − 0.95
e1 − − 1.90
L 0.30 0.50
L2 − − 0.25
θ 0° 8° 4°
θ1 4° 12° −
All Dimensions in mm
c
A1
L
E1 E
A2
D
e1
e
5x b
θ
4x 1 θ
L2
A
