3.4.7. OPERATION WITH 3X MAGNIFIER
(1) Install per paragraph 3.3.12.
NOTE :
The mated 3X magnifier and objective lens will turn as a unit to allow focusing.
(2) Grasp the 3X magnifier and focus while observing an object until the sharpest image is obtained.
3.4.8. OPERATION WITH GAIN CONTROL (PVS-14 ONLY)
Turn the gain control (Figure 3-22) to balance the illumination input to the eye.
3.4.9. PREPARATION FOR STORAGE
(1) Shutdown. Perform the following procedures to shut down the monocular.
(a) Turn the monocular power switch to the OFF position.
(b) Remove the monocular from the headmount, helmet mount or weapon and remove the
weapon mount from the monocular.
WARNING :
Do not carry batteries in pockets containing metal objects such as coins, keys, etc. Metal ob-
jects can cause the batteries to short circuit and become very hot.
(2) Packaging After Use.
(a) Remove battery cap and remove battery.
(b) Inspect the battery housing for corrosion or moisture. Clean and dry if necessary.
(c) Replace the battery cap.
(d) Remove the demist shield or sacrificial window if installed. Install objective lens cap.
NOTE :
• Prior to placing MUNVM into carrying case, ensure MUNVM and case are free of dirt, dust, and
moisture.
• The monocular and helmet mount should not be left on the helmet when the helmet is re-
moved.

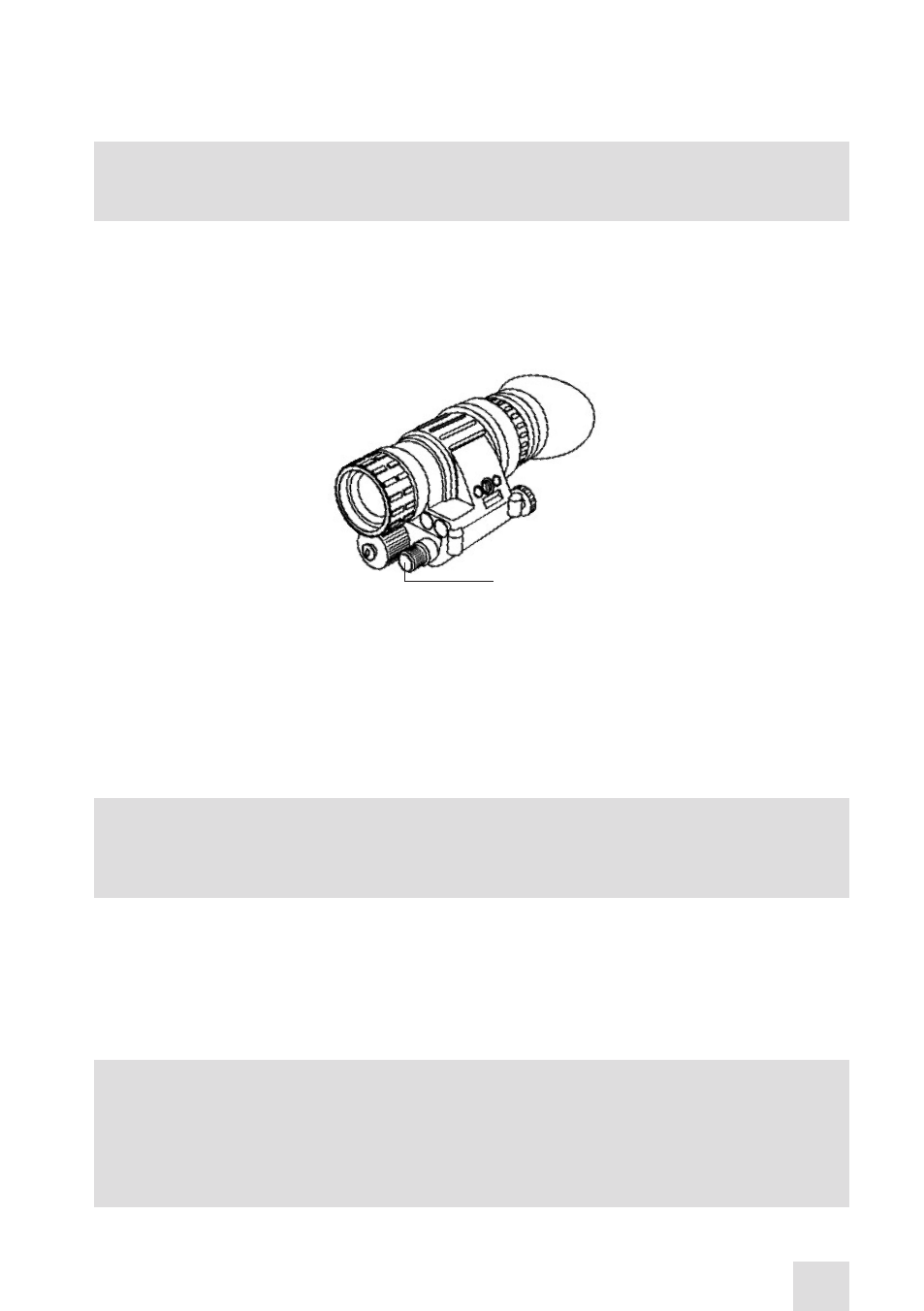

GAIN CONTROL
Figure 3-22. Gain Control
