c. Helmet Mount
This item (Figure 2-1), secures the monocular to the Personal Armor System Ground Troops (PASGT)
helmet allowing freehand support for use with a weapon, protective mask and/or other purposes. The
new helmet mount is made of a ruggedized metal. The old one is made of plastic.
d. Headmount/Helmet Mount Adapter
This item (Figure 2-1) is attached to the monocular to allow its use with the headmount or helmet
mount. It allows mounting in front of the left or right eye.
e. Weapon Mount
The weapon mount (Figure 2-1) adapts the monocular to the receiver rail as configured for the modular
weapon system kit.
f. Carrying Case
The carrying case (Figure 2-3) is provided for transportation and protection of the monocular, head-
mount, battery and accessories. Two slide keepers are provided for belt attachment and three D-rings

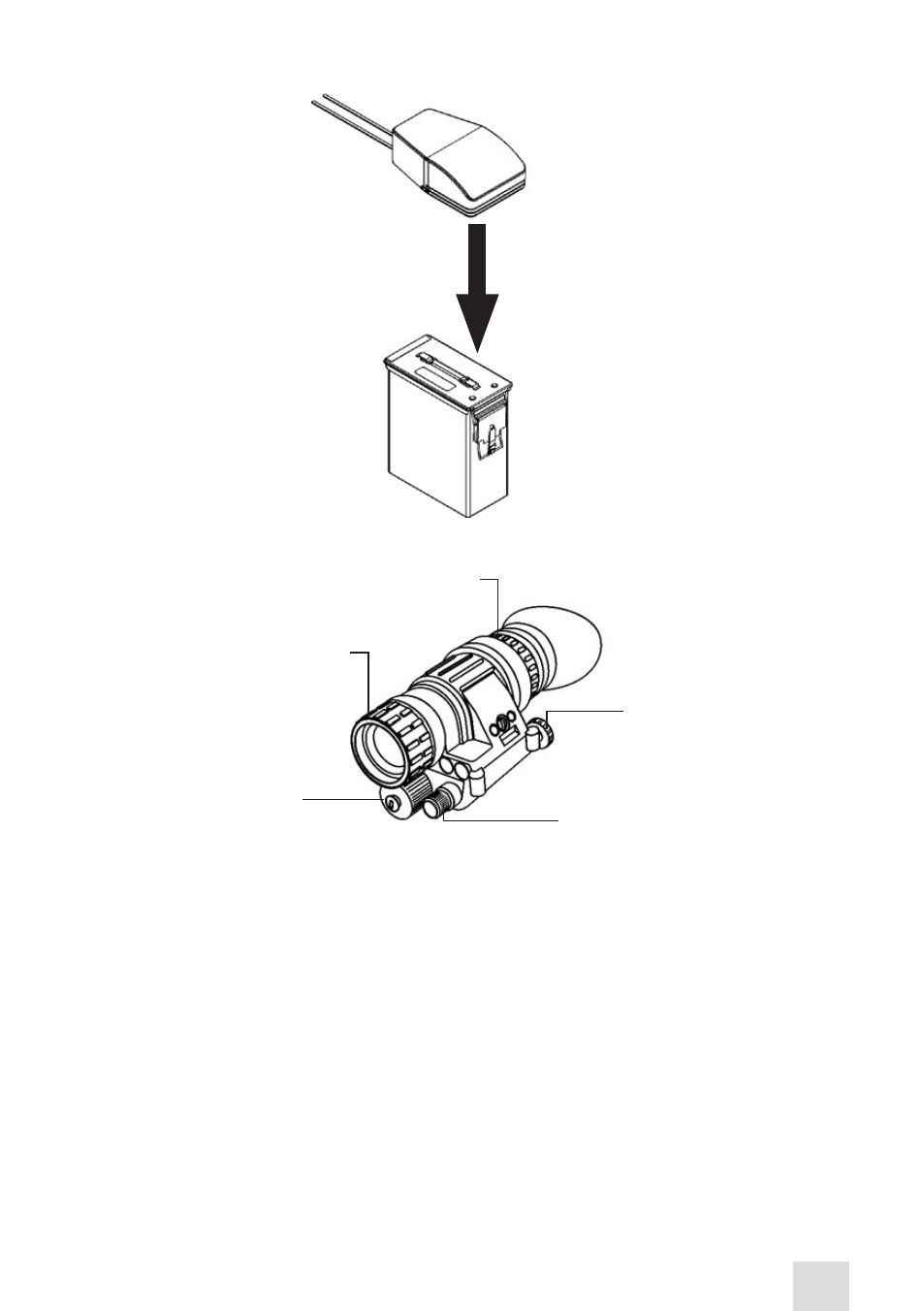

Figure 2-3. Shipping and storage cases for PVS-14/6015
(SEE FIGURE 2-1. FOR DETAILS)
SHIPPING
AND
STORAGE
CASE
OBJECTIVE
LENS
EYEPIECE
LENS
POWER
SWITCH
GAIN
CONTROL
BATTERY
CAP
Figure 2-4. Multi-Use Night Vision Monocular
