35
WARNING :
When installing the headmount over the protective mask, be careful not to break the protective
mask seal around your face.
(2) Install the headmount per the instructions in paragraph 3.3.6.
NOTE :
It may be necessary to remove the browpad (Figure 3-9) when wearing the headmount over a
protective mask.
3.3.10. INSTALLATION OF WEAPON MOUNT
Perform the following procedure to install the weapon mount.
CAUTION :
The MUNVM is not a weapon sight, however, it can be used in conjunction with a collimated dot
sight or laser aiming device.
NOTE :
It is recommended that the eyecup be replaced with the eyeguard during weapon mounted
use.
(1) Orient the monocular and weapon mount as shown in Figure 3-14. Be sure to align the alignment
boss on the weapon mount with the alignment groove in the monocular.
(2) Screw in the thumbscrew to secure the monocular to the weapon mount.
(3) Loosen the clamping knob on the weapon mount. Position the weapon mount with the monocular
onto the weapon’s mounting rail. Tighten by turning the clamping knob.
WEAPON
MOUNT ALIGNMENT BOSS
(HIDDEN)
THUMBSCREW
CLAMPING KNOB

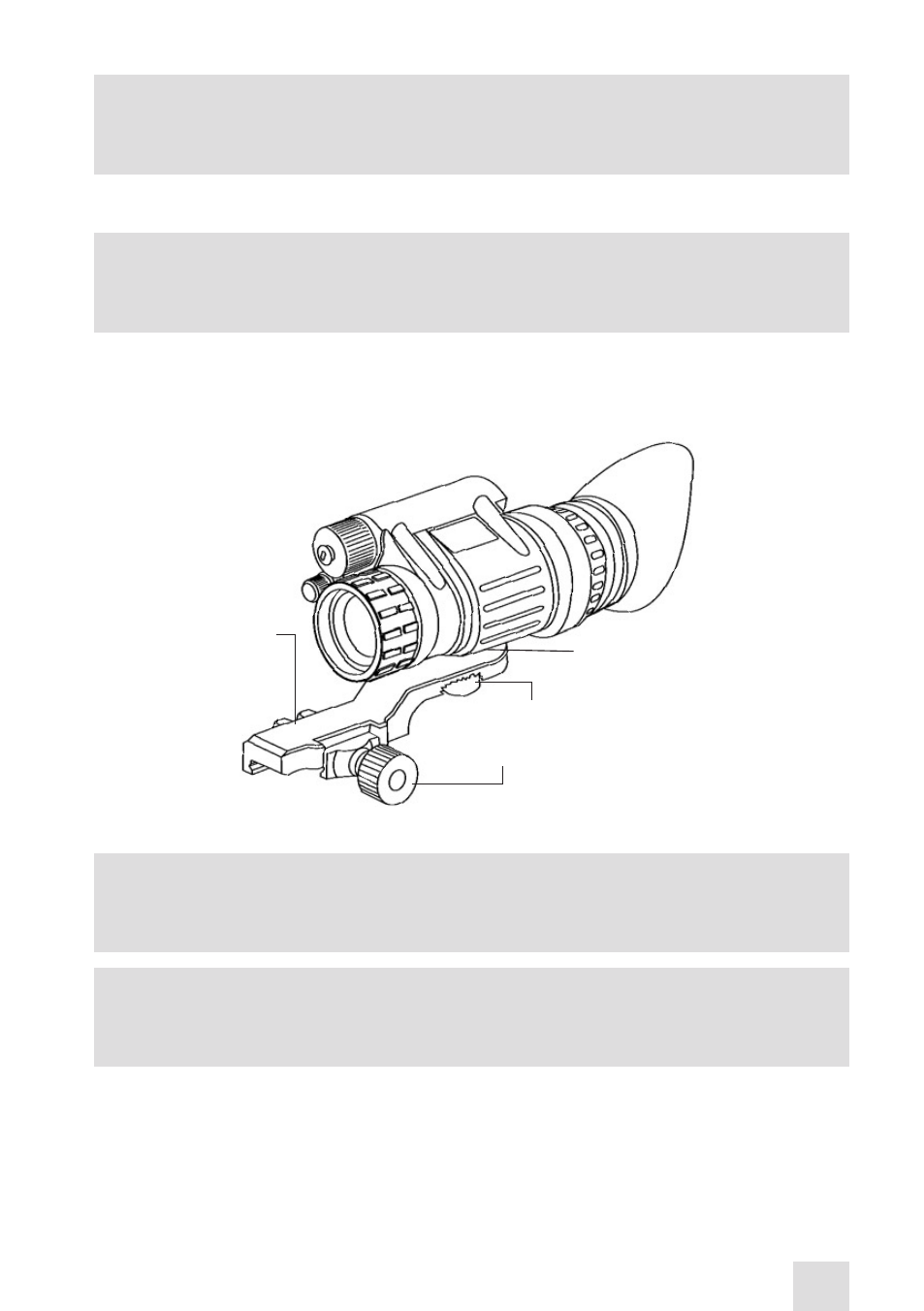

Figure 3-14. Weapon Mount Usage
