40

NOTE

:

The helmet mount provides two positions for the user to position the MUNVM. The flipped

down position allows the user to position the MUNVM directly in front of the eyes. The helmet

mount also allows the user to rotate the MUNVM to a flipped up position when the MUNVM is

not needed for immediate use. Both the flipped down and the flipped up positions have a posi-

tive stop which assures the user that the MUNVM is in the correct position.

Perform the following procedures for helmet mounted operation.
(1) Ensure that the battery are installed per paragraph 3.3.2.
(2) Don the helmet mount per instructions in paragraph 3.3.8.
(3) Place the monocular in the socket of the helmet mount.
Set your eye relief by depressing the side buttons (or press down on side lever on metal mount) (see

Figure 3-20) and carefully move the monocular fore or aft until the eyecup comfortably seals around

the eye. Readjust the helmet straps as required for vertical adjustment.

(4) Turn power switch to ON. Adjust the tilt by using the tilt adjustment lock knob (or tilt adjustment

lever on metal mount) (Figure 3-20) until you obtain a comfortable viewing angle.

NOTE

:

The sharpest image will be observed only when the objective lens and eyepiece lens are prop-

erly focused.

(5) Rotate the diopter adjustment for the clearest view of the image intensifier screen.

NOTE

:

Any readjustment of eye relief requires readjustment of the diopter.

(6) Adjust the eye relief distance by depressing the side buttons (Figure 3-20) (or press down on side

lever on metal mount) and sliding monocular fore or aft to obtain a full field-of-view of the image. Reset

the diopter adjustment for best image.
(7) Adjust the objective lens focus (Figure 3-1) while observing an object until the sharpest image is

obtained.
(8) To flip up, grasp the helmet tilt and flip-up assembly and rotate upward and rearward until the latch

is firmly engaged.

PLASTIC MOUNT

TILT ADJUSTMENT

LOCK KNOB

SOCKET

SIDE

BUTTONS (2 EA)

(FORE-AND-AFT

ADJUSTMENT)

METAL MOUNT

TILT ADJUSTMENT

LEVER

SOCKET

SIDE LEVER

(FORE-AND-AFT

ADJUSTMENT)

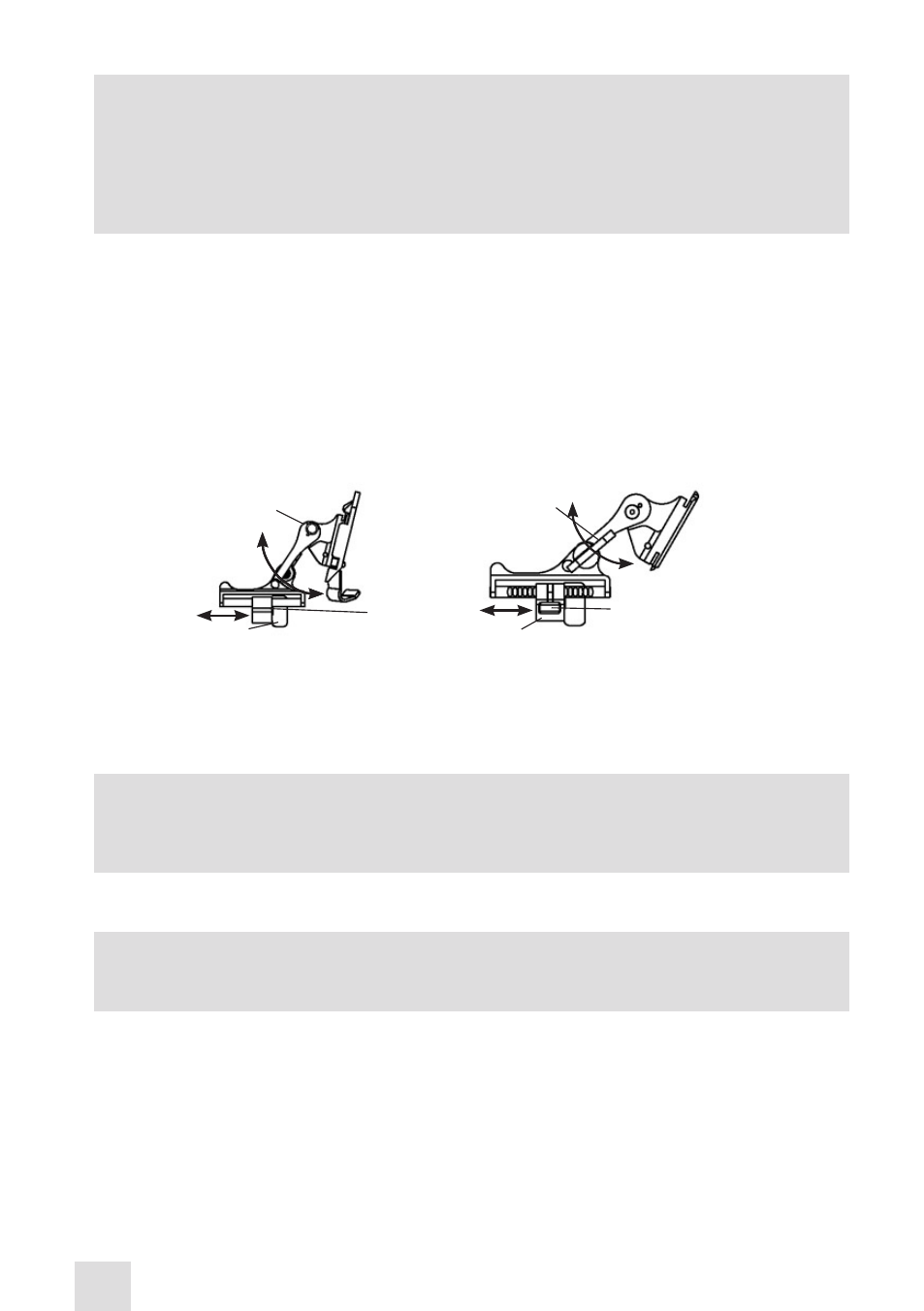

Figure 3-20. Tilt and Flip-up Assembly Mechanisms
