GE
Data Sheet
12A Analog SlimLynx TM Open Frame: Non-Isolated DC-DC Power Modules
3Vdc –14.4Vdc input; 0.6Vdc to 5.5Vdc output; 12A Output Current
February 19, 2014 ©2014 General Electric Corporation. All rights reserved. Page 22
Surface Mount Information
Pick and Place
The 12A Analog SlimLynx TM Open Frame modules use an
open frame construction and are designed for a fully
automated assembly process. The modules are fitted with a
label designed to provide a large surface area for pick and
place operations. The label meets all the requirements for
surface mount processing, as well as safety standards, and is
able to withstand reflow temperatures of up to 300
o C. The
label also carries product information such as product code,
serial number and the location of manufacture.
Nozzle Recommendations
The module weight has been kept to a minimum by using
open frame construction. Variables such as nozzle size, tip
style, vacuum pressure and placement speed should be
considered to optimize this process. The minimum
recommended inside nozzle diameter for reliable operation is
3mm. The maximum nozzle outer diameter, which will safely
fit within the allowable component spacing, is 7 mm.
Bottom Side / First Side Assembly
This module is not recommended for assembly on the
bottom side of a customer board. If such an assembly is
attempted, components may fall off the module during the
second reflow process
Lead Free Soldering
The modules are lead-free (Pb-free) and RoHS compliant and
fully compatible in a Pb-free soldering process. Failure to
observe the instructions below may result in the failure of or
cause damage to the modules and can adversely affect
long-term reliability.
Pb-free Reflow Profile
Power Systems will comply with J-STD-020 Rev. D
(Moisture/Reflow Sensitivity Classification for Nonhermetic
Solid State Surface Mount Devices) for both Pb-free solder
profiles and MSL classification procedures. This standard
provides a recommended forced-air-convection reflow
profile based on the volume and thickness of the package
(table 4-2). The suggested Pb-free solder paste is Sn/Ag/Cu
(SAC). The recommended linear reflow profile using Sn/Ag/Cu
solder is shown in Fig. 50.
Soldering outside of the
recommended profile requires testing to verify results and
performance.
MSL Rating
The 12A Analog SlimLynx TM Open Frame modules have a MSL
rating of 2a.
Storage and Handling
The recommended storage environment and handling
procedures for moisture-sensitive surface mount packages is
detailed in J-STD-033 Rev. A (Handling, Packing, Shipping and
Use of Moisture/Reflow Sensitive Surface Mount Devices).
Moisture barrier bags (MBB) with desiccant are required for
MSL ratings of 2 or greater. These sealed packages should
not be broken until time of use. Once the original package is
broken, the floor life of the product at conditions of
≤ 30°C
and 60% relative humidity varies according to the MSL rating
(see J-STD-033A). The shelf life for dry packed SMT packages
will be a minimum of 12 months from the bag seal date,
when stored at the following conditions: < 40° C, < 90%
relative humidity.

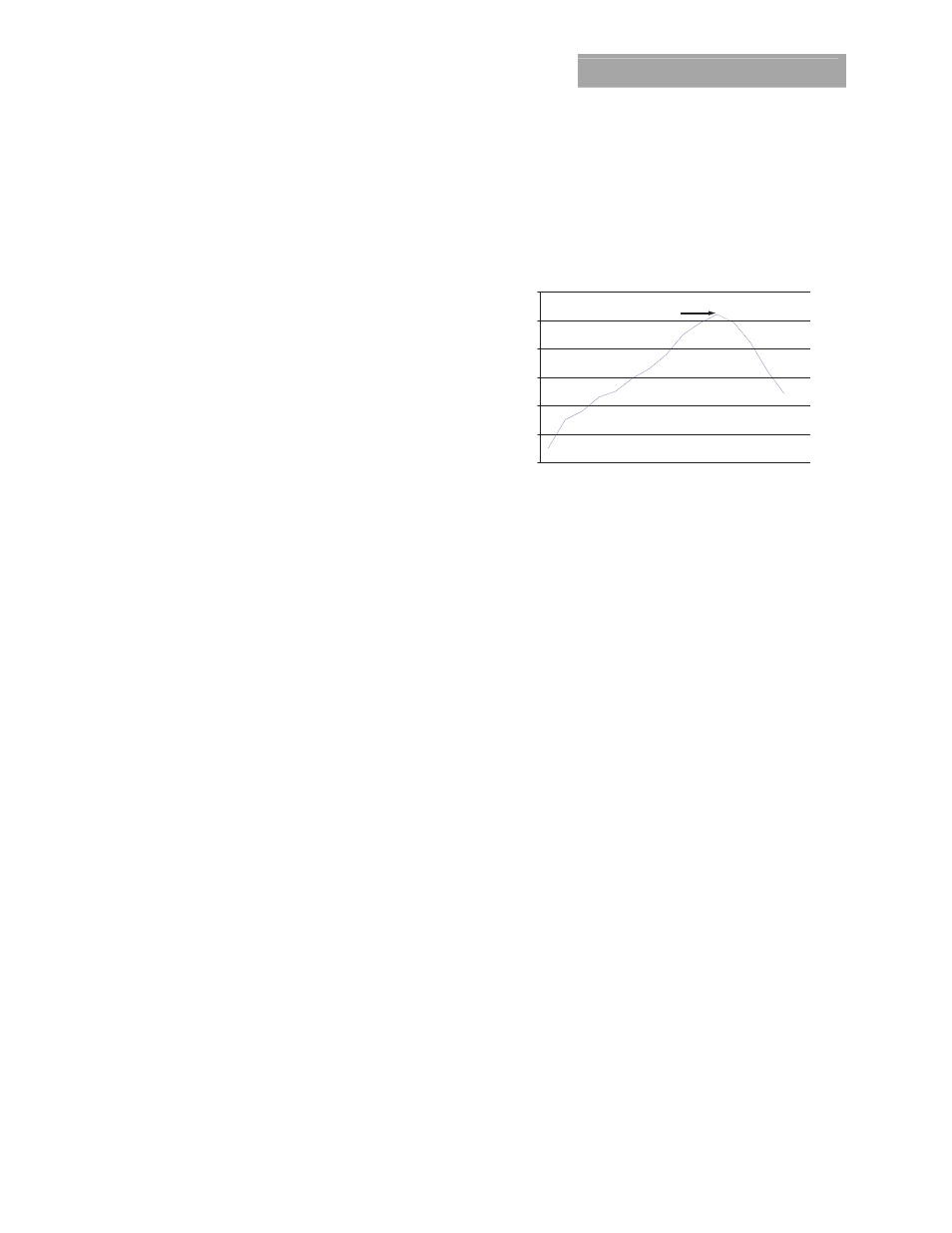

Figure 50. Recommended linear reflow profile using
Sn/Ag/Cu solder.
Post Solder Cleaning and Drying Considerations
Post solder cleaning is usually the final circuit-board
assembly process prior to electrical board testing. The result
of inadequate cleaning and drying can affect both the
reliability of a power module and the testability of the
finished circuit-board assembly. For guidance on
appropriate soldering, cleaning and drying procedures, refer
to Board Mounted Power Modules: Soldering and Cleaning
Application Note (AN04-001).
Per J-STD-020 Rev. D
0
50
100
150
200
250
300
Reflow Time (Seconds)
Reflow Temp (°C)
Heating Zone
1°C/Second
Peak Temp 260°C
* Min. Time Above 235°C
15 Seconds
*Time Above 217°C
60 Seconds
Cooling
Zone
