Installation, Preparation, Safety – GE Industrial Solutions 664 Infinity C DC to DC Power System User Manual
Page 6
663 / 664E Installation Guide
CC848921016 r02 December 2012
Page 6
Installation
Preparation
Safety
Read and follow all safety statements, warnings, and precautions in the Safety section of this manual and manuals of
all other equipment before installing, maintaining or repairing the equipment. Product manuals contain additional
safety statements, warnings, and precautions specific to the products.
Installation Tools
Even though most initial installations are performed while the system is turned off, the use of properly insulated tools
are recommended.
• Wire Cutters and Strippers
• SAE Socket Sets
• Digital Meter, +/- 0.02% accuracy
• Screw Drivers (flat-blade and Phillips)
• Torque Wrench (0-240 in-lb / 28 Nm)
• ESD Wrist or Heel Strap
Installation
Step 1
Mount Shelf

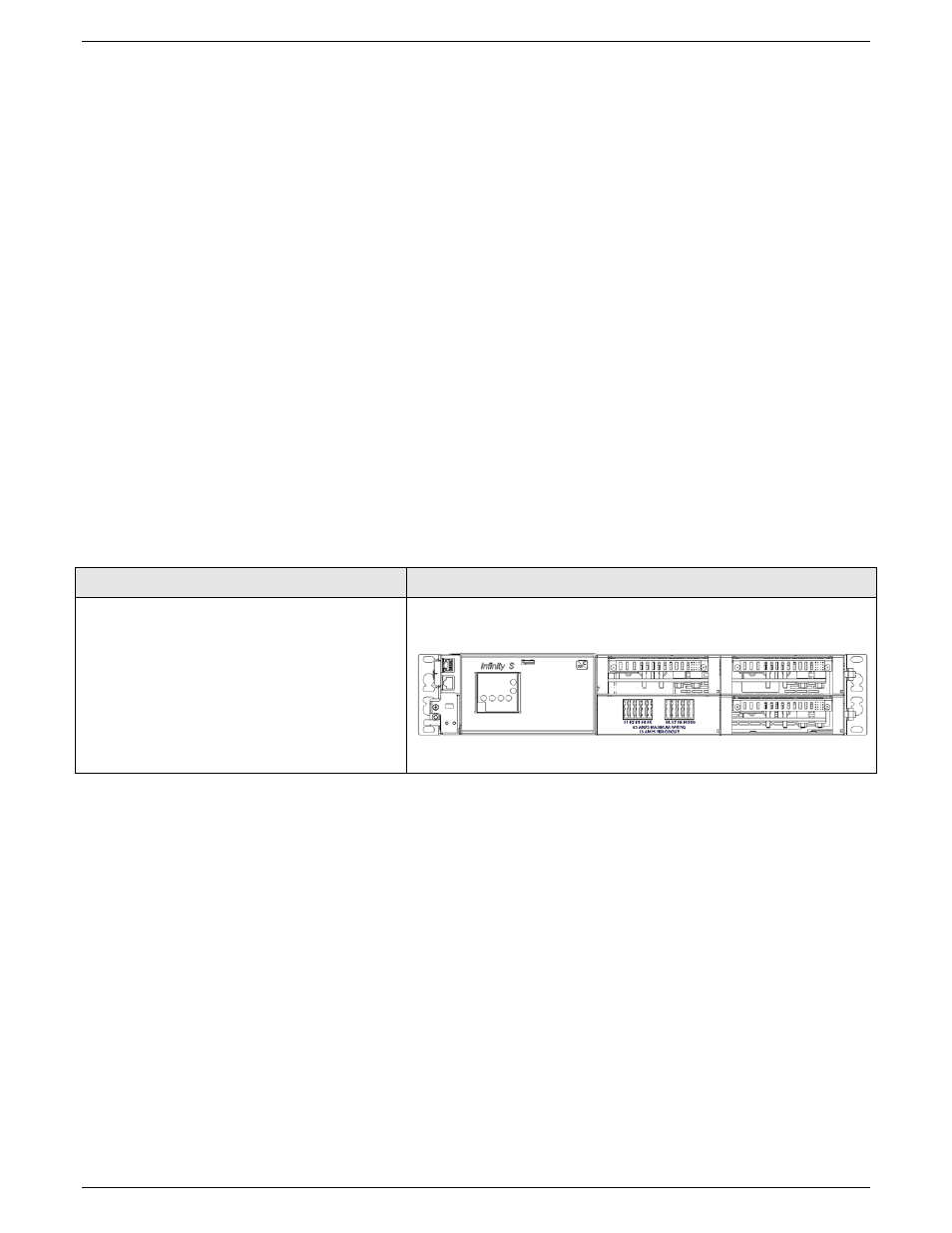

Shelf Mounting
• The 663/664 shelf power system
mounts in a 19 inch relay rack.
Additional brackets are required for 23
inch mounting
19 inch mounting
