GE Industrial Solutions NH020-Series User Manual
Page 6
Lineage Power
6
Data Sheet
October 14, 2009
5 Vdc Input; 1.5 Vdc to 3.3 Vdc Output; 20 W
NH020-Series Power SIPs:
Characteristic Curves

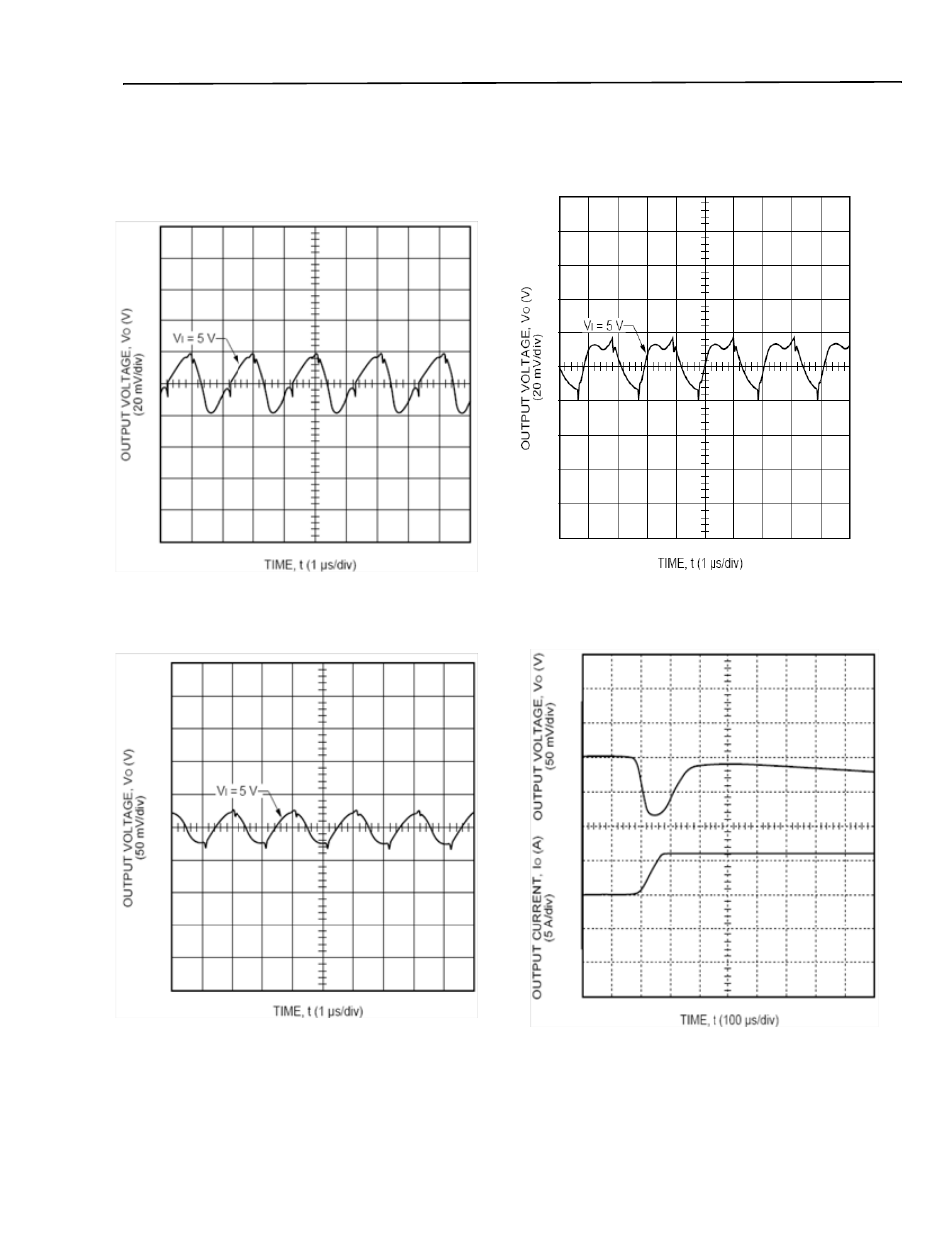

The following figures provide typical characteristics curves at room temperature (TA = 25 °C)
Figure 7.
Typical Output Ripple Voltage fo NH020M
(6A Output Current).
Figure 8.
Typical Output Ripple Voltage for NH020Y
(6A Output Current).
Figure 9.
Typical Output Ripple Voltage for NH020F,G
(6A Output Current).
Figure 10. Typical Transient response to Step load
change from 0% to 100% of I0,max at 5V
Input .
