Data Sheet
October 5, 2009
NaOS
TM

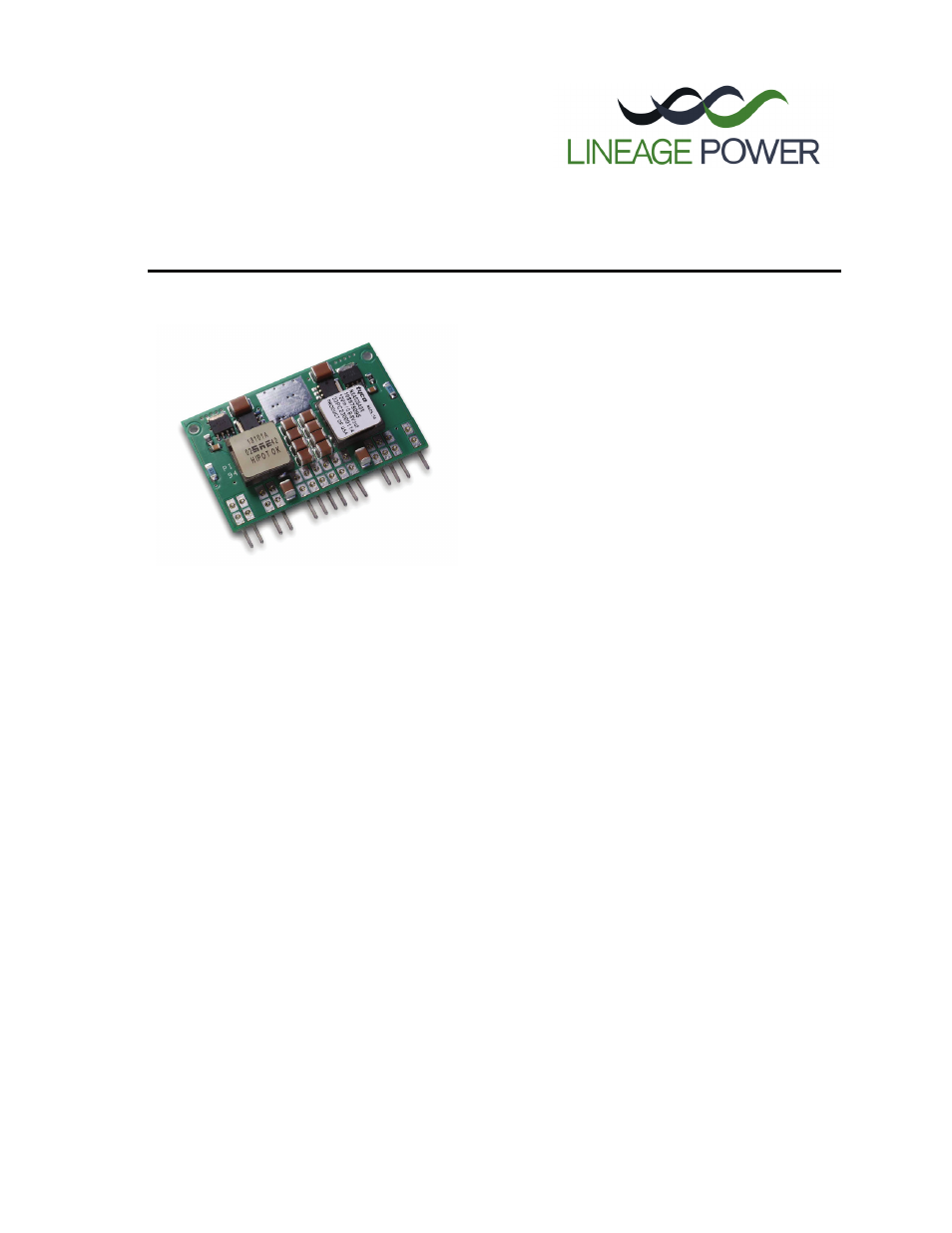

NXA025 SIP Non-isolated Power Modules:
10Vdc – 14Vdc Input; 0.8Vdc to 5.5Vdc Output; 25A Output Current
*
UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS05-034 ver 1.53
PDF name: nxa025_sip_ds.pdf
Applications
Distributed power architectures
Intermediate bus voltage applications
Telecommunications equipment
Servers and storage applications
Networking equipment
Enterprise Networks
Latest generation IC’s (DSP, FPGA, ASIC)
and Microprocessor powered applications
Features
Compliant to RoHS EU Directive 2002/95/EC (-Z
versions)
Compliant to ROHS EU Directive 2002/95/EC with
lead solder exemption (non-Z versions)
Delivers up to 25A output current
High efficiency – 93% at 3.3V full load
Small size and low profile:
31.7 mm x 50.8 mm x 8.50 mm
(1.25 in x 2.00 in x 0.335 in)
Low output ripple and noise
Constant switching frequency (500 kHz)
Output voltage programmable from 0.8 Vdc to
5.5Vdc via external resistor
Remote On/Off
Remote Sense
Parallel operation with current sharing (-P option)
Output voltage sequencing (multiple modules)
Output overvoltage protection
Overtemperature protection
Output overcurrent protection (non-latching)
Wide operating temperature range (-40°C to
85°C)
UL* 60950-1Recognized, CSA
†
C22.2 No. 60950-1-
03 Certified, and VDE
‡
0805:2001-12 (EN60950-1)
Licensed
ISO** 9001 and ISO 14001 certified manufacturing
facilities
Description
The NXA025 series SIP (single-in line package) power modules are non-isolated dc-dc converters that can deliver
up to 25A of output current with full load efficiency of 93% at 3.3Vdc output voltage. These modules provide a
precisely regulated output voltage from 0.8Vdc to 5.5Vdc, programmable via an external resistor. The open-frame
construction and small footprint enable designers to develop cost- and space-efficient solutions. Standard features
include remote On/Off, adjustable output voltage, remote sense, output voltage sequencing of multiple modules,
over current, over voltage, and over temperature protection.
RoHS Compliant
