Data Sheet
December 6, 2010
Naos Raptor 3A: Non-Isolated DC-DC Power Modules
4.5Vdc –14Vdc input; 0.59Vdc to 6Vdc Output; 3A Output Current
* UL is a registered trademark of Underwriters Laboratories, Inc.
† CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS06-124 ver. 1.11
PDF name: NSR003A0X_ds.pdf
Features
 Compliant to RoHS EU Directive 2002/95/EC (Z
versions)
 Compatible in a Pb-free or SnPb wave-soldering
environment (Z versions)
 Wide Input voltage range (4.5Vdc-14Vdc)
 Output voltage programmable from 0.59 Vdc to 6Vdc
via external resistor
 Tunable Loop TM to optimize dynamic output voltage
response
 Fixed switching frequency
 Output overcurrent protection (non-latching)
 Over temperature protection
 Remote On/Off
 Cost efficient open frame design
 Small size: 10.4 mm x 16.5 mm x 7.84 mm
(0.41 in x 0.65 in x 0.31 in)
 Wide operating temperature range (-40°C to 85°C)
 UL* 60950-1Recognized, CSA † C22.2 No. 60950-1-
03 Certified, and VDE ‡ 0805:2001-12 (EN60950-1)
Licensed
 ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
 Distributed power architectures
 Intermediate bus voltage applications
 Telecommunications equipment
 Servers and storage applications
 Networking equipment
 Industrial applications
Description

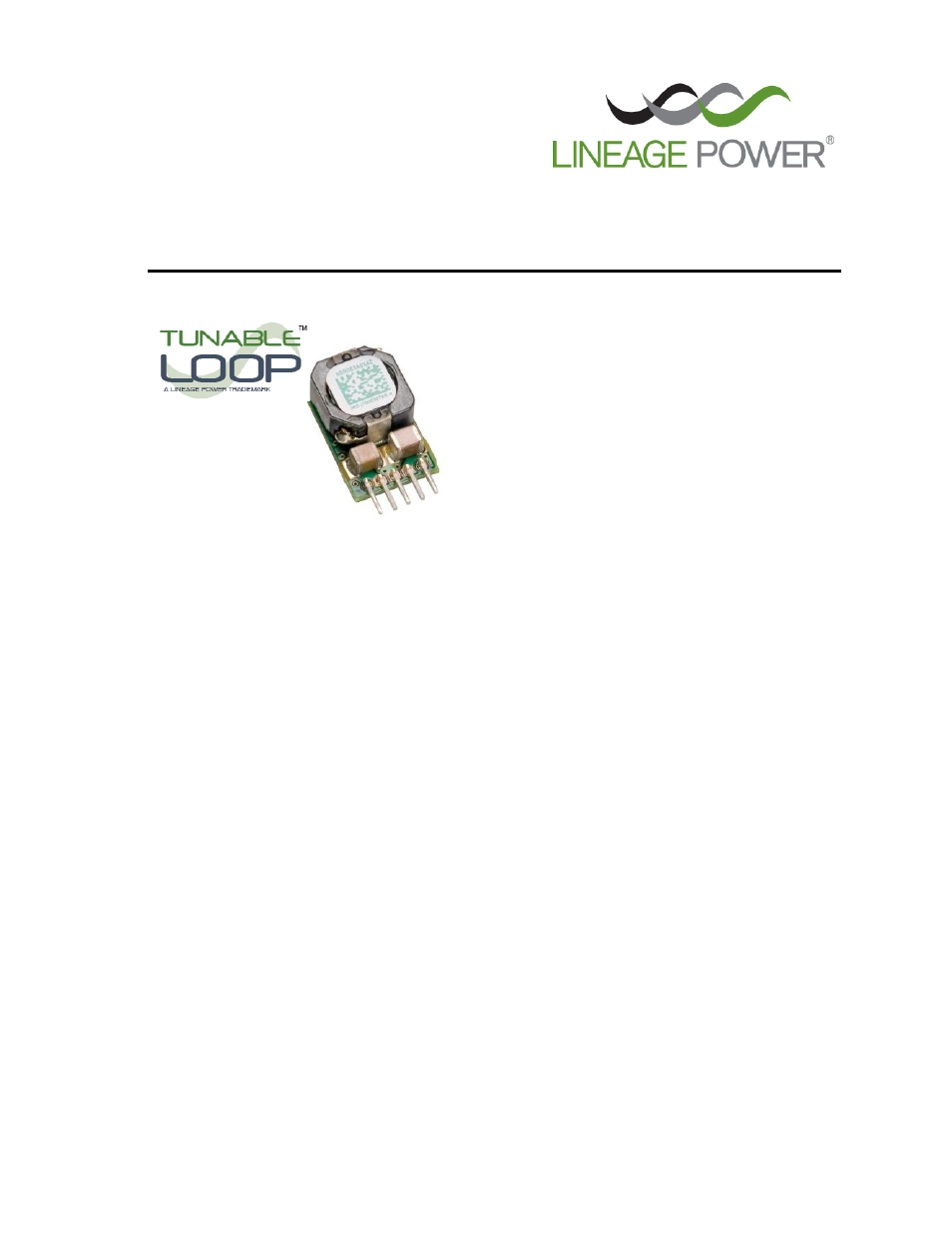

The Naos Raptor 3A SIP power modules are non-isolated dc-dc converters in an industry standard package that
can deliver up to 3A of output current with a full load efficiency of 93% at 3.3Vdc output voltage (V
IN
= 12Vdc).
These modules operate over a wide range of input voltage (V
IN
= 4.5Vdc-14Vdc) and provide a precisely regulated
output voltage from 0.59Vdc to 6Vdc, programmable via an external resistor. Features include remote On/Off,
adjustable output voltage, over current and over voltage protection. A new feature, the Tunable Loop
TM , allows the
user to optimize the dynamic response of the converter to match the load.
RoHS Compliant
