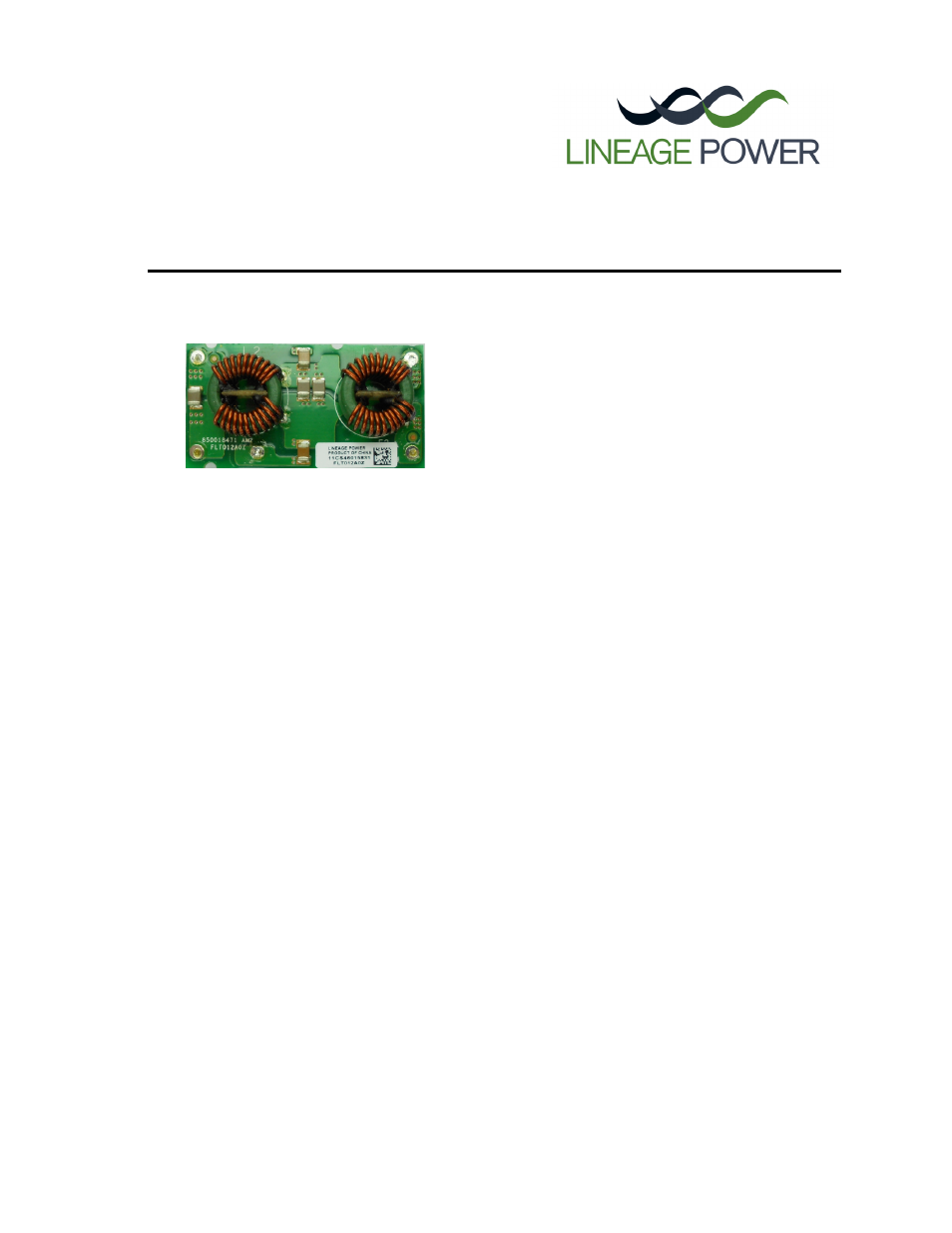

FLT012A0Z/FLT012A0-SZ Input Filter Modules
75Vdc Input Voltage Maximum; 12A Output Current Maximum
* UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
§ This product is intended for integration into end-user equipment . All of the required procedures of end-use equipment should be followed.
Document No:DS11-026 ver 1.2
PDF name: FLT012A0Z_FLT012A0-SZ_ds.pdf
Features
 Compliant to RoHS EU Directive 2002/95/EC (Z
versions)
 Compatible in a Pb-free or SnPb reflow environment
(Z versions)
 Surface Mount and Through hole versions
 Common-mode and Differential-mode filtering
 Small size and low profile
48.3 mm x 25.4 mm x 11.7 mm
(1.9 in x 1.0 in x 0.46 in)
 Same footprint as FLTR100V10 module
 Cost efficient open frame design
 Wide operating temperature range (-40°C to +85°C)
 Meets the voltage isolation requirements for
ETSI 300-132-2
 UL* 60950-1, 2 nd Ed. Recognized, CSA † C22.2 No.
60950-1-07 Certified, and VDE ‡ (EN60950-1, 2 nd Ed.)
Licensed
 CE mark meets 2006/95/EC directives §
 ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
 Distributed power architectures
 Wireless Networks
 Enterprise Networks
 Access and Optical Network Equipment
Options
 Surface Mount Interconnect (-S)
Description
The Filter module shall be designed to operate over an input voltage range up to 75Vdc at output current
of 12A in an ambient temperature of -40ºC to 85ºC. The filter module shall be optimized for use with
dc/dc converter modules, to significantly reduce the conducted differential and common-mode noise
returned to the power source. The filter module shall enable designers to meet the requirements of EMI
standards CISPR 22 (EN55022) and FCC Class B by inserting in-line between the power source and the
dc/dc converter module. These modules shall be designed and manufactured to be either surface
mounted
(-S version) or through hole mounted on PCBs.
