7
2.5 mm 2 4 mm 2 6 mm 2
451WF02G 451WF04G 451WF06G
Max Wire Size (Fine Stranded) 12 AWG/2.5 mm 2 10 AWG/4 mm 2 8 AWG/6 mm 2
UL 600V 22-12 AWG 20A 22-10 AWG 30A 22-8 AWG 40A
CSA 600V 24-12 AWG 25A 20-10 AWG 35A 20-8 AWG 45A
Block Width 0.20” (5 mm) 0.24” (6 mm) 0.31” (8 mm)
Wire Stripping Length 0.43” (11 mm) 0.43” (11 mm) 0.47” (12 mm)
Item Description Cat. No.
List Price,
GO-10CB
Std.
Pkg.
Cat. No.
List Price,
GO-10CB
Std.
Pkg.
Cat. No.
List Price,
GO-10CB
Std.
Pkg.
Block
Gray 451WF02G $132.36 100 451WF04G $162.78 100 451WF06G $256.56 100
Blue 451WF02B 132.36 100 451WF04B 162.78 100 – – –
DIN Rail,
2 m, slotted 35 mm x 7.5 mm 451DR35075SL2 310.56 20 451DR35075SL2 310.56 20 451DR35075SL2 310.56 20
35 mm x 15 mm 451DR35015SL2 221.20 10 451DR35015SL2 221.20 10 451DR35015SL2 221.20 10
End Clamps
(35 mm) 8 mm –
Screwless
451WFXEC3508X 79.76 100 451WFXEC3508X 79.76 100 451WFXEC3508X 79.76 100
End Plates 1.5 mm Thick 451WFXAP0401S1G 5.47 10 451WFXAP0401S1G 5.47 10 – – –
Cross
Connectors
2 Pole 451WFXJC0202S 25.83 10 451WFXJC0402S 13.75 10 451WFXJC0602S 15.95 10
3 Pole 451WFXJC0203S 31.55 10 451WFXJC0403S 16.64 10 – – –
10 Pole 451WFXJC0210S 69.33 20 451WFXJC0410S 70.98 20 – – –
10 mm 2 16 mm 2
451WF10G 451WF16G
Max Wire Size (Fine Stranded) 6 AWG/10 mm 2 4 AWG/16 mm 2
UL 600V 14-6 AWG 55A 12-4 AWG 75A
CSA 600V 14-6 AWG 65A 14-4 AWG 75A
Block Width 0.39” (10 mm) 0.47” (12 mm)
Wire Stripping Length 0.51” (13 mm) 0.58” (15 mm)
Item Description Cat. No. List Price, GO-10CB Std. Pkg. Cat. No. List Price, GO-10CB Std. Pkg.
Block Gray 451WF10G $167.83 50 451WF16G $224.42 50
DIN Rail,
2 m, slotted 35 mm x 7.5 mm 451DR35075SL2 310.56 20 451DR35075SL2 310.56 20
35 mm x 15 mm 451DR35015SL2 221.20 10 451DR35015SL2 221.20 10
End Clamps (35 mm) 8 mm - Screwless 451WFXEC3508X 79.76 100 – – –

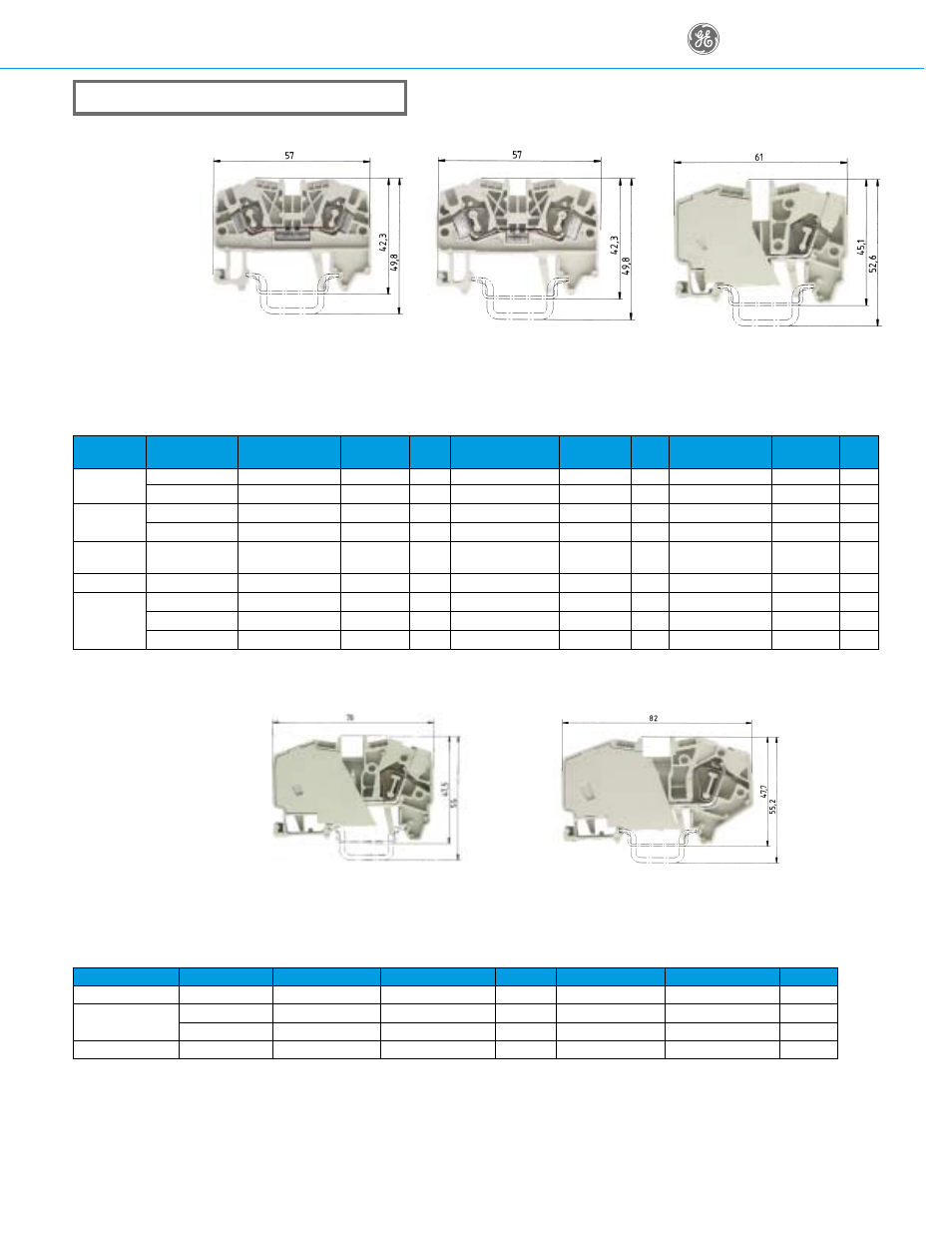

SINGLE TERMINAL BLOCK – SPRING TYPE
451 Series Terminal Blocks
EN 60947-7-1
DIN VDE 0611T1
List prices are per standard package quantity. Orders must be standard package quantity or multiples thereof.
For ferrules, terminal strips, and marking labels and tags, see page 18.
For additional wire size data, see inside back cover.
