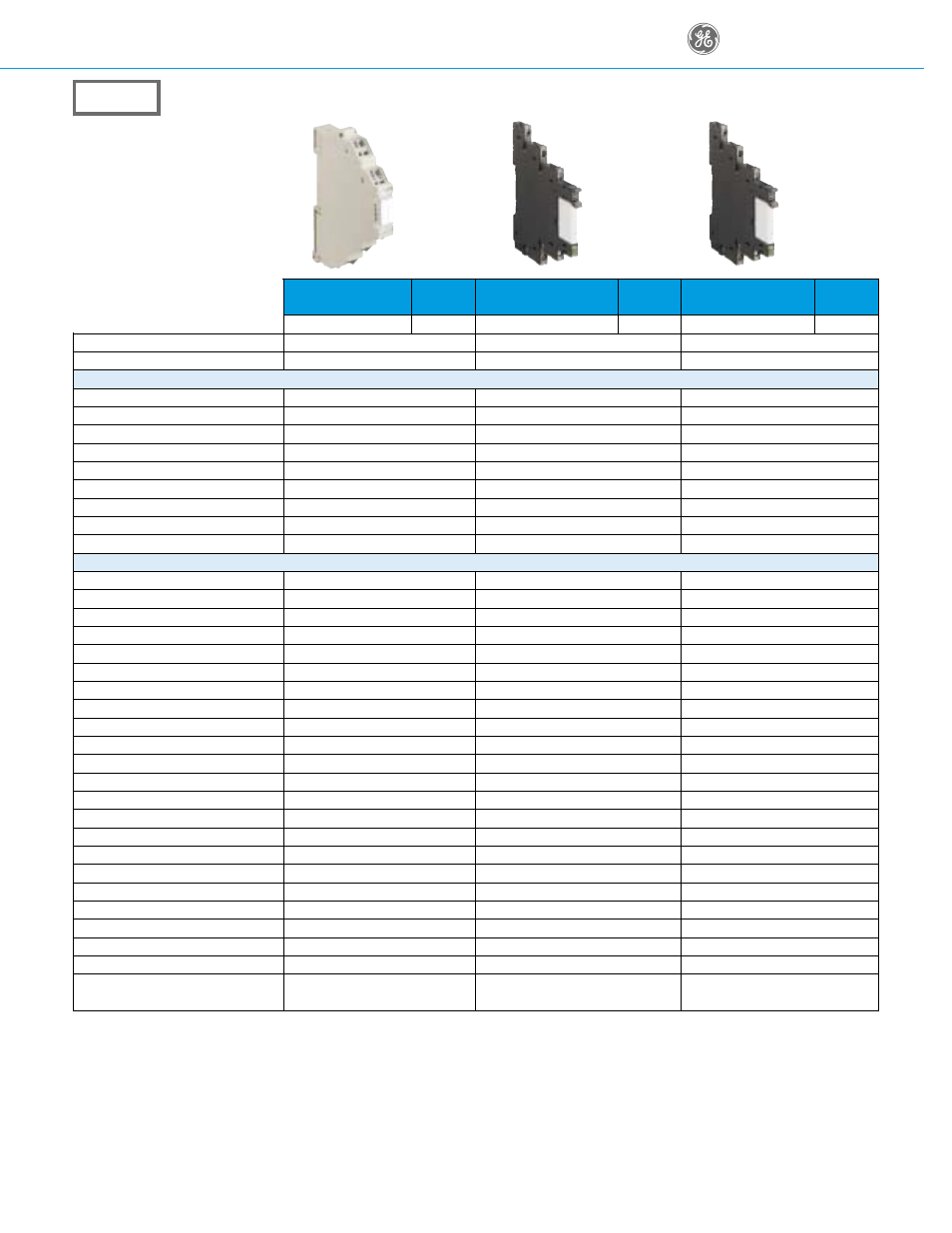

GE Industrial Solutions 451 Series Terminal Blocks - Manual (Page 15)

13
Cat. No.
List Price,
GO-10CB
Cat. No.
List Price,
GO-10CB
Cat. No.
List Price,
GO-10CB
451WFPR2D02 $66.89 451WFPR1D01 $25.70 451WFPR2D01 $25.99
Type DPDT Pluggable relay Pluggable relay
Dimensions (mm) W x H x D 6.2 x 89 x 70 6.2 x 88 x 76 6.2 x 88 x 76
Coil circuit
Nominal operating voltage
24V DC 12V DC 24V DC
Maximum operating voltage — 14.4V DC 28.8V DC
Minimum operating voltage — 9.8V DC 18.2V DC
Nominal input current ca. 14 mA 15.2 mA 9.4 mA
Nominal input capacity AC / DC ca. 0.35 W 0.2 W 0.23 W
Holding current at 20°C > 1.2 mA — —
Operating range — (0.7 ... 2.2) UN (0.7 ... 2.2) UN
Connectable via plug-in jumper 50 modules 20 modules 20 modules
Status display LED green LED green LED green
Switching characteristics
Maximum switching voltage
250V AC / 300V DC 400V AC 400V AC
Nominal switching voltage — 250V AC 250V AC
Maximum switching current 6A AC / 2A DC 6A AC / DC 6A AC / DC
Maximum switching capacity 1500 VA / 48 W 1500V A / 150 W 1500V A / 150 W
Maximum starting current 10A (4 sec.) 30A (0.5 sec.) 30A (0.5 sec.)
Pickup/dropout delay (including chatter) 8 ms / 10 ms 7 ms / 11 ms 7 ms / 11 ms
Maximum switching frequency 20 Hz 20 Hz (without load); 0.1 Hz (at full load) 20 Hz (without load); 0.1 Hz (at full load)
Contact material AgSnO2 AgSnO2 AgSnO2
Minimum switchable voltage 24V 12V AC / DC 12V AC / DC
Minimum switchable current 5 mA 10 mA AC / DC 10 mA AC / DC
Minimum switching capacity — 500 mW 500 mW
Mechanical endurance 2 x 10 7 1 x 10 7 1 x 10 7
Electrical endurance at 24V DC / 2A 6 x 10 5 — —
Electrical endurance at 230V AC / 6 A 8 x 10 4 6 x 10 4 6 x 10 4
Rated voltage — 250V 250V
Isolation voltage of input/output 4 kV
eff.
4 kV
eff.
4 kV
eff.
Overvoltage category III (in accordance with HD 625.1S1) III (in accordance with HD 625.1S1) III (in accordance with HD 625.1S1)
Degree of pollution 2 (in accordance with HD 625.1S1) 2 (in accordance with HD 625.1S1) 2 (in accordance with HD 625.1S1)
Ambient temperature 0°C...+50°C 0°C...+50°C 0°C...+50°C
Storage temperature -40°C...+55°C -40°C...+55°C -40°C...+55°C
Protection type/mounting rail IP 20 / TS35 IP 20 / TS35 IP 20 / TS35
Emitted interference/interference immunity EN 61000-6-3; EN 61000-6-2 — —
Wire range of screw terminal: finely
stranded/single core
0.14 mm 2 - 1.5 mm 2 0.14 mm 2 - 1.5 mm 2 0.14 mm 2 - 1.5 mm 2
RELAYS
451 Series Terminal Blocks
EN 60947-7-1
DIN VDE 0611T1
