15
Cat. No.
List Price,
GO-10CB
Cat. No.
List Price,
GO-10CB

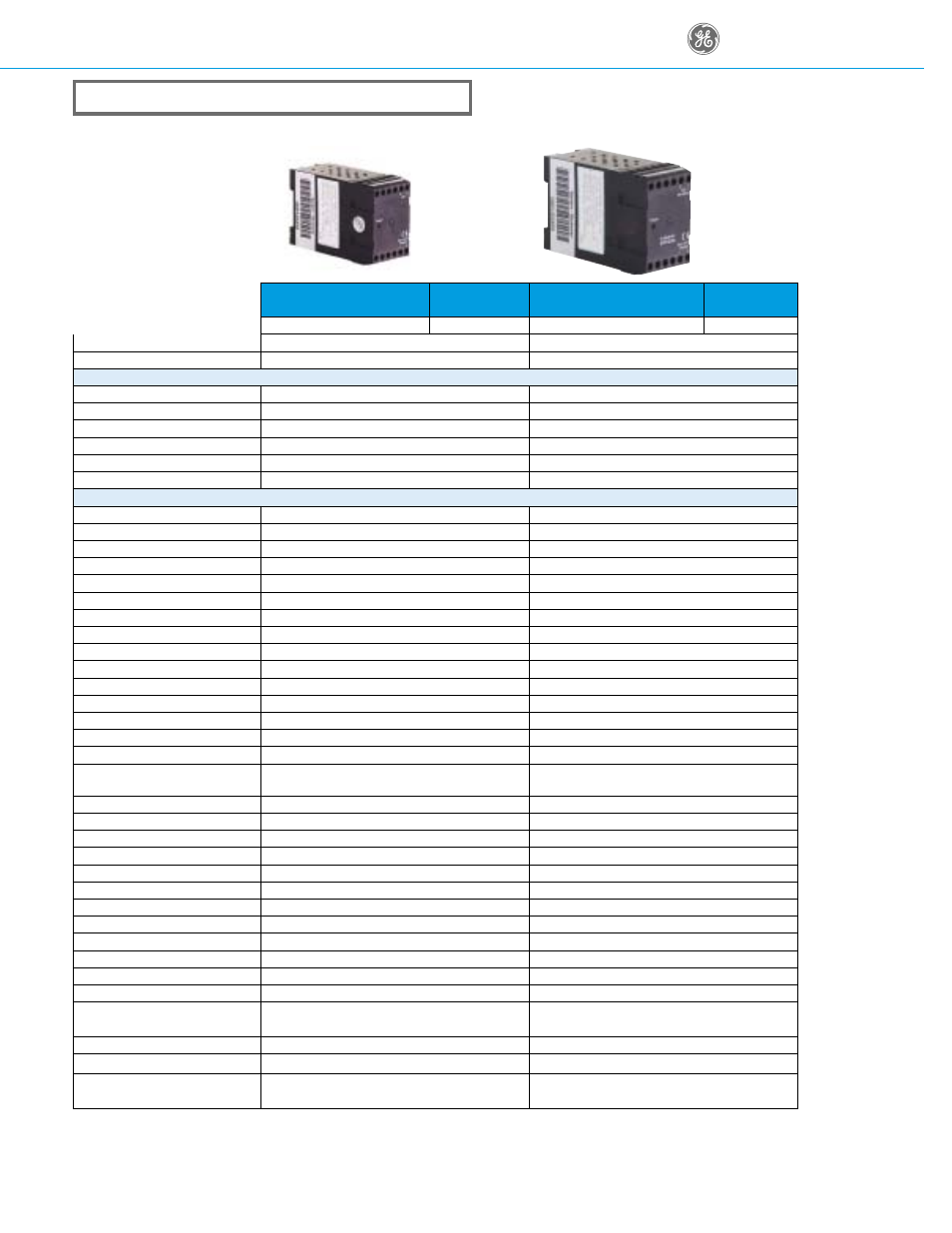

451WPS02S $272.35 451WPS05S $491.06
Description 48W power supply, 24V 2A 120W power supply, 24V 5A
Dimensions (mm) W x H x D 45 x 72 x 105 70 x 138 x 139
Input
Nominal input voltage
110 230V AC, 47 63 Hz (universal input) 115/230V AC, 47 63 Hz (selectable input)
Input voltage range 94 265V AC 93 132V AC, 187 265V AC
Nominal input current 0.6A at 230V AC/1.1A at 115V AC 0.9A at 230V AC/2.2A at 115V AC
Input current peak I/t < 1.5A/s < 30A
Power factor cos w 0.45 capacitive at 230V AC/0.5 capacitive at 115V AC 0.5 capacitive at 230V AC/0.58 capacitive at 115V AC
PFC standard (harmonics) — EN 61000-3-2
Output
Output voltage
24 V ±3% 24 V ±1%
Typical output setting range — 22 30V DC
Output direct current 0 2A 0 5A
Max. power output — 120W (when set to 30V max. 4A)
Ripple < 50 mV < 50 mV
Typical current limitation 2.5A 6A
Parallel operation Yes Yes
Efficiency, typical 89% 89%
Hold-up time > 70 ms / 230V AC; > 10 ms / 115V AC > 20 ms / 230V AC; > 15 ms / 115V AC
Line regulation < 0.2% at UON ±15% < 0.2% at UON ±15%
Load regulation < 1% at 0A -> >I
nominal
< 1% at 0A -> >I
nominal
Dynamics < 2 ms at 10 < > 90% I nominal < 2 ms at 10 < > 90% I nominal
Current limitation Permanently short-circuit proof Permanently short-circuit proof
Overrun-proof/open-circuit proof Yes Yes
Output overcurrent switch-off Yes Yes
Output security
VDE 0805/EN 60950/IEC 950/UL 1959
Safety extra-low voltage (SELV) EN 60950 VDE 0805/EN 60950/IEC 950/UL 1959
Safety extra-low voltage (SELV) EN 60950
Class of protection Class I at 149002-31001/149002-21001 Class I at 149002-31001/149002-21001
Degree of protection IP 20 IP 20
Leakage current < 0.25 mA (47 -63 Hz mains frequency) < 0.75 mA (47 -63 Hz mains frequency)
Ambient temperature 10 °C...+70 °C at free convection 10 °C...+70 °C at free convection
Power derating 2.5%/K from +60°C 2.5%/K from +60°C
Storage temperature 25°C...+85°C 25°C...+85°C
EMC CE-certified EN 55011, EN 50082-1/-2 EN 55011, EN 50082-1/-2
Radio interference suppression EN 55011/EN 55022 class B EN 55011/EN 55022 class B
Static discharge ESD (IEC 1000-4-2) 8 KV contact discharge, 15 KV air discharge 8 KV contact discharge, 15 KV air discharge
Electromagnetic fields (IEC 1000-4-3) 10 V/m 10 V/m
Burst (IEC 1000-4-4) 4 kV input, 2 kV output / capacitive coupling 4 kV input, 2 kV output / capacitive coupling
Surge (IEC 1000-4-5) 4 kV unbalanced, 4 kV balanced 4 kV unbalanced, 4 kV balanced
Controlled interference type
(ENV 50141, IEC 1000-4-6)
10V, 150 kHz...80 MHz 10V, 150 kHz...80 MHz
Weight Approx. 0.2 kg Approx. 0.9 kg
Installation Slide for mounting to DIN rail DIN EN 50022-35 Slide for 2 mounting to DIN rail DIN EN 5002-35
Installation position
Panel-mounted; input connectors on top, output
connectors at the bottom Panel-mounted; input connectors on top, output
connectors at the bottom
POWER SUPPLIES – SINGLE-PHASE SWITCH MODE
451 Series Terminal Blocks
EN 60947-7-1
DIN VDE 0611T1
