ZNET901 Extension Unit for Annunciator

1. Remove cover panel (see Figure below).
2. Mount extension unit no further than 2' - 0" (two feet) from ZNET900(A/B).
3. Connect extension unit to ZNET900(A/B) by wiring the 4 wires to the slots

designated for COM, 5VDC, clock and data. Be sure to match the wire colors.

4. Reinstall cover.

NOTE:

Extension unit does not require network or power connections.

ANNUNCIATOR PCB’s

SW3

#14

SW3

#13

SW3

#12

SW3

#11

SW3

#10

SW3

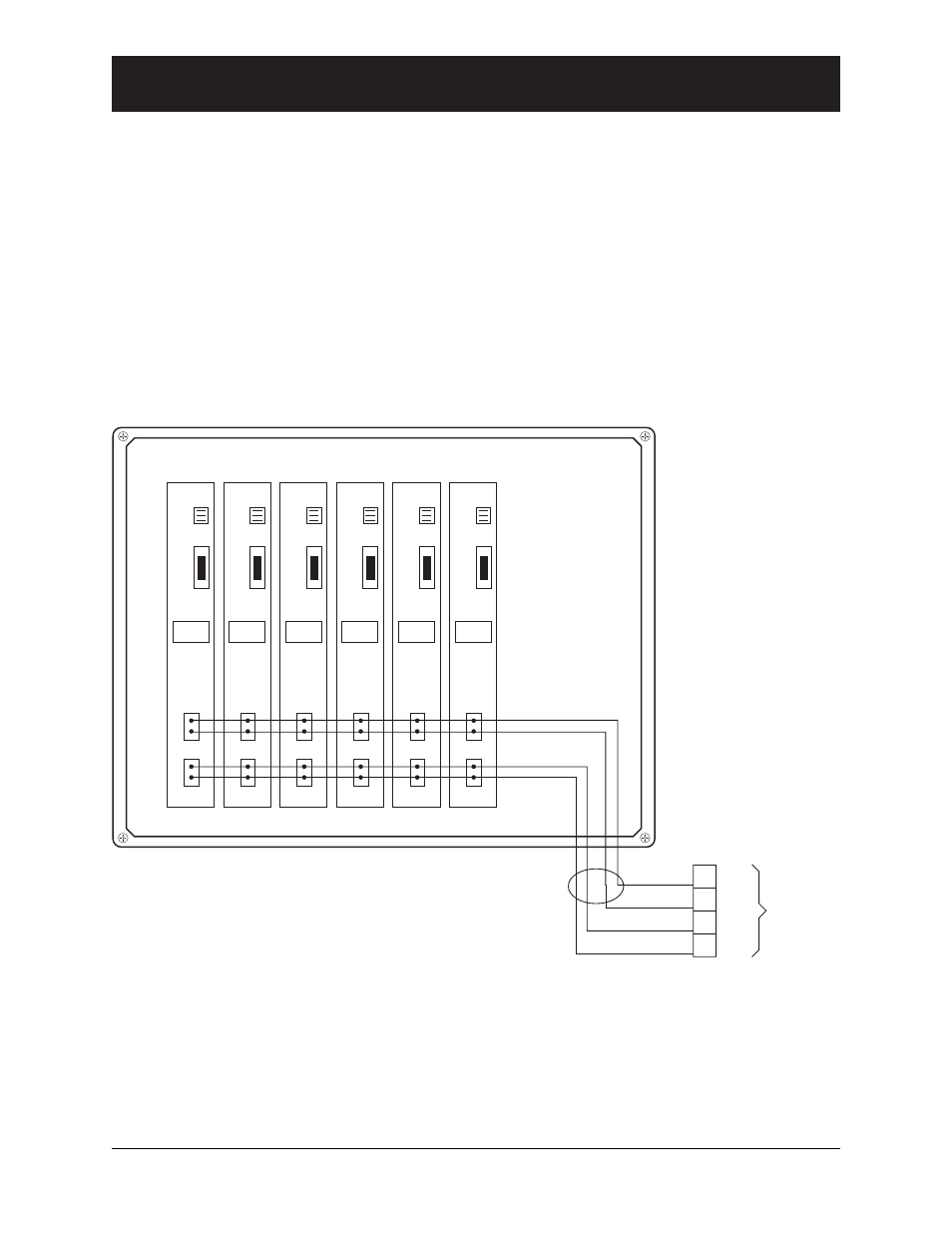

COM

+5V

Clock

Data

Black

Red

White

Green

CONNECT TO
ZNET900(A/B)

(SEE PAGE 2)

■

Zenith Controls, Inc. ZNET900A, ZNET900B and ZNET901 Operation and Maintenance Manual (18R-1000)

■
