Installation, Znet900(a/b) annunciator – GE Industrial Solutions ZNET901 User Manual
Page 4
Installation
ZNET900(A/B) Annunciator

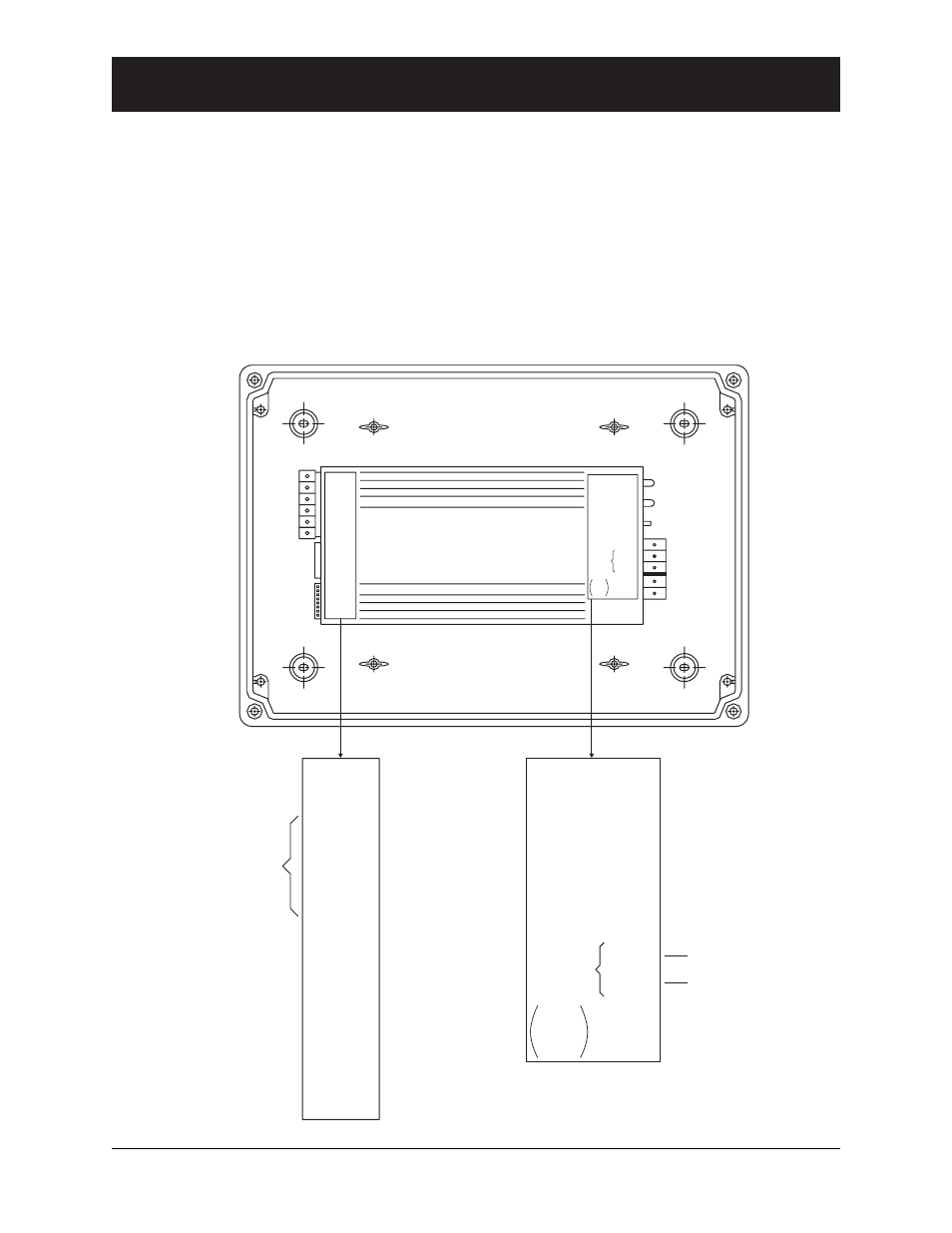

1. Remove cover panel (see Figure below).
2. Mount unit to wall.
3. Connect network connection as shown.
4. Connect power input as shown.
5. Reinstall cover.
POWER LED
SERVICE LED
GROUND
POWER
POWER
NETWORK
NETWORK
SERVICE SWITCH
SW1
SERIAL
PRINTER
PORT
DATA
CLOCK
+5V
COM
COM
D-IN
24V
AC/DC
24V
POWER LED
SERVICE LED
GROUND
POWER
POWER
CUSTOMER SUPPLIED *
24V AC or DC INPUT
(40 VA REQUIRED)
NETWORK
NETWORK
SERVICE SWITCH
AC/DC
USE
BELDEN
8471
SW1
DIP
SWITCH
SERIAL
PRINTER
PORT
DATA
CLOCK
+5V
COM
COM
D-IN
ZNET901
EXTENSION
CONNECTIONS
(SEE PAGE 3)
USE
BELDEN
8471
■
■
2
ZNET900A, ZNET900B and ZNET901 Operation and Maintenance Manual (18R-1000)
Zenith Controls, Inc.
■
■
* Adapters Available - Contact Factory
