GE Industrial Solutions Neutral Rogowski Current Transformer (CT) User Manual
Page 8
7
Neutral Assemblies Manual
DEH-41531 02/12

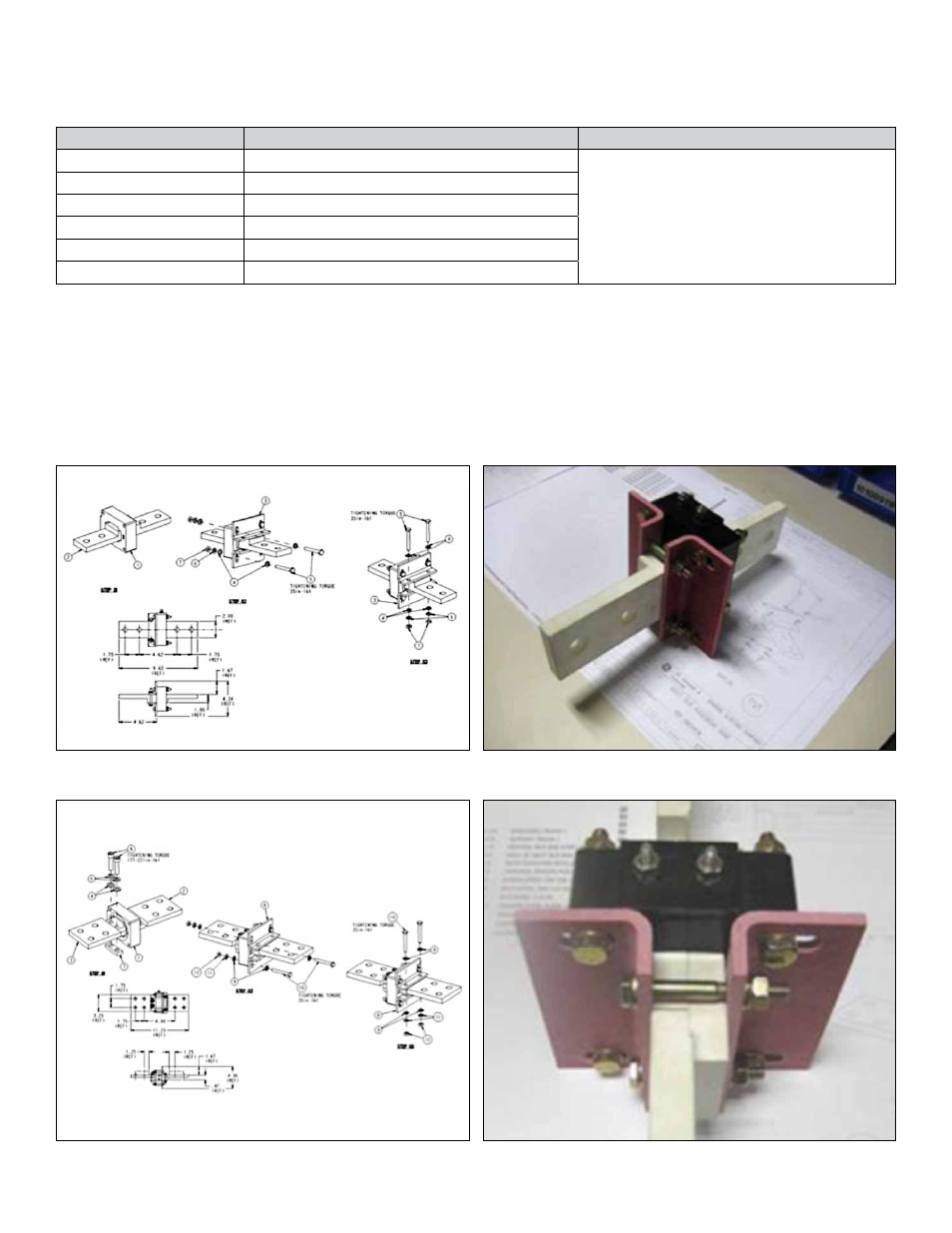

Figure 5. Neutral Bus Rogowski ASM 10108212
Figure 7. Neutral Bus Rogowski ASM 10108216
Figure 6. Neutral Bus Rogowski ASM 10108212 Photo
Figure 8. Neutral Bus Rogowski ASM 10108216 Photo
AKD-6/8—Rogowski Assembly Part Numbers
Table 2. AKD-6—Rogowski Assemblies (Neutral Bus Part Numbers)
Breaker/Switchgear
Rogowski Assembly or Neutral Bus Bar Part Number
Figure References for Assembly Drawings
AKD6 400A
10108266G1
Figure 9.
Neutral Bus Rogowski ASM 10108266
AKD6 600A
10108266G2
AKD6 800A
10108266G3
AKD6 1000A
10108266G4
AKD6 1200A
10108266G5
AKD6 1600A
10108266G6
AKD-6/8—Rogowski Assemblies
•
Figure 5
(assembly drawing with photo,
Figure 6
) displays Rogowski
ASM 10108212.
•
Figure 7
(assembly drawing with photo,
Figure 8
) displays Rogowski
ASM 10108216.
•
Figure 9
(assembly drawing with photo,
Figure 10
) displays Rogowski
ASM 10108266.
