7 EntelliGuard R Circuit Breaker Retrofill AKD-6 Installation Manual DEH-41548 02/12
Views
General Electric AKD-6 Low Voltage Switchgear is a free-standing assembly of metal-enclosed units of power
circuit breakers and other auxiliary power circuit protective devices. It may also be a part of a single-ended or
double-ended load center unit substation. It’s a draw-out breaker. One particular feature of the AKD-6 is that
the breaker is built into the cassette.

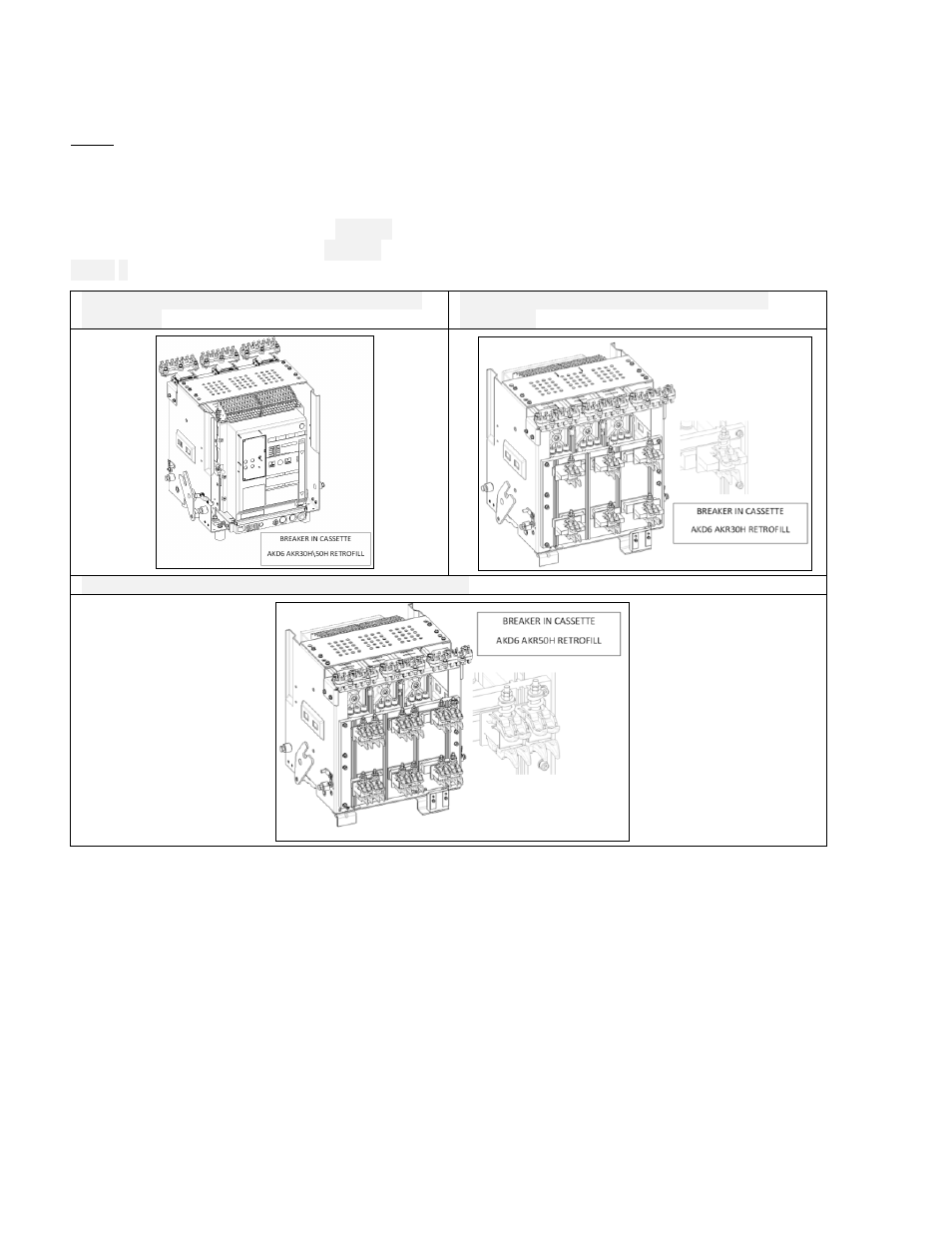

Figure 1 shows the AKD-6 EntelliGuard R Retrofill breaker permanently
encased in its cassette (front view). Figure 2 shows also the AKD-6 EntelliGuard R Retrofill in the cassette (rear view).
Figure 3 presents the AKR50H (AKD-6) with four-fingered clusters.
Figure 1. AKD-6—AKR30H\50H Breaker in Cassette
(Front View) Figure 2. AKD-6—AKR30H Breaker in Cassette
(Rear View)
Figure 3. AKD-6—AKR50H Breaker in Cassette (Rear View)
The EntelliGuard R Circuit Breaker is suitable for application on power systems up to 600 VAC 50/60 Hz systems
and up to 600 Vdc as a main/source breaker, feeder breaker, bus coupler, or tie breaker.
