30 EntelliGuard R Circuit Breaker Retrofill AKD-6 Installation Manual DEH-41548 02/12

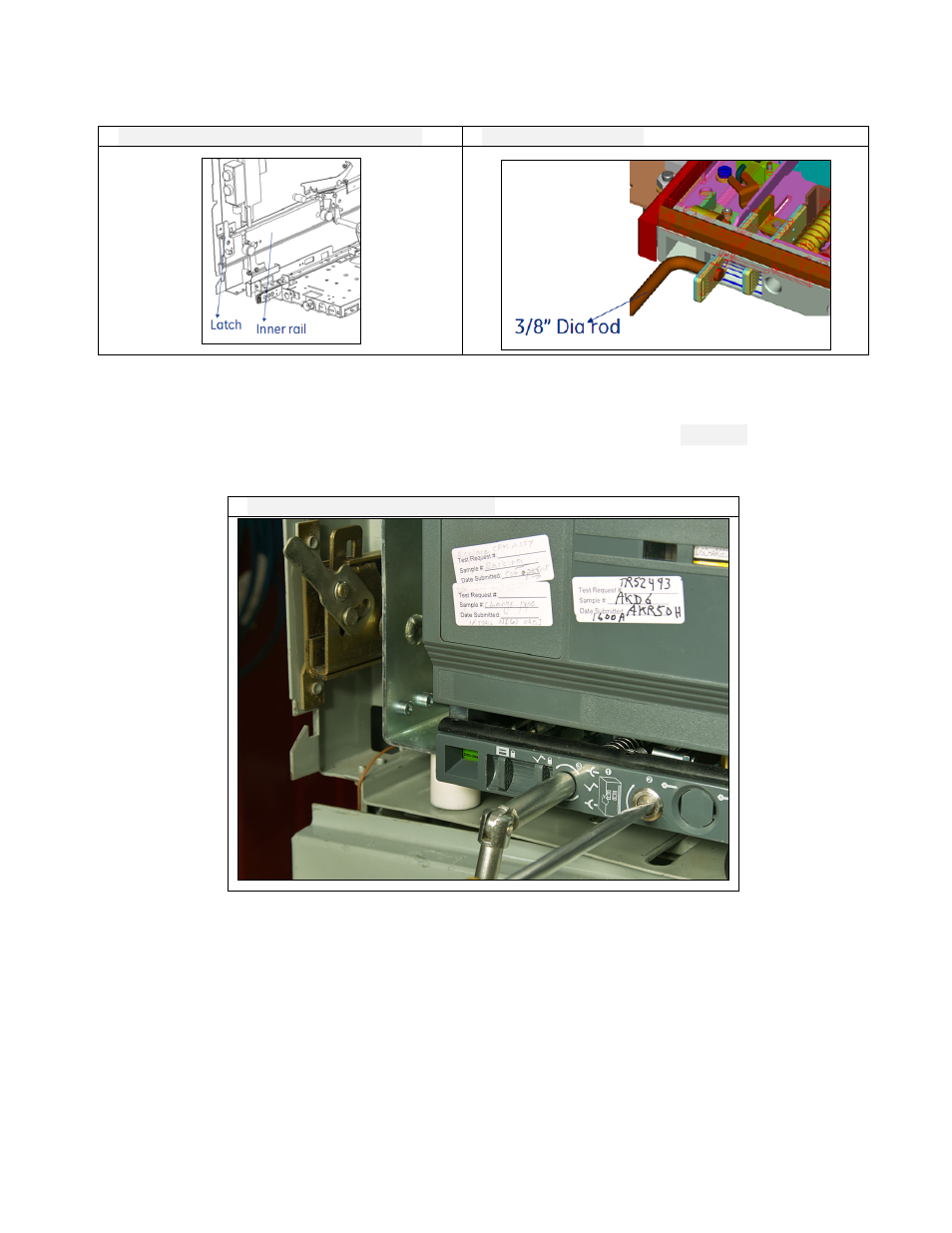

Figure 23. Latching Inner Rail with Outer Rail Figure 24. Inserting Rod
21. Remove the racking tool from the storage location on the retrofill front panel and grab the handle.
22. Pull out the torque bar from inside the handle and extend.
23. Take a blade-type screwdriver, insert it in the slot or rack-out lock of the breaker (
Figure 25 ), and turn it
clockwise 45°to the right so that the racking handle shutter, inside and behind the racking hole, also moves to
the right. (The insertion slot resembles a vehicle ignition lock.)
Figure 25. Racking in AKD6—Retrofill
24. After turning the screwdriver to the right with the shutter sliding to the right, remove the screwdriver and insert
the racking tool in the handle-insertion hole. It’s located on the left side.
25. Insert this tool so it that grabs or engages the racking mechanism inside the hole.
26. Line up the racking tool or crank with the handle straight up so that you can get some good leverage or
torque. Then, crank clockwise so that the retrofill starts to move in, slowly sliding forward into the
compartment.
27. Rotating clockwise racks the circuit breaker all the way into the enclosure.
