Modbus tcp – GE Industrial Solutions AF-600 FP OPCMBTCP Modbus TCP Option User Manual
Page 21

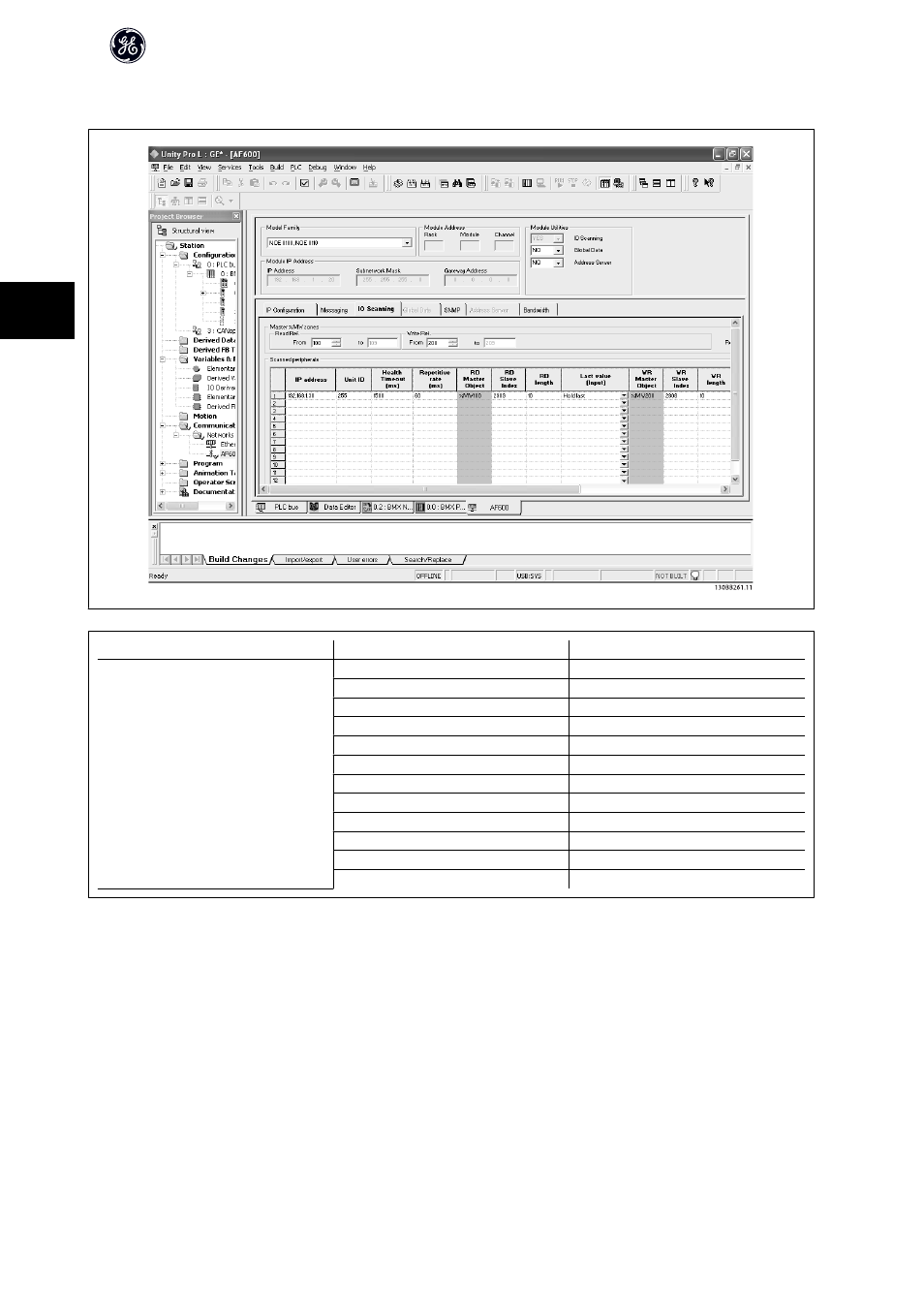

By first selecting the GE network and secondly selecting the IO Scanning tab, the scanning list appears. You will have to fill out the list as shown here
Menu
Menu point
Setting
IO Scanning
IP address
192.168.001.030
Unit ID
255
Health Timeout
1500
Repetitive rate
60
RD Master Object
%MW100
RD Slave Index
50009
RD Length
10
Last Value
Hold Last
VR Master Object
%MW200
VR Slave Index
0
VR Lenght
10
Description
-
This configuration copies the information stored from %MW200 to %M209 in the PLC to the Holding register 50010 to 500019 of the AF-650 GP. It reads the holding
registers 50000 to 50009 of the AF-650 GP to the PLC’s memory %MW100 to %M109
Modbus TCP
20
4
