Data Sheet
October 2, 2009 Austin MiniLynx TM SIP Non-isolated Power Modules:
2.4 – 5.5Vdc input; 0.75Vdc to 3.63Vdc Output; 3A output current
LINEAGE POWER 12
Feature Description
Remote On/Off
The Austin MiniLynx TM SIP power modules feature an
On/Off pin for remote On/Off operation. Two On/Off
logic options are available in the Austin MiniLynx
TM
series modules. Positive Logic On/Off signal, device
code suffix “4”, turns the module ON during a logic High
on the On/Off pin and turns the module OFF during a
logic Low. Negative logic On/Off signal, no device code
suffix, turns the module OFF during logic High on the
On/Off pin and turns the module ON during logic Low.
For positive logic modules, the circuit configuration for
using the On/Off pin is shown in Figure 30. The On/Off
pin is an open collector/drain logic input signal (Von/Off)
that is referenced to ground. During a logic-high
(On/Off pin is pulled high internal to the module) when
the transistor Q1 is in the Off state, the power module is
ON. Maximum allowable leakage current of the
transistor when Von/off = V
IN,max
is 10µA. Applying a
logic-low when the transistor Q1 is turned-On, the
power module is OFF. During this state VOn/Off must
be less than 0.3V. When not using positive logic On/off
pin, leave the pin unconnected or tie to V
IN.
Q1
R2
R1
Q2
R3
R4
Q3 CSS
GND
VIN+
ON/OFF
PWM Enable
+
_
ON/OFF
V
I
ON/OFF
MODULE

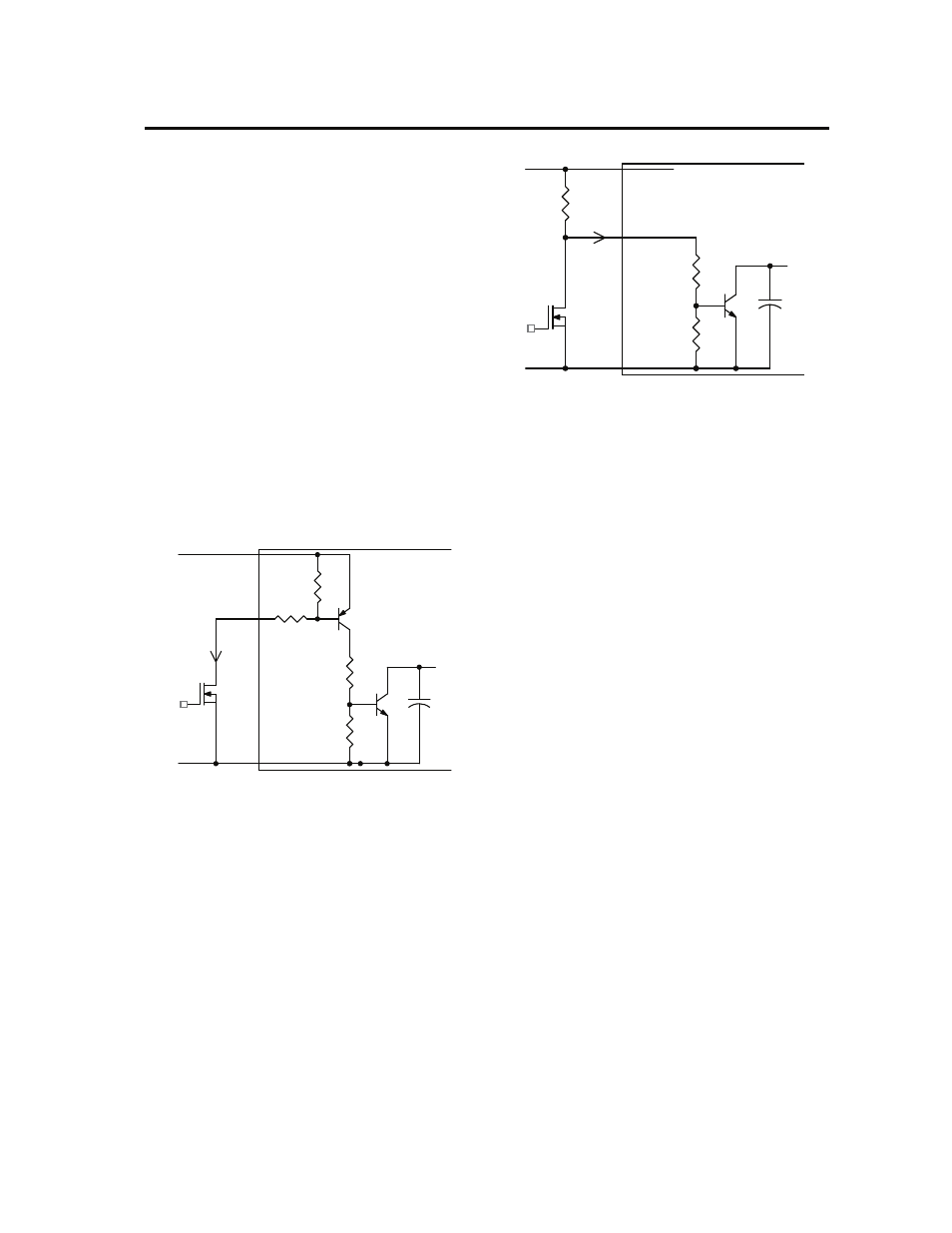

Figure 30. Circuit configuration for using positive
logic On/OFF.
For negative logic On/Off devices, the circuit
configuration is shown is Figure 31. The On/Off pin is
pulled high with an external pull-up resistor (typical R
pull-
up
= 5k, +/- 5%). When transistor Q1 is in the Off state,
logic High is applied to the On/Off pin and the power
module is Off. The minimum On/off voltage for logic
High on the On/Off pin is 1.5Vdc. To turn the module
ON, logic Low is applied to the On/Off pin by turning ON
Q1. When not using the negative logic On/Off, leave
the pin unconnected or tie to GND.
Q1
R1
R2
Q2 CSS
GND
PWM Enable
ON/OFF
VIN+
ON/OFF
_
+
V
I
MODULE
pull-up
R
ON/OFF
Figure 31. Circuit configuration for using negative
logic On/OFF.
Overcurrent Protection
To provide protection in a fault (output overload)
condition, the unit is equipped with internal
current-limiting circuitry and can endure current limiting
continuously. At the point of current-limit inception, the
unit enters hiccup mode. The unit operates normally
once the output current is brought back into its specified
range. The typical average output current during hiccup
is 3.5A.
Input Undervoltage Lockout
At input voltages below the input undervoltage lockout
limit, module operation is disabled. The module will
begin to operate at an input voltage above the
undervoltage lockout turn-on threshold.
Overtemperature Protection
To provide over temperature protection in a fault
condition, the unit relies upon the thermal protection
feature of the controller IC. The unit will shutdown if
the thermal reference point T
ref
, exceeds 140 o C
(typical), but the thermal shutdown is not intended as
a guarantee that the unit will survive temperatures
beyond its rating. The module will automatically
restart after it cools down.
