Data Sheet
October 2, 2009
Austin Minilynx
TM
SIP Non-isolated Power Modules:
2.4Vdc –5.5Vdc input; 0.75Vdc to 3.63Vdc Output;3A Output Current
*
UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS04-040 ver. 1.33
PDF name: minilynx_sip_ds.pdf
Applications
Distributed power architectures
Intermediate bus voltage applications
Telecommunications equipment
Servers and storage applications
Networking equipment
Enterprise Networks
Latest generation IC’s (DSP, FPGA, ASIC)
and Microprocessor powered applications
Features
Compliant to RoHS EU Directive 2002/95/EC (-Z
versions)
Compliant to ROHS EU Directive 2002/95/EC with
lead solder exemption (non-Z versions)
Delivers up to 3A output current
High efficiency – 94% at 3.3V full load (V
IN
= 5.0V)
Small size and low profile:
22.9 mm x 10.2 mm x 6.63 mm
(0.90 in. x 0.40 in. x 0.261 in.)
Low output ripple and noise
High Reliability:
Calculated MTBF = 11.9M hours at 25
o
C Full-load
Constant switching frequency (300 kHz)
Output voltage programmable from 0.75 Vdc to
3.63Vdc via external resistor
Line Regulation: 0.4% (typical)
Load Regulation: 0.4% (typical)
Temperature Regulation: 0.4 % (typical)
Remote On/Off
Output overcurrent protection (non-latching)
Wide operating temperature range (-40°C to
85°C)
UL* 60950-1Recognized, CSA
†
C22.2 No. 60950-1-
03 Certified, and VDE
‡
0805:2001-12 (EN60950-1)
Licensed
ISO** 9001 and ISO 14001 certified manufacturing
facilities
Description

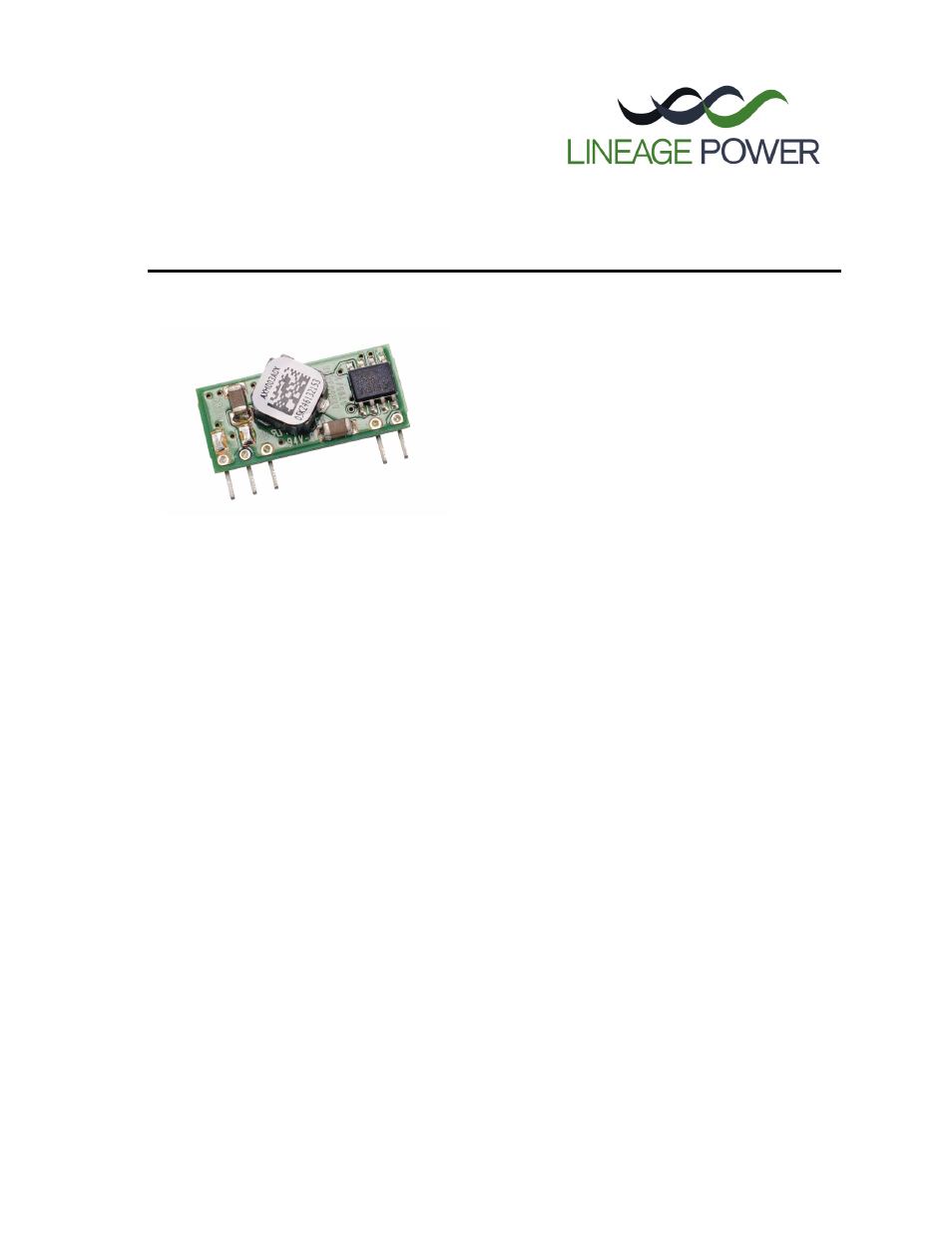

Austin MiniLynx
TM
SIP (single-in-line) power modules are non-isolated DC-DC converters that can deliver up to 3A
of output current with full load efficiency of 94.0% at 3.3V output. These modules provide a precisely regulated
output voltage programmable via an external resistor from 0.75Vdc to 3.63Vdc over a wide range of input voltage
(V
IN
= 2.4 – 5.5Vdc). Their open-frame construction and small footprint enable designers to develop cost- and
space-efficient solutions. In addition to sequencing, standard features include remote On/Off, programmable output
voltage and over current protection.
RoHS Compliant
