COMPACT POWER LINE SHELVES – MODEL J85480S1


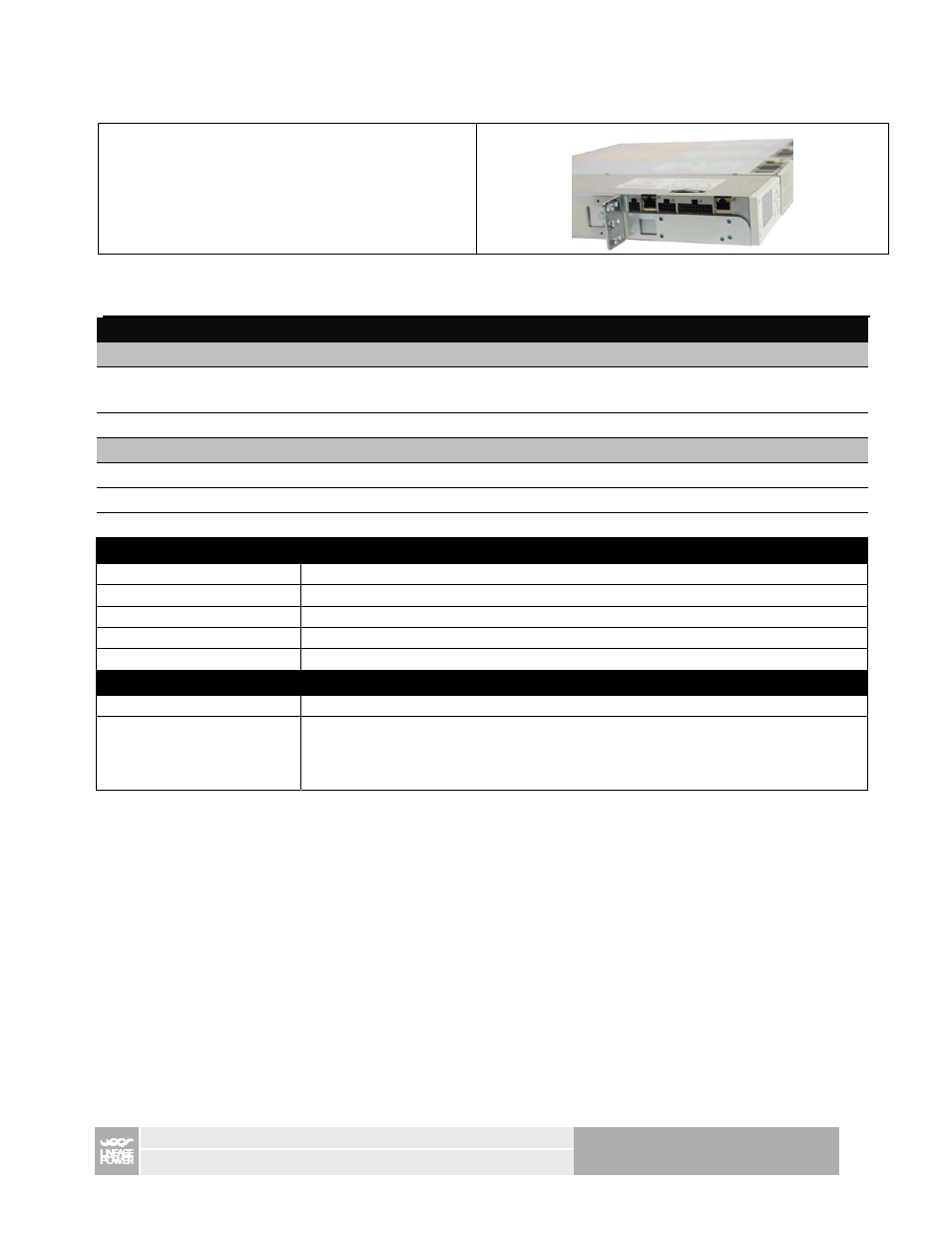

CP843A installs in slot 1 of a J85480S1 List 1 shelf.
Connections to the controller are made on the left side as
shown.
 CP843A controller comes with wire set that plugs into J1
connector to enable the controller.
Specifications
Parameter Min Max Notes
Input
AC Input Current, per module 15A
30A IEC-320, C13 type
AMP Mate-N-Lok connectors
DC Input Current, per module 60A
Output
Programmable output set point 42Vdc 58Vdc Minimum 44Vdc via hardware marginning
Max Output Current J85480S1 200A lugs for 2 ga wires, 2 pairs, 100Amax
Output Terminations M6 threaded studs on 5/8-inch centers.
Environmental
Operating Temperature Range -40°C to 55°C, except J85480 L6, L7, L14 may be used up to 75°C
Operating Relative Humidity 0 - 95% (non-condensing)
Storage Temperature Range -40°C to 85°C
EMC FCC, EN 55022, CISPR22, Level A, conducted and radiated
Immunity FCC and CISPR22 (EN55022) Class A2
Safety/Standards Compliance
Safety Standards UL1950, EN60950 (IEC950), CSA*234/950
Certification Marks Lists 6,7,14: VDE,
UL Recognized (Canada and U.S.)
Lists 1,4,6,9: VDE,
UL Listed (Canada and U.S.)
