COMPACT POWER LINE SHELVES – MODEL J85480S1

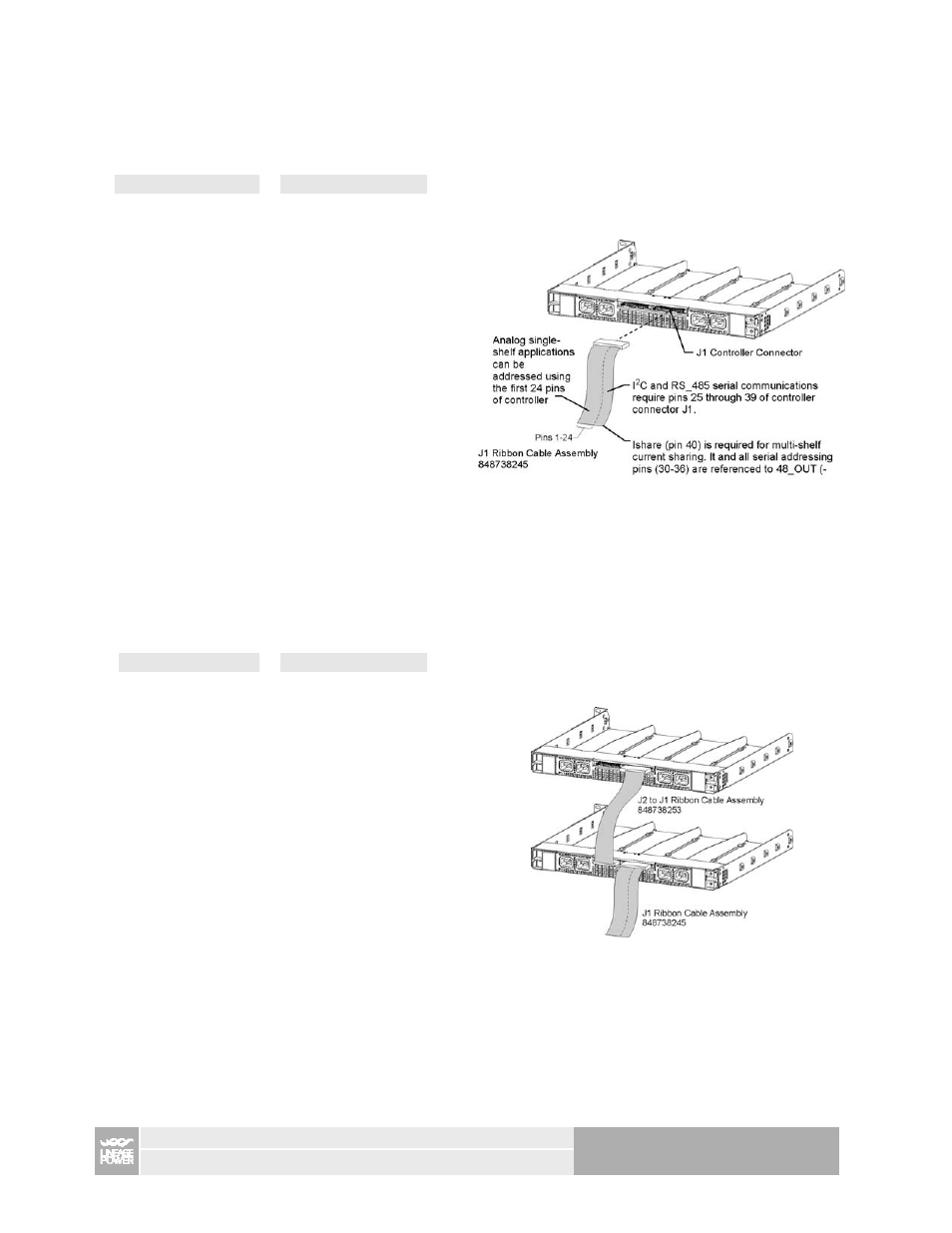

Communication Signals: J1 Connector
Pin out Control Interface Connection (J1 - AMP 499913-9)
Pin Signal Pin Signal
1 POWER_CAP_4 21 Enable side A
2 POWER_CAP_3 22 5VA
3 POWER_CAP_2 23 Logic_GRD
4 POWER_CAP_1 24 Interrupt_1
5 MOD_PRES_4 25 Reset
6 MOD_PRES_3 26 Enable Side B
7 MOD_PRES_2 27 Spacing
8 MOD_PRES_1 28 Spacing
9 PFW_4 29 RS_485_Select
10 PFW_3 30 Shelf_Addr_A
11 PFW_2 31 Shelf_Addr_B
12 PFW_1 32 Shelf_Addr_C
13 SCL_0 33 Shelf_Addr_D
14 SCL_1 34 Shelf_Addr_E
15 SDA_0 35 Shelf_Addr_F
16 SDA_1 36 Shelf_Addr_G
17 OTW 37 Protocol_S
18 Margin 38 RS-485+
19 Fault 39 RS_485-
20 Interrupt_0 40 Ishare
Communication Signals: J2 Connector ( cannot be used in split shelves L7, L9, L14)
Pin out Multi-shelf Connection (J2 – AMP 499913-8)
Pin Signal Pin Signal
1 PFW_4 18 Enable Side B
2 PFW_3 19 Spacing
3 PFW_2 20 Spacing
4 PFW_1 21 RS_485_Select
5 SCL_0 22 Shelf_Addr_B
6 SCL_1 23 Shelf_Addr_C
7 SDA_0 24 Shelf_Addr_D
8 SDA_1 25 Shelf_Addr_E
9 OTW 26 Shelf_Addr_F
10 Margin 27 Shelf_Addr_G
11 Fault 28 Shelf_Addr_H
12 Interrupt_0 29 Protocol_S
13 Enable side A 30 RS-485+
14 5VA 31 RS_485-
15 Logic_GRD 32 Ishare
16 Interrupt_1 33 Spare
17 Reset 34 Spare
Note: Shelf addressing, current share and RS485 communications are all referenced to the most negative
power output Vout(-) of the shelf. For paralleled shelves the Vout(-) terminations must be tied together in order
to ensure proper operation of these functions. Modules could get damaged if this connection is not made. .
