Data Sheet
August 30, 2011
ESTW004A2C Series DC-DC Converter Power Modules
36–75V
dc
Input; 15.0V
dc
/4.2A
dc
Output
LINEAGE POWER 16

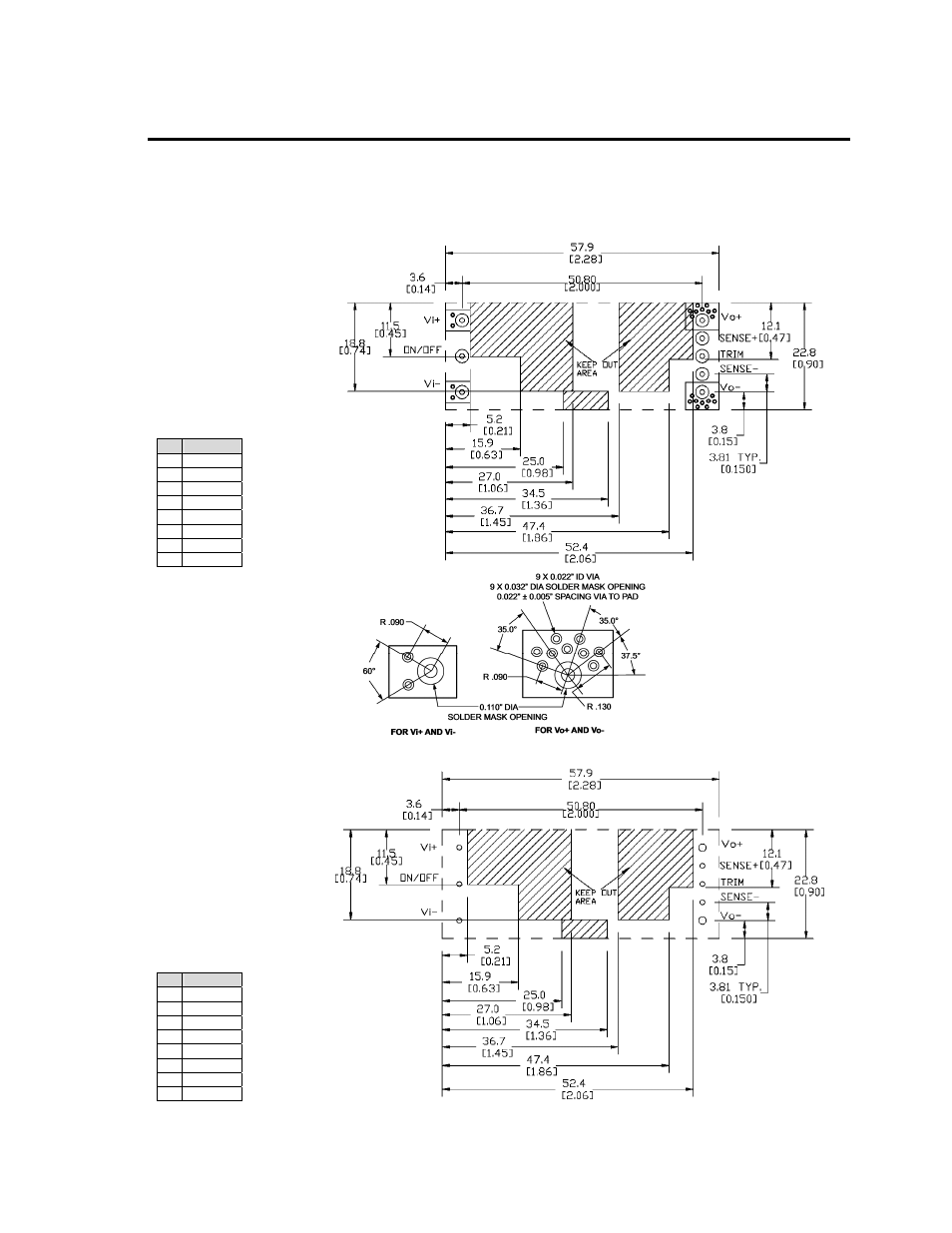

Recommended Pad Layout
Dimensions are in millimeters and [inches].
Tolerances: x.x mm
 0.5 mm [x.xx in.  0.02 in.] (Unless otherwise indicated)
x.xx mm  0.25 mm [x.xxx in  0.010 in.]
Pin Function
1 Vi(+)
2 ON/OFF
3 Vi(-)
4 Vo(-)
5 SENSE(-)
6 TRIM
7 SENSE(+)
8 Vo(+)
SMT Recommended Pad Layout (Component Side View)
Pin Function
1 Vi(+)
2 ON/OFF
3 Vi(-)
4 Vo(-)
5 SENSE(-)
6 TRIM
7 SENSE(+)
8 Vo(+)
NOTES: FOR 0.030” X 0.025” RECTANGULAR PIN, USE 0.050” PLATED THROUGH HOLE DIAMETER
FOR 0.62 DIA” PIN, USE 0.076” PLATED THROUGH HOLE DIAMETER
TH Recommended Pad Layout (Component Side View)
