COMPACT POWER LINE SHELVES – MODEL J85480S1

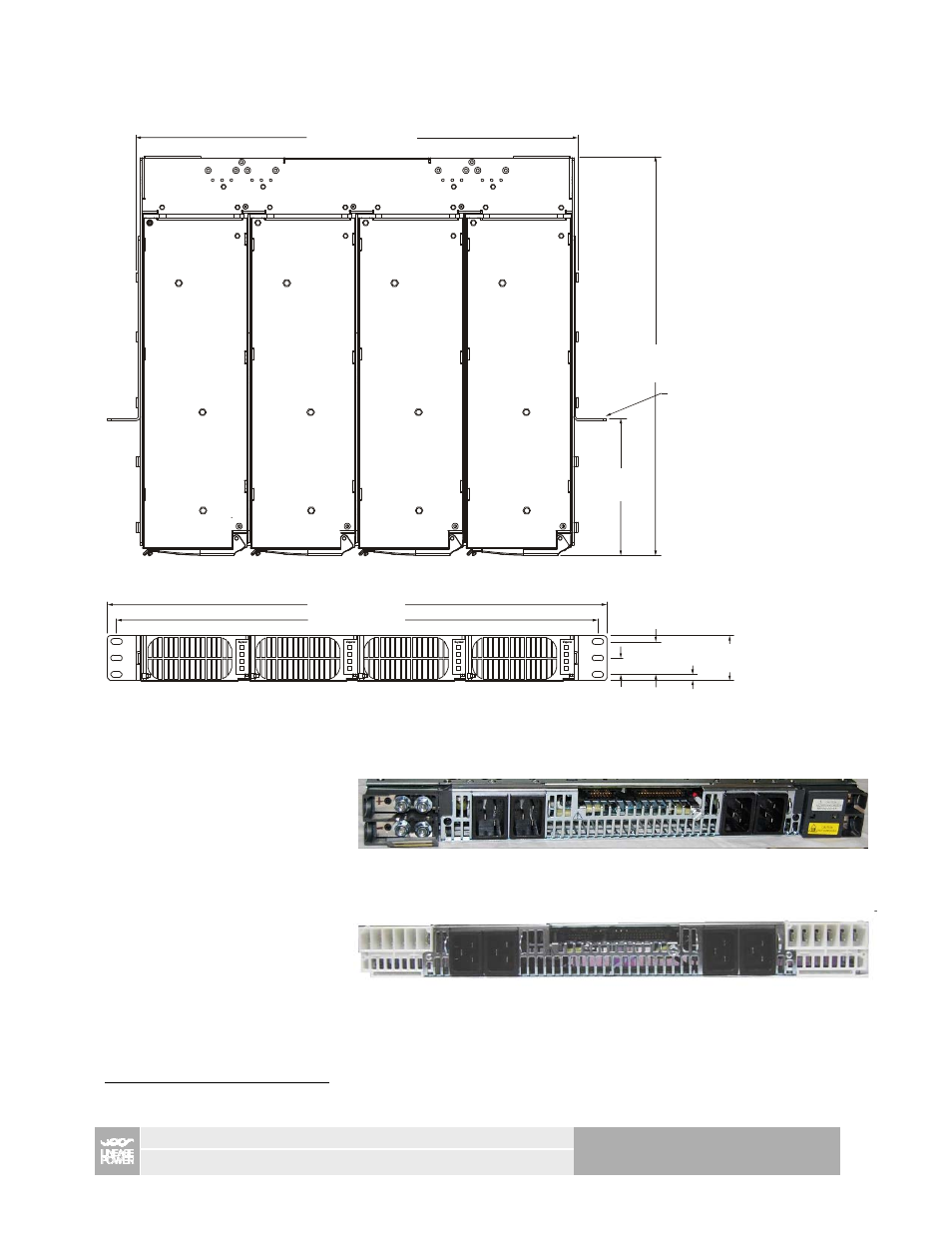

Package Outline
19.00" (483 mm)
0.625"
(15.9 mm)
0.23"
(5.8 mm)
1.25"
(31.8 mm)
1.71"
(43.4 mm)
18.31" (465 mm)
16.81" (427 mm)
5.00"
(127 mm)
17.25"
(413 mm)
Brackets can be relocated
for flush-front mounting.
Rear Views
Lists 20, 21, 22, 23
Lug output terminations
Input:
L22 & L23 IEC320-C14 sockets
1
L20 & L21: IEC320-C20 sockets
DC AC-IN J2 J1 AC-IN DC
Lists 24, 25, 29
Fast-ON output terminations
Input:
L24 - 29: IEC320-C20 sockets
1
The rear view shows the IEC320-C20 socket version product. The C14 sockets are in similar positions.
DC AC-IN J2 J1 AC-IN DC
